Emax
ERVK070003-460

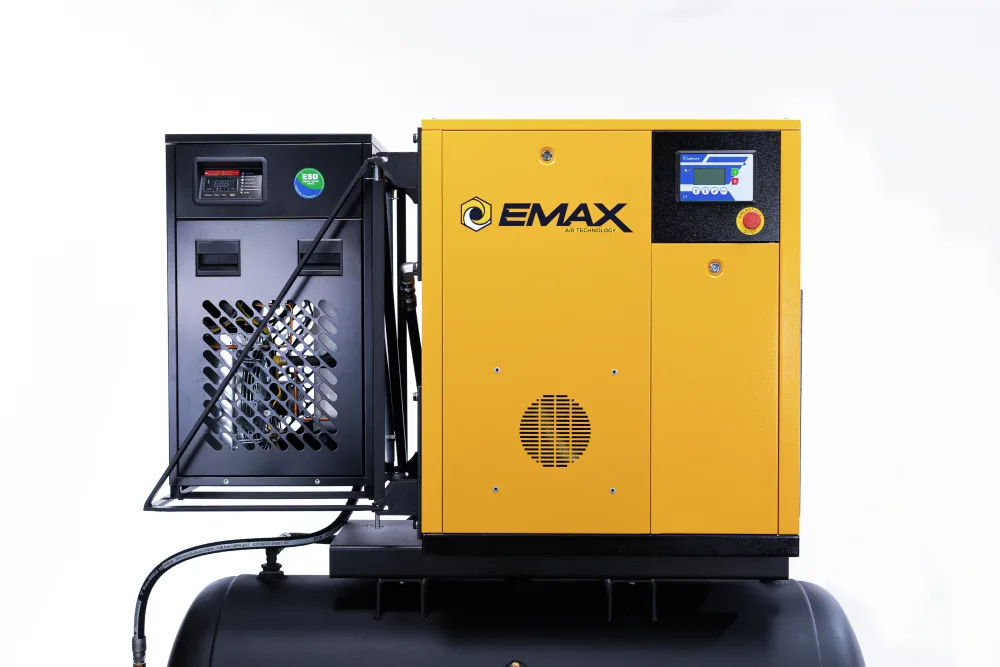

7.5HP 3PH 460V 29CFM Rotary Screw Swing Arm :: 30CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses
$16,816free shipping
Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.
Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.
7.5
HP
29
CFM
145
Max PSI
- 7.5 HP · 460V 3-phase
- 29 CFM

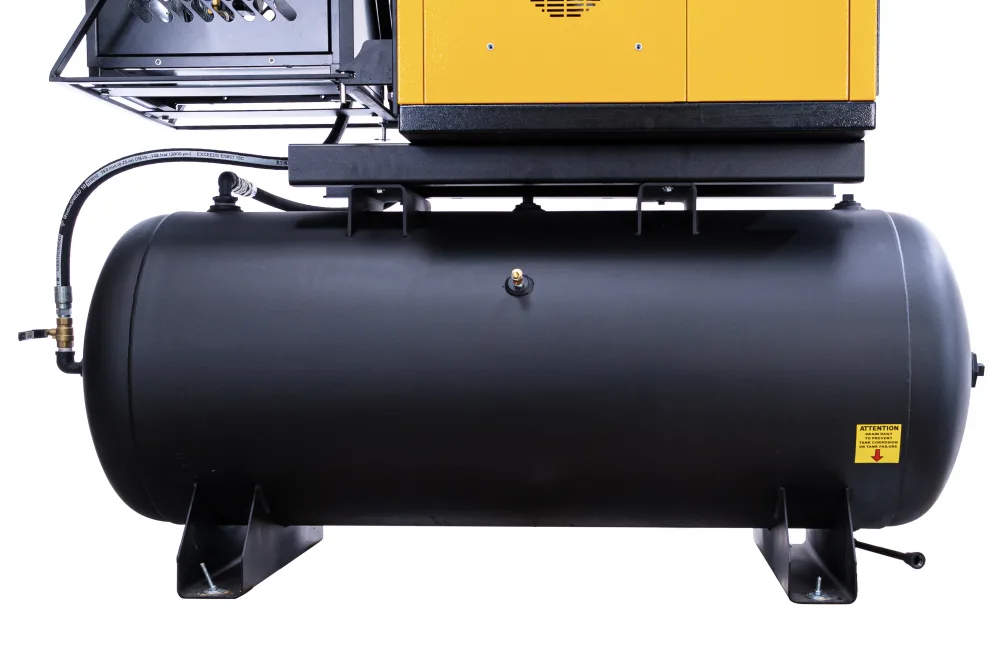

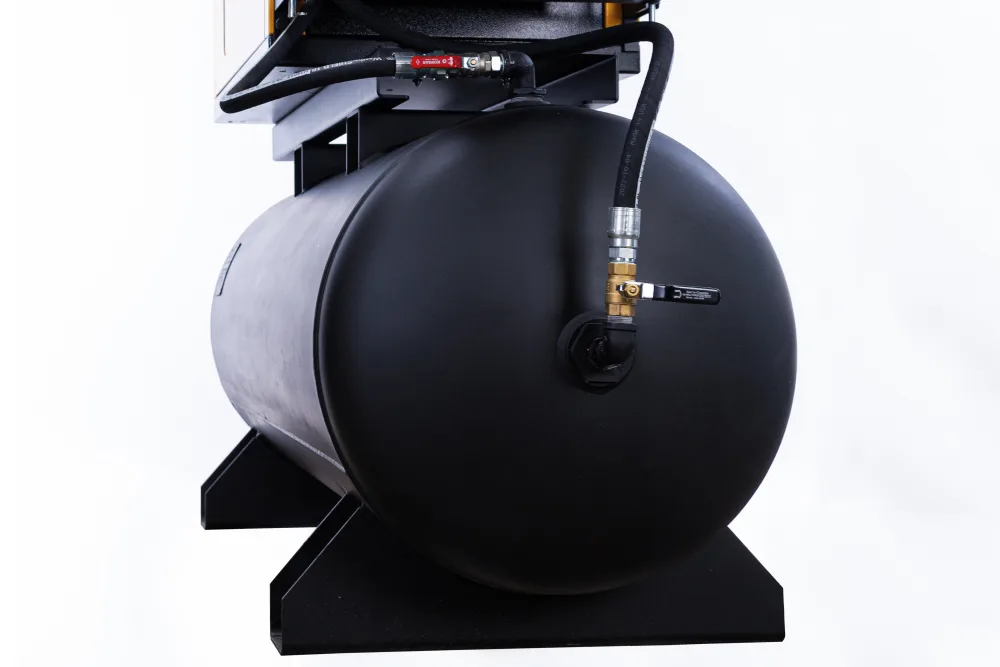

- 120-gal horizontal tank
About this unit
This 7.5HP three-phase delivers 29 CFM at 145 PSI from a 120-gallon horizontal tank.
About the Emax rotary screw line
Built for shops that need air all day. These oil-injected screw air ends run up to 100% duty cycle with life expectancy up to 150,000 hours, delivering the steady, continuous airflow piston units can't. Variable speed drive means the motor works only as hard as your demand.
Full specifications
25 specs
| HP | 7.5 |
|---|---|
| CFM | 29.00 |
| Phase | 3 |
| Brands | EMAX |
| Max PSI | 145.00 |
| Oil U/M | Gallons |
| Motor RPM | 1750.00 |
| Tank Size | 120 |
| Belt Count | 2 |
| Drive Type | Electric |
| Motor Type | TEFC |
| Pump Stage | 1 |
| Tank Drain | Automatic |
| Service Kit | SKIT001AWB |
|---|---|
| Oil Capacity | 1.33 |
| Certifications | UL/CSE |
| Compressor Type | ROTARY |
| Uncrated Weight | 660.00 |
| Voltage +/- 10% | 460 |
| Tank Orientation | Horizontal |
| Locked Rotor Amps | 66.20 |
| Peak Starting Amps | 66.20 |
| Recommended Breaker | 10.00 |
| FLA + 1.15 Service Factor | 10.40 |
| Estimated Pump Life (Hours) | 100000.00 |
Manuals
