7.5HP 3PH 208V 29CFM Rotary Screw Swing Arm :: 30CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses7.5HP 3PH 208V 29CFM Rotary Screw Swing Arm :: 30CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses, view 27.5HP 3PH 208V 29CFM Rotary Screw Swing Arm :: 30CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses, view 37.5HP 3PH 208V 29CFM Rotary Screw Swing Arm :: 30CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses, view 47.5HP 3PH 208V 29CFM Rotary Screw Swing Arm :: 30CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses, view 5
Emax

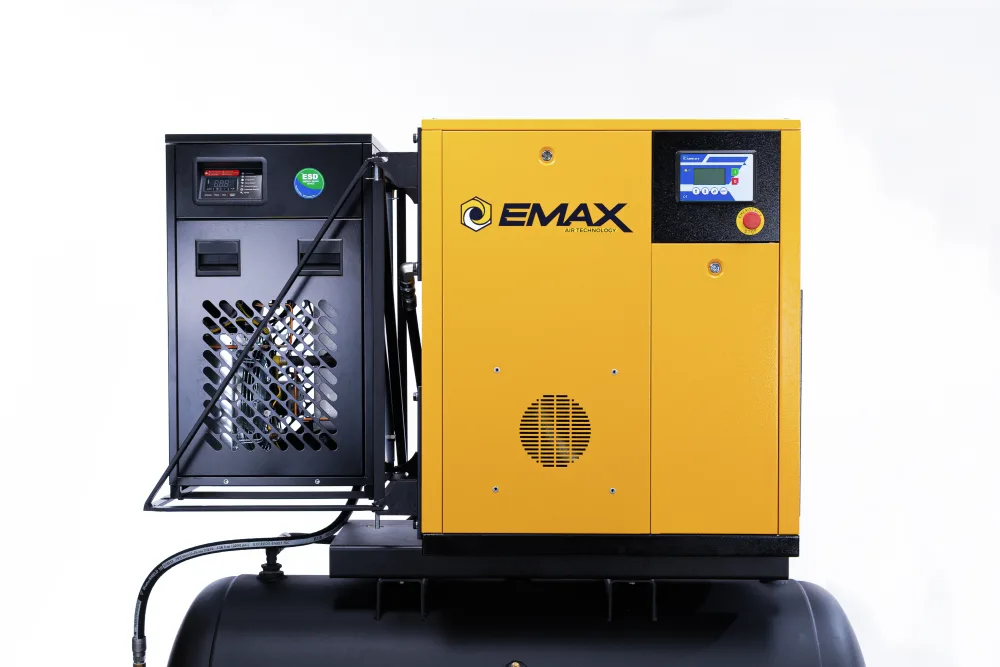

7.5HP 3PH 208V 29CFM Rotary Screw Swing Arm :: 30CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses

  • Model ERVK070003-208
  • 7.5 HP · 230V 3-phase
  • 29 CFM

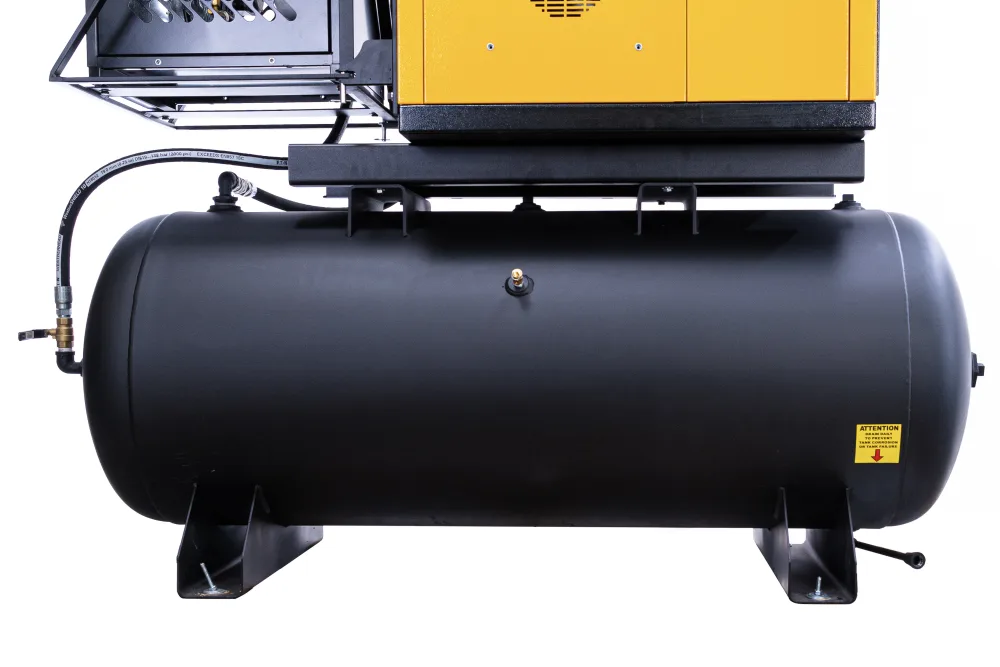

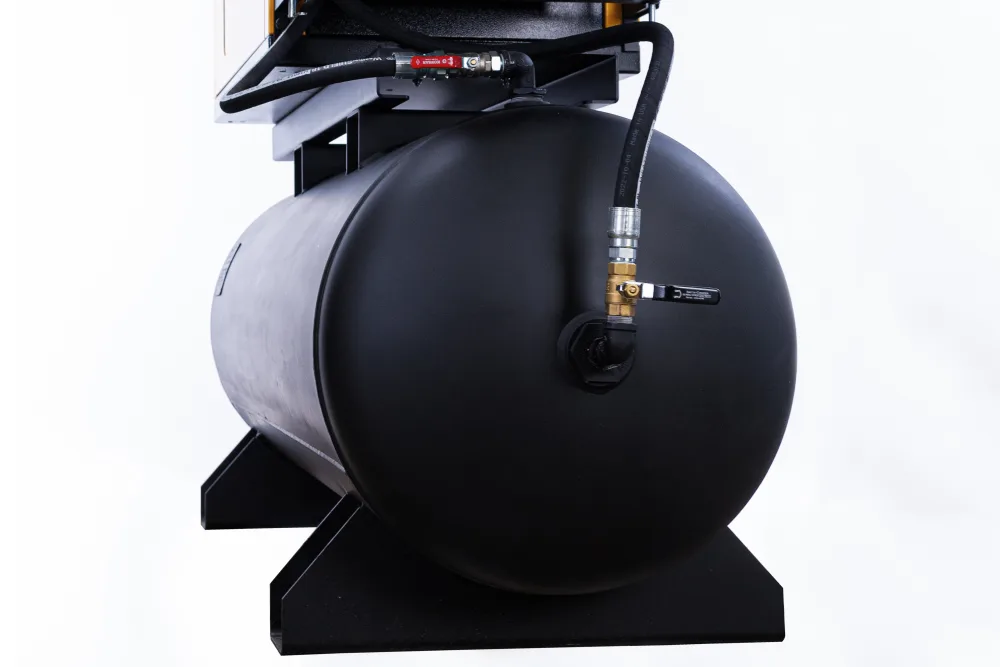

  • 120-gal horizontal tank
$17,007free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 7.5HP three-phase delivers 29 CFM at 145 PSI from a 120-gallon horizontal tank.

About the Emax rotary screw line

Built for shops that need air all day. These oil-injected screw air ends run up to 100% duty cycle with life expectancy up to 150,000 hours, delivering the steady, continuous airflow piston units can't. Variable speed drive means the motor works only as hard as your demand.

Full specifications

26 specs
HP7.5
CFM29.00
Phase3
BrandsEMAX
Max PSI145.00
Oil U/MGallons
Motor RPM1750.00
Tank Size120
Belt Count2
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Tank DrainAutomatic
Outlet Size1"
Service KitSKIT001AWB
Oil Capacity1.33
CertificationsUL/CSE
Compressor TypeROTARY
Uncrated Weight660.00
Voltage +/- 10%230
Tank OrientationHorizontal
Locked Rotor Amps132.00
Peak Starting Amps132.00
Recommended Breaker25.00
FLA + 1.15 Service Factor21.60
Estimated Pump Life (Hours)100000.00
