60HP 3 Phase Variable Speed Rotary Screw Air Compressor - 261CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only60HP 3 Phase Variable Speed Rotary Screw Air Compressor - 261CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 260HP 3 Phase Variable Speed Rotary Screw Air Compressor - 261CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 360HP 3 Phase Variable Speed Rotary Screw Air Compressor - 261CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 460HP 3 Phase Variable Speed Rotary Screw Air Compressor - 261CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 5
Emax

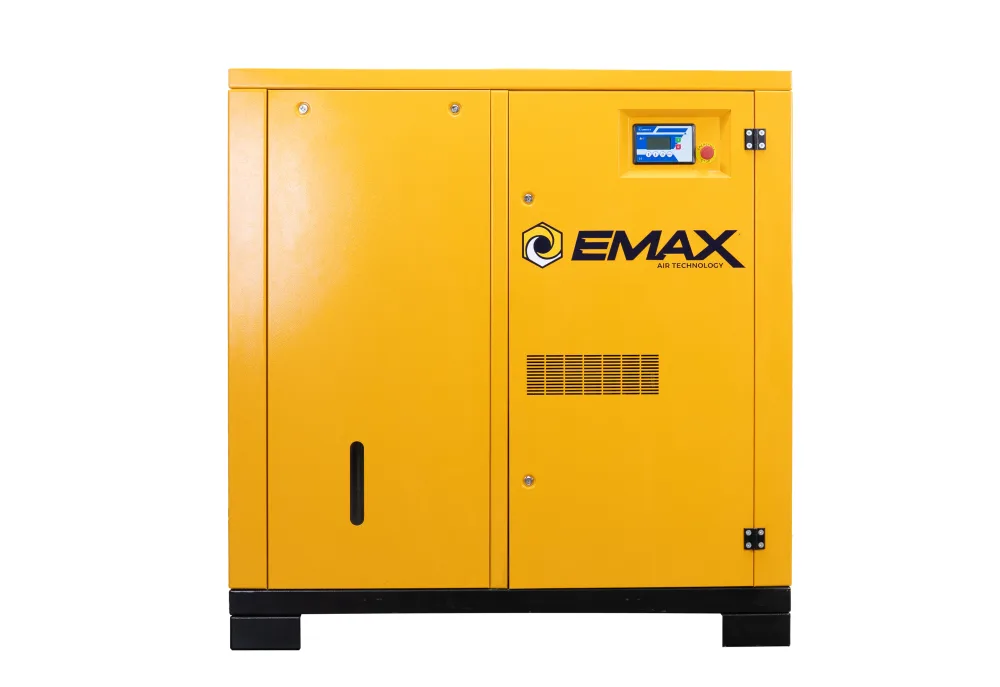

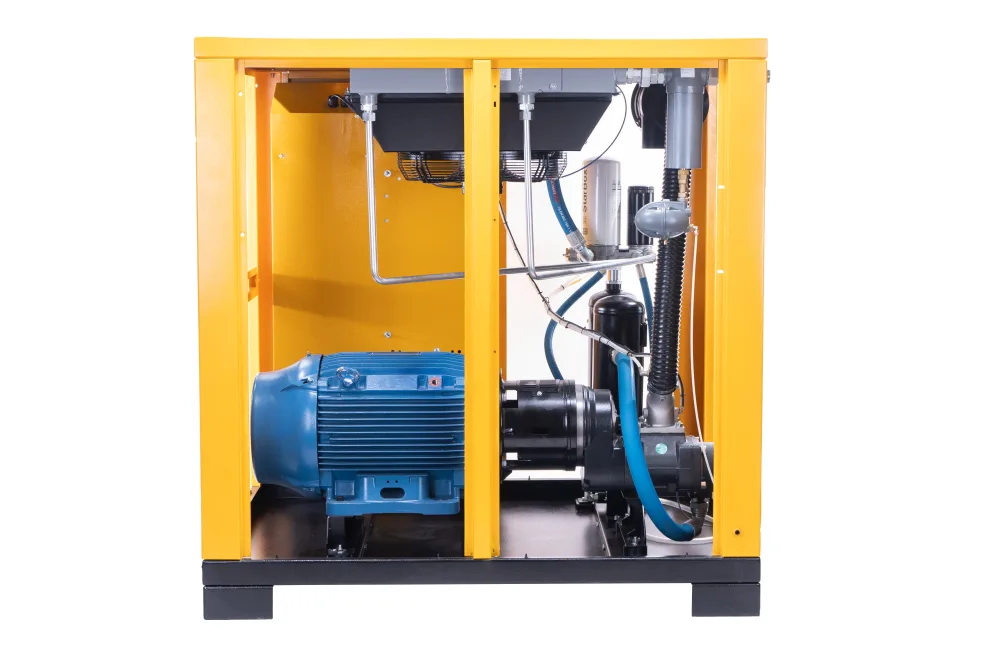

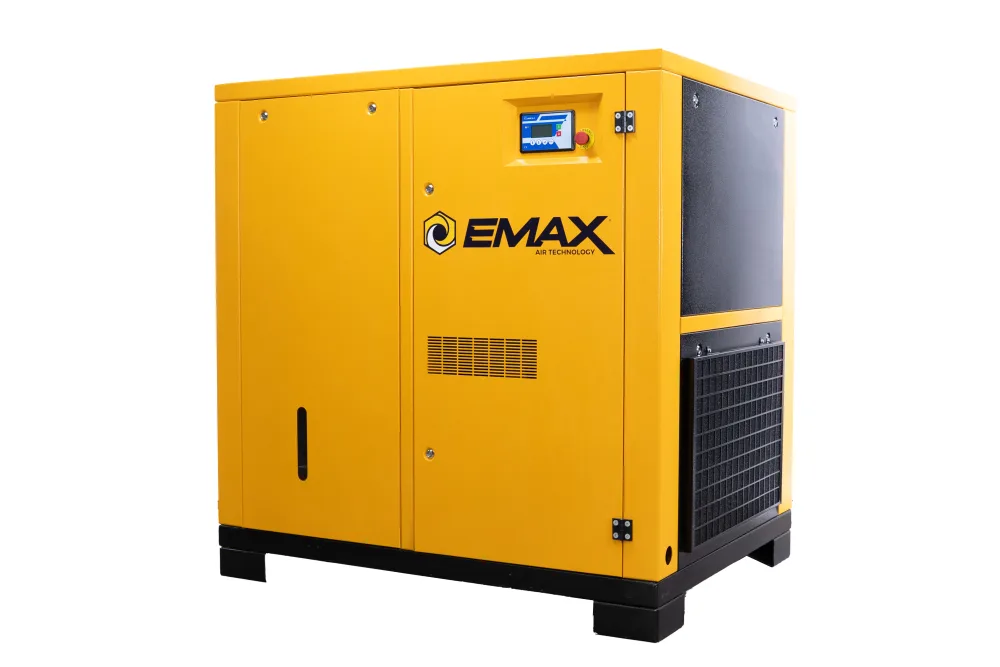

60HP 3 Phase Variable Speed Rotary Screw Air Compressor - 261CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only

  • Model ERV0600003D-208
  • 60 HP · 230V 3-phase
  • 261 CFM
  • Smart Air™ PLC controls + remote monitoring
$39,546free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 60HP three-phase delivers 261 CFM at 167 PSI.

Smart Air technology

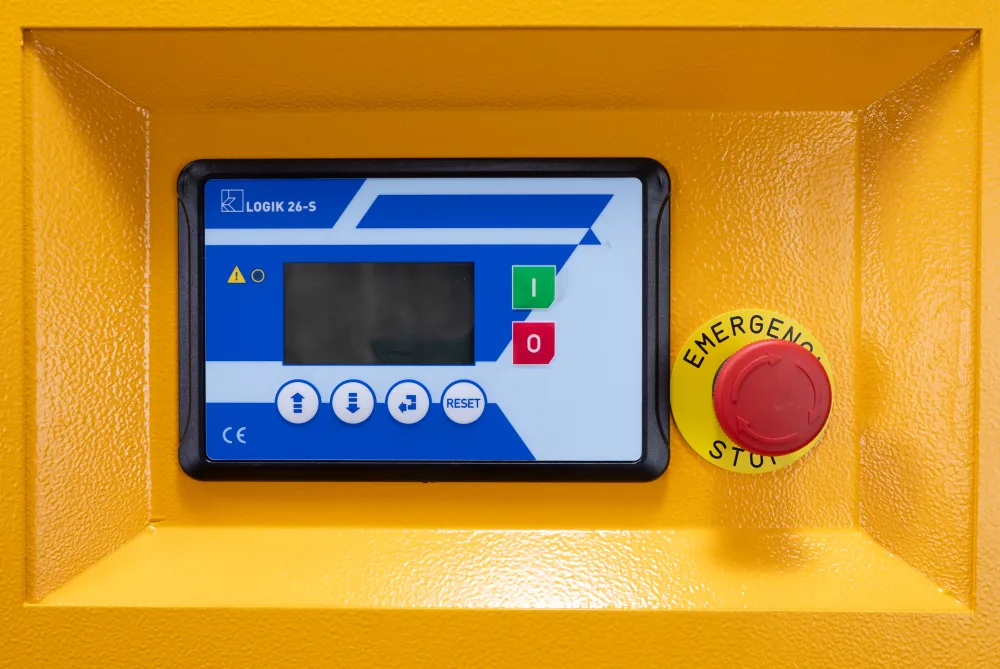

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

Full specifications

29 specs
HP60
CFM261.00
Phase3
BrandsEMAX
Max PSI167.00
Oil U/MGallons
Motor RPM1750.00
Smart AirYes
Belt CountDirect Drive
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Service KitSKIT029WB
Crated Width56
Oil Capacity4.50
Crated Height70
Crated Length86
CertificationsUL/CSE
Uncrated Width50
Compressor TypeROTARY
Uncrated Height65
Uncrated Length67
Uncrated Weight2450.00
Voltage +/- 10%230
Locked Rotor Amps888.00
Peak Starting Amps888.00
Recommended Breaker190.00
FLA + 1.15 Service Factor172.50
Estimated Pump Life (Hours)100000.00
