Emax

15HP 3PH 208V 62CFM Rotary Screw Swing Arm :: 115CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses

  • Model ERVK150003-208
  • 15 HP · 230V 3-phase
  • 62 CFM
  • 120-gal horizontal tank
  • Smart Air™ PLC controls + remote monitoring
$21,755free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

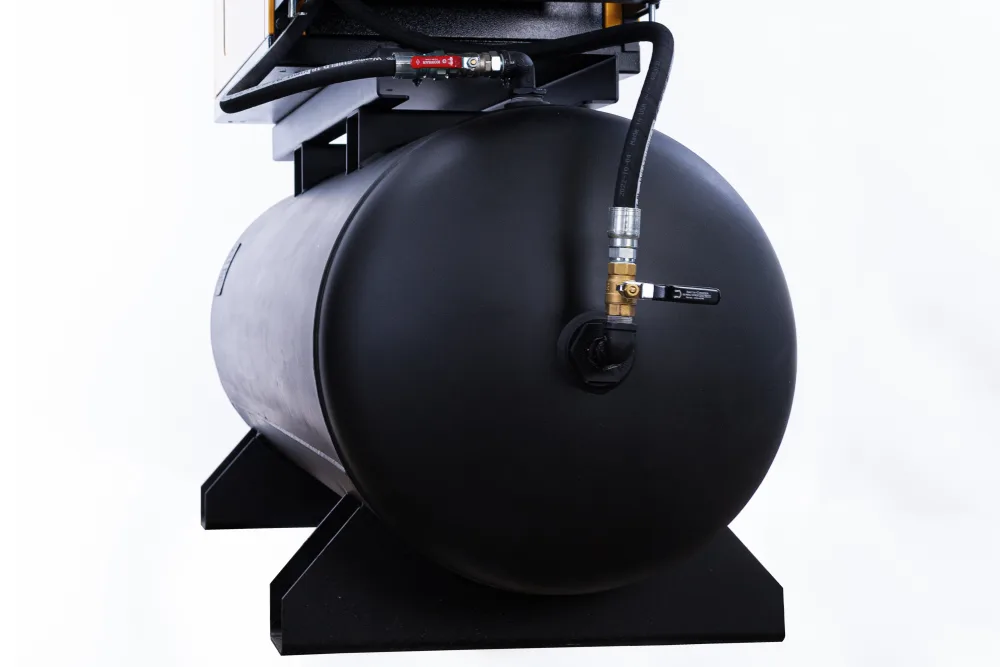

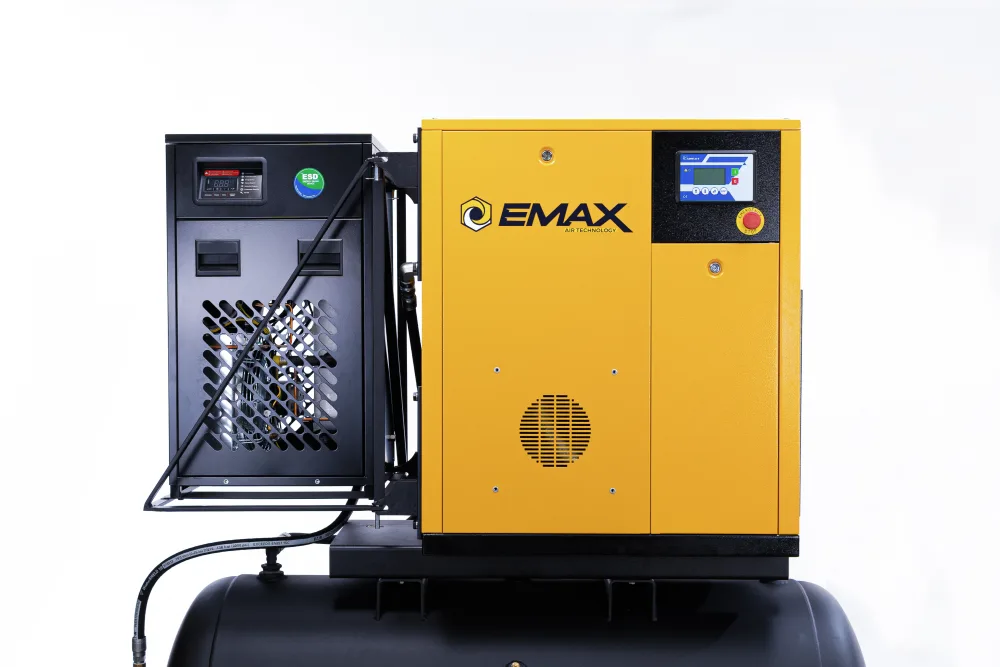

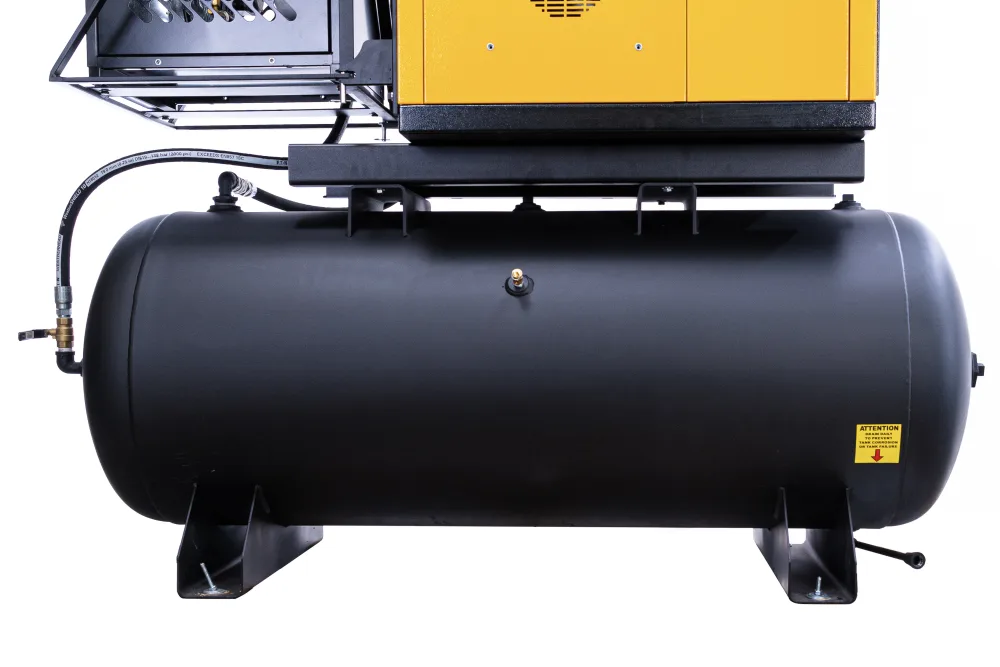

This 15HP three-phase delivers 62 CFM at 167 PSI from a 120-gallon horizontal tank.

Smart Air technology

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

Full specifications

28 specs
HP15
CFM62
Phase3
BrandsEMAX
Max PSI167
Oil U/MGallons
Motor RPM1750
Smart AirYes
Tank Size120
Belt Count2
Drive TypeElectric
Duty Cycle1
Motor TypeTEFC
Pump Stage1
Tank DrainAutomatic
Outlet Size1"
Service KitSKIT003WB
Oil Capacity1.5
CertificationsUL/CSE
Compressor TypeROTARY
Uncrated Weight880
Voltage +/- 10%230
Tank OrientationHorizontal
Locked Rotor Amps237
Peak Starting Amps237
Recommended Breaker50
FLA + 1.15 Service Factor43.1
Estimated Pump Life (Hours)100000
