20HP 3PH 208V 86CFM Rotary Screw Swing Arm :: 115CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses20HP 3PH 208V 86CFM Rotary Screw Swing Arm :: 115CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses, view 220HP 3PH 208V 86CFM Rotary Screw Swing Arm :: 115CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses, view 320HP 3PH 208V 86CFM Rotary Screw Swing Arm :: 115CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses, view 420HP 3PH 208V 86CFM Rotary Screw Swing Arm :: 115CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses, view 5
Emax

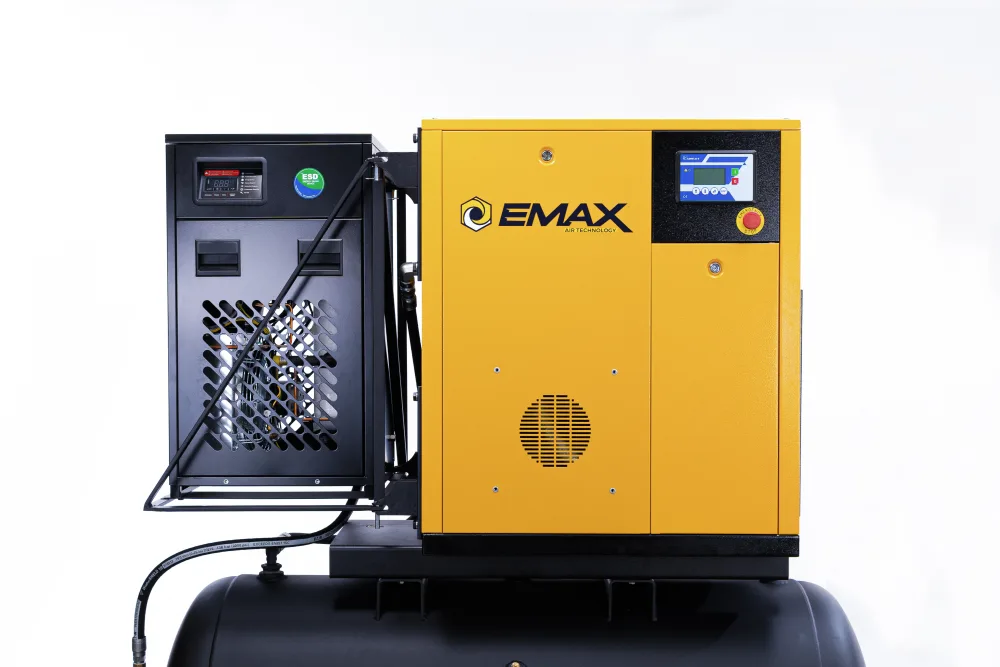

20HP 3PH 208V 86CFM Rotary Screw Swing Arm :: 115CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses

  • Model ERVK200003-208
  • 20 HP · 230V 3-phase
  • 85 CFM

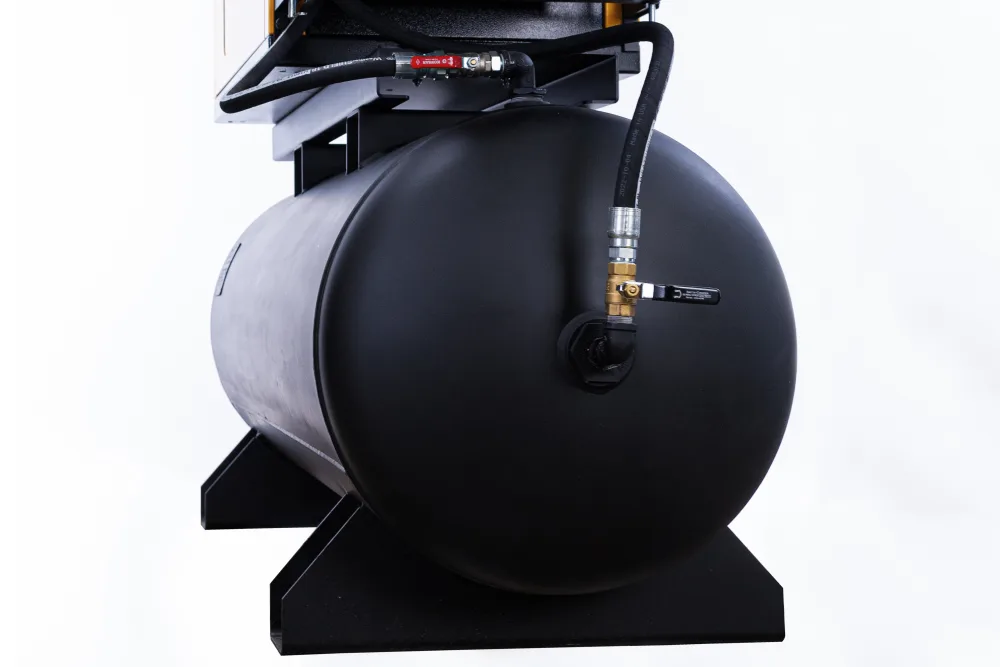

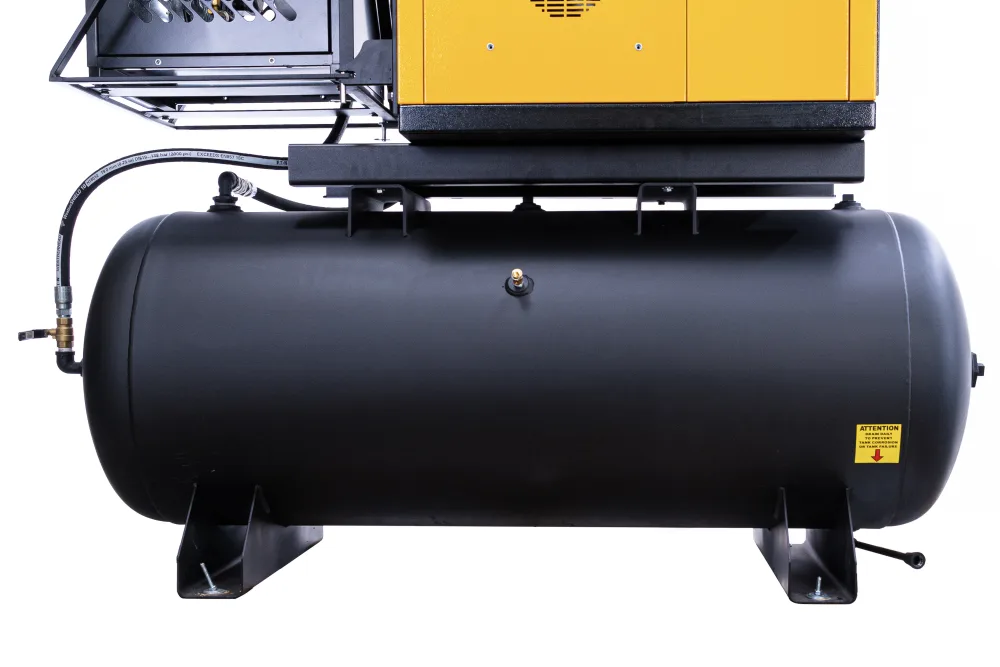

  • 120-gal horizontal tank
  • Smart Air™ PLC controls + remote monitoring
$22,952free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 20HP three-phase delivers 85 CFM at 167 PSI from a 120-gallon horizontal tank.

Smart Air technology

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

Full specifications

30 specs
HP20
CFM85.00
Phase3
BrandsEMAX
Max PSI167.00
Oil U/MGallons
Motor RPM1750.00
Smart AirYes
Tank Size120
Belt Count3
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Tank DrainAutomatic
Outlet Size1"
Service KitSKIT003WB
Crated Width50
Oil Capacity1.50
Crated Height87
Crated Length85
Crated Weight1835.00
CertificationsUL/CSE
Compressor TypeROTARY
Voltage +/- 10%230
Tank OrientationHorizontal
Locked Rotor Amps331.00
Peak Starting Amps331.00
Recommended Breaker65.00
FLA + 1.15 Service Factor57.50
Estimated Pump Life (Hours)100000.00
