40HP 3 Phase Variable Speed Rotary Screw Air Compressor - 188CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only40HP 3 Phase Variable Speed Rotary Screw Air Compressor - 188CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 240HP 3 Phase Variable Speed Rotary Screw Air Compressor - 188CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 340HP 3 Phase Variable Speed Rotary Screw Air Compressor - 188CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 440HP 3 Phase Variable Speed Rotary Screw Air Compressor - 188CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 5
Emax

40HP 3 Phase Variable Speed Rotary Screw Air Compressor - 188CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only

  • Model ERV0400003D-208
  • 40 HP · 230V 3-phase
  • 188 CFM
  • Smart Air™ PLC controls + remote monitoring
$29,046free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 40HP three-phase delivers 188 CFM at 167 PSI.

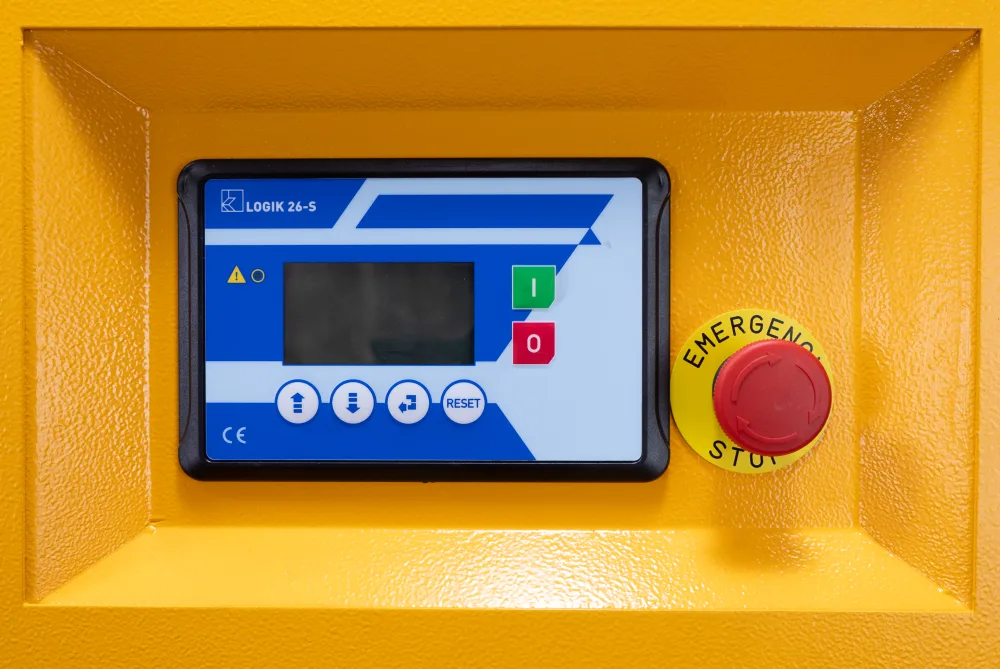

Smart Air technology

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

Full specifications

27 specs
HP40
CFM188.00
Phase3
BrandsEMAX
Max PSI167.00
Oil U/MGallons
Motor RPM1750.00
Smart AirYes
Belt CountDirect Drive
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Service KitSKIT028WB
Crated Width50
Oil Capacity3.70
Crated Height65
Crated Length64
Crated Weight2086.00
CertificationsUL/CSE
Compressor TypeROTARY
Uncrated Weight2250.00
Voltage +/- 10%230
Locked Rotor Amps575.00
Peak Starting Amps575.00
Recommended Breaker125.00
FLA + 1.15 Service Factor115.00
Estimated Pump Life (Hours)100000.00

Manuals
