20HP 3 Phase Variable Speed Rotary Screw Air Compressor - 85 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only20HP 3 Phase Variable Speed Rotary Screw Air Compressor - 85 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 220HP 3 Phase Variable Speed Rotary Screw Air Compressor - 85 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 320HP 3 Phase Variable Speed Rotary Screw Air Compressor - 85 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 420HP 3 Phase Variable Speed Rotary Screw Air Compressor - 85 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 5
Emax

20HP 3 Phase Variable Speed Rotary Screw Air Compressor - 85 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only

  • Model ERV0200003-460
  • 20 HP · 460V 3-phase
  • 85 CFM
  • Smart Air™ PLC controls + remote monitoring
$16,057free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 20HP three-phase delivers 85 CFM at 167 PSI.

Smart Air technology

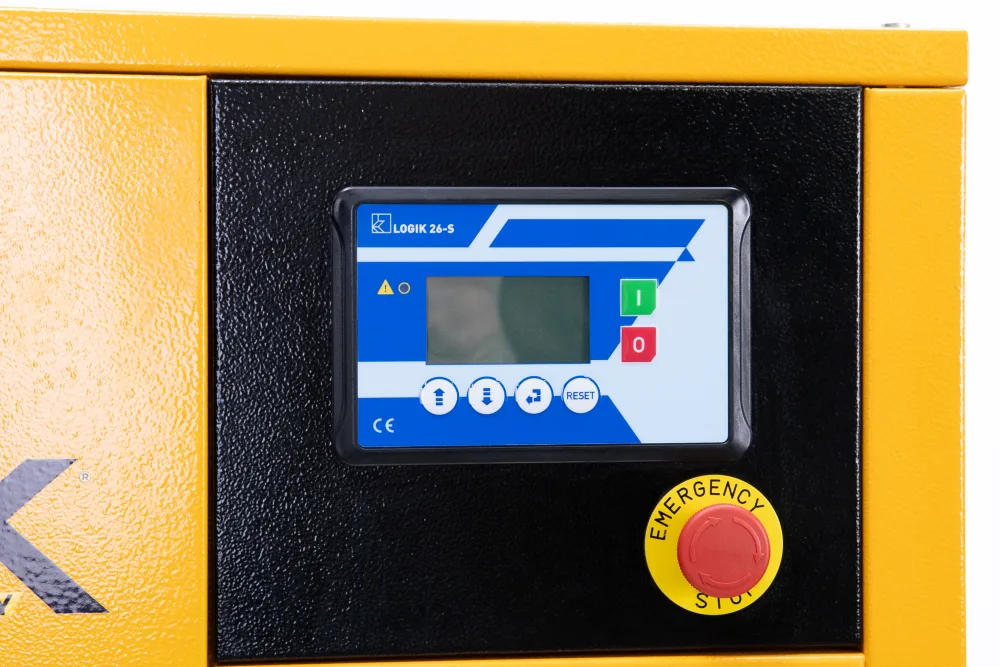

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

Full specifications

29 specs
HP20
CFM85.00
Phase3
BrandsEMAX
Max PSI167.00
Oil U/MGallons
Motor RPM1750.00
Smart AirYes
Belt Count3
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Service KitSKIT003WB
Crated Width58
Oil Capacity1.50
Crated Height55
Crated Length55
CertificationsUL/CSE
Uncrated Width31
Compressor TypeROTARY
Uncrated Height49
Uncrated Length38
Uncrated Weight880.00
Voltage +/- 10%460
Locked Rotor Amps165.00
Peak Starting Amps165.00
Recommended Breaker30.00
FLA + 1.15 Service Factor27.60
Estimated Pump Life (Hours)100000.00
