Emax
ERVK150003-230

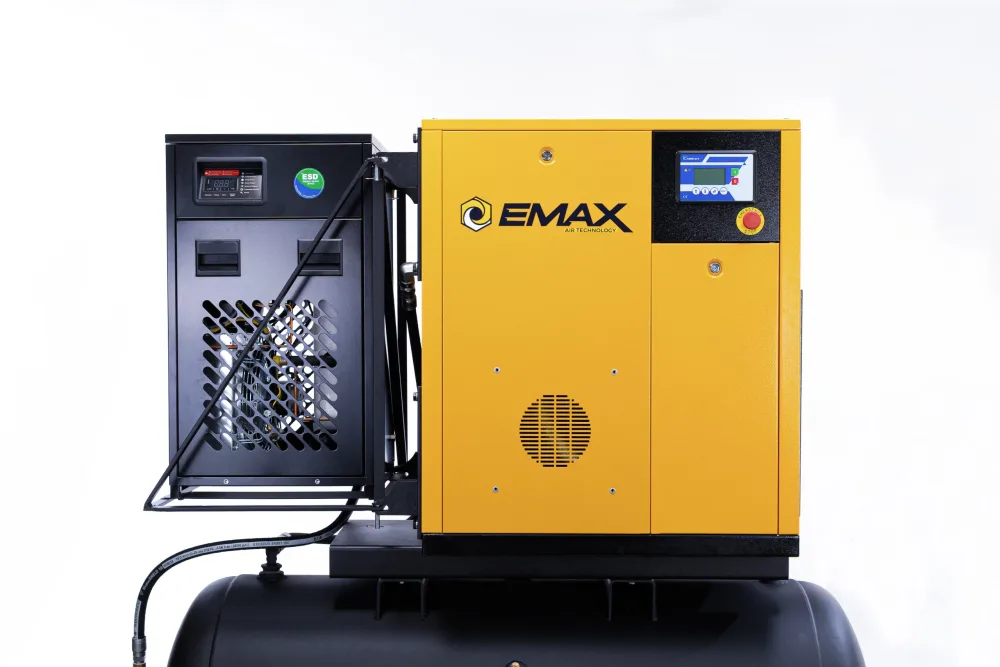

15HP 3PH 208V 62CFM Rotary Screw Swing Arm :: 115CFM Dryer :: 120 Gallon Horizontal Tank - Matte Black w/ Auto Drain & Hydraulic Hoses
$21,755
Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.
Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.
15
HP
62
CFM
167
Max PSI
- 15 HP · 230V 3-phase
- 62 CFM
- 120-gal horizontal tank
- Smart Air™ PLC controls + remote monitoring
About this unit
This 15HP three-phase delivers 62 CFM at 167 PSI from a 120-gallon horizontal tank.
Smart Air technology
The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.
Full specifications
27 specs
| HP | 15 |
|---|---|
| CFM | 62.00 |
| Phase | 3 |
| Brands | EMAX |
| Max PSI | 167.00 |
| Oil U/M | Gallons |
| Motor RPM | 1750.00 |
| Smart Air | Yes |
| Tank Size | 120 |
| Belt Count | 2 |
| Drive Type | Electric |
| Motor Type | TEFC |
| Pump Stage | 1 |
| Tank Drain | Automatic |
| Outlet Size | 1" |
|---|---|
| Service Kit | SKIT003WB |
| Oil Capacity | 1.50 |
| Certifications | UL/CSE |
| Compressor Type | ROTARY |
| Uncrated Weight | 880.00 |
| Voltage +/- 10% | 230 |
| Tank Orientation | Horizontal |
| Locked Rotor Amps | 237.00 |
| Peak Starting Amps | 237.00 |
| Recommended Breaker | 50.00 |
| FLA + 1.15 Service Factor | 43.10 |
| Estimated Pump Life (Hours) | 100000.00 |
