50HP 3 Phase Variable Speed Rotary Screw Air Compressor - 235CFM Industrial Air Compressor, 2460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only50HP 3 Phase Variable Speed Rotary Screw Air Compressor - 235CFM Industrial Air Compressor, 2460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 250HP 3 Phase Variable Speed Rotary Screw Air Compressor - 235CFM Industrial Air Compressor, 2460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 350HP 3 Phase Variable Speed Rotary Screw Air Compressor - 235CFM Industrial Air Compressor, 2460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 450HP 3 Phase Variable Speed Rotary Screw Air Compressor - 235CFM Industrial Air Compressor, 2460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 5
Emax

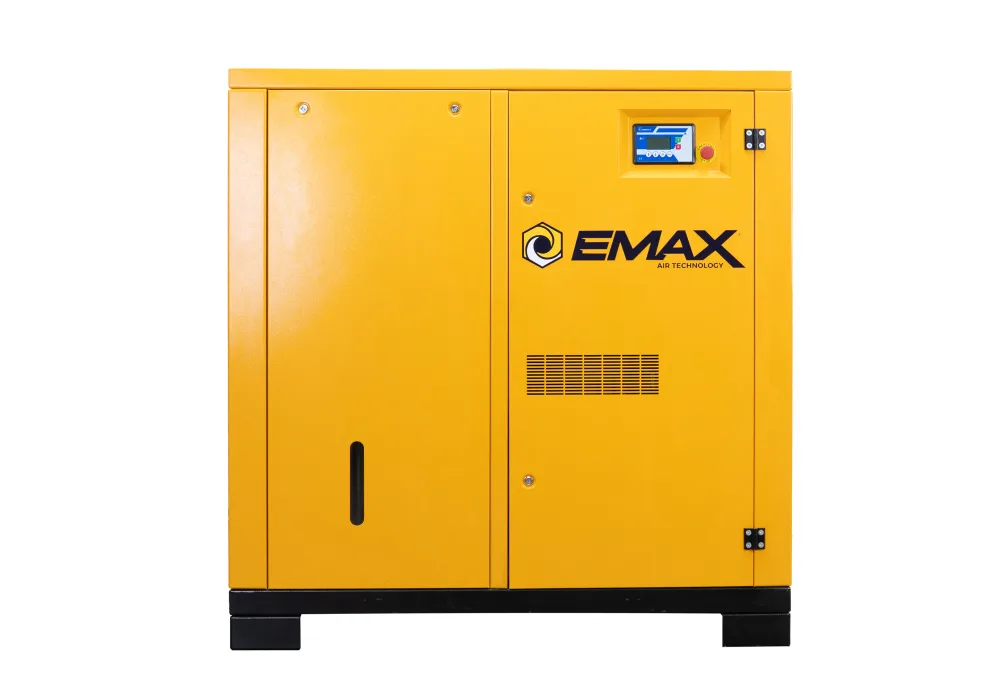

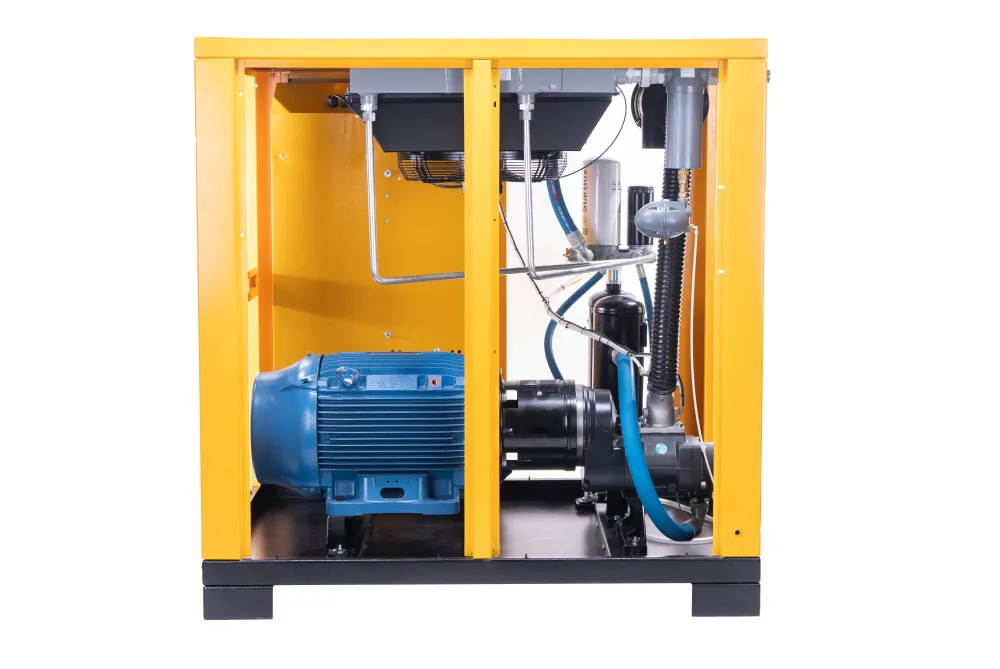

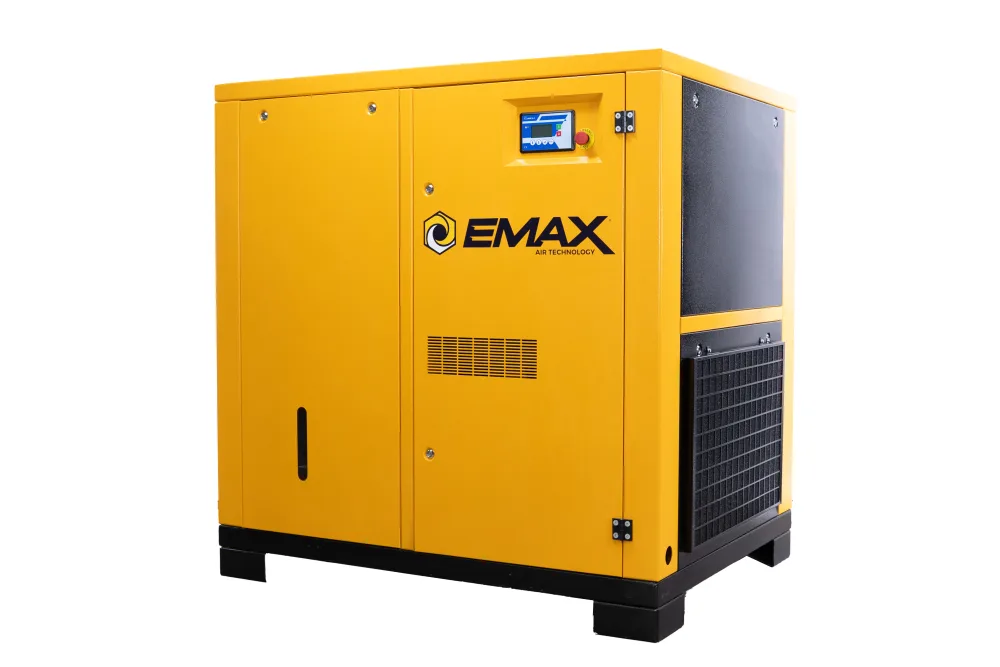

50HP 3 Phase Variable Speed Rotary Screw Air Compressor - 235CFM Industrial Air Compressor, 2460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only

  • Model ERV0500003D-460
  • 50 HP · 460V 3-phase
  • 235 CFM
  • Smart Air™ PLC controls + remote monitoring
$33,084free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 50HP three-phase delivers 235 CFM at 167 PSI.

Smart Air technology

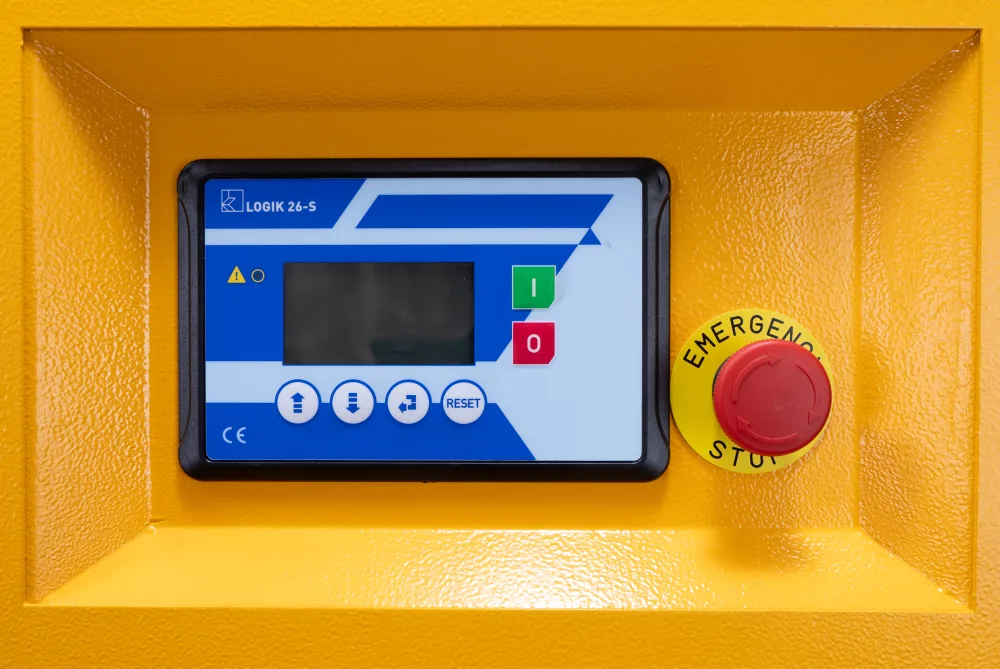

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

Full specifications

29 specs
HP50
CFM235.00
Phase3
BrandsEMAX
Max PSI167.00
Oil U/MGallons
Motor RPM1750.00
Smart AirYes
Belt CountDirect Drive
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Service KitSKIT029WB
Crated Width56
Oil Capacity4.50
Crated Height70
Crated Length86
CertificationsUL/CSE
Uncrated Width50
Compressor TypeROTARY
Uncrated Height65
Uncrated Length67
Uncrated Weight2350.00
Voltage +/- 10%460
Locked Rotor Amps367.00
Peak Starting Amps367.00
Recommended Breaker65.00
FLA + 1.15 Service Factor57.50
Estimated Pump Life (Hours)100000.00
