Emax

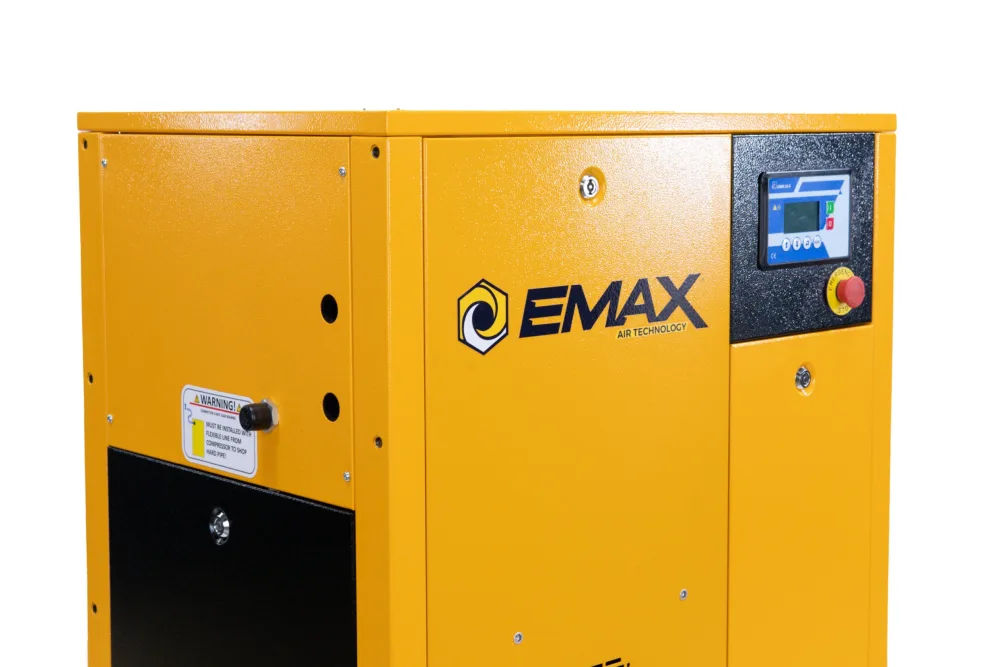

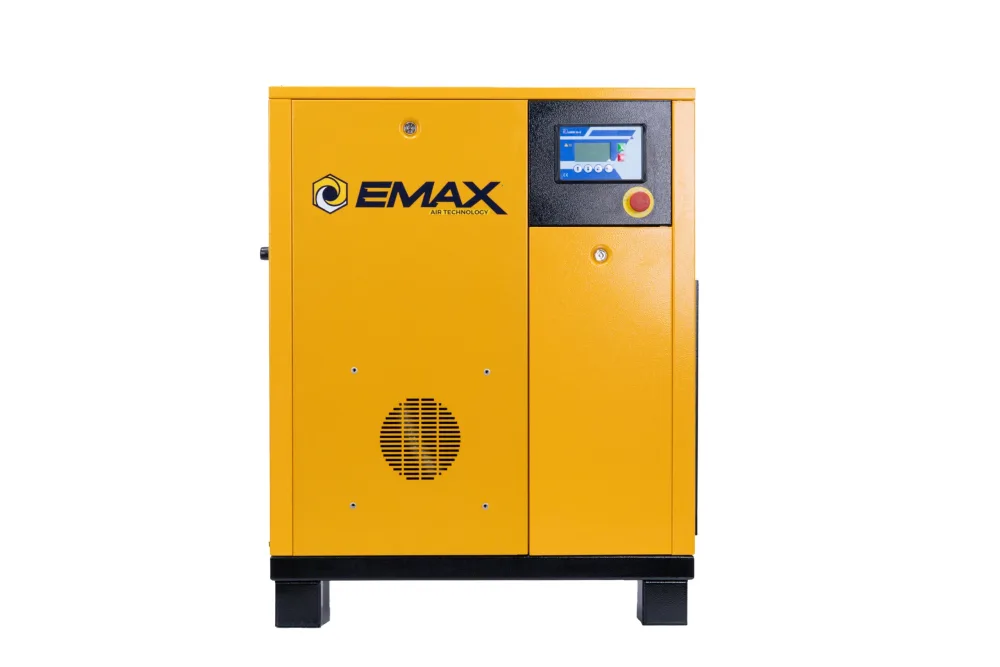

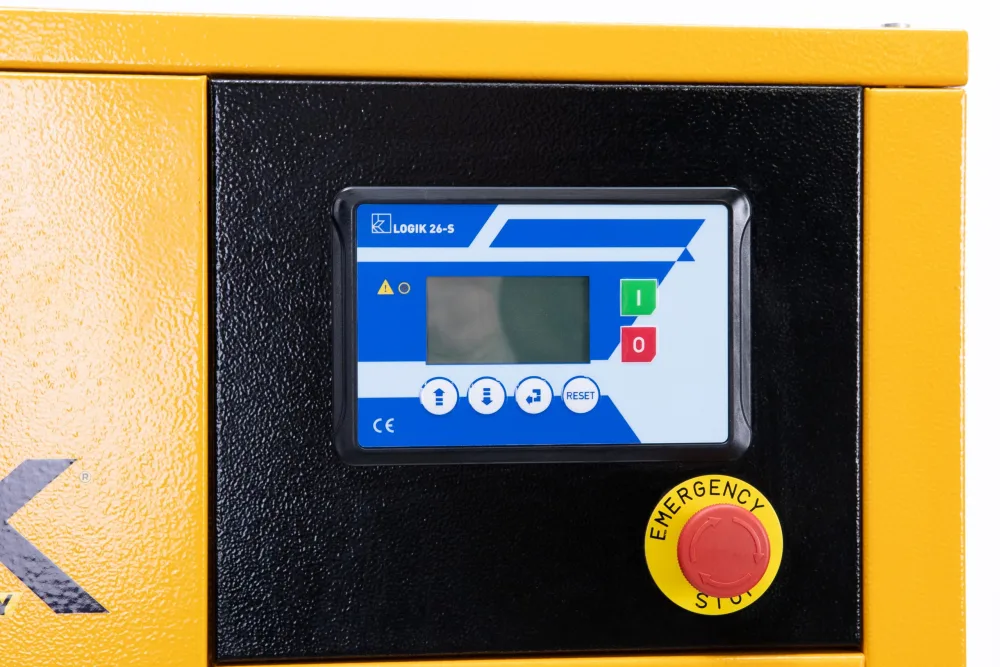

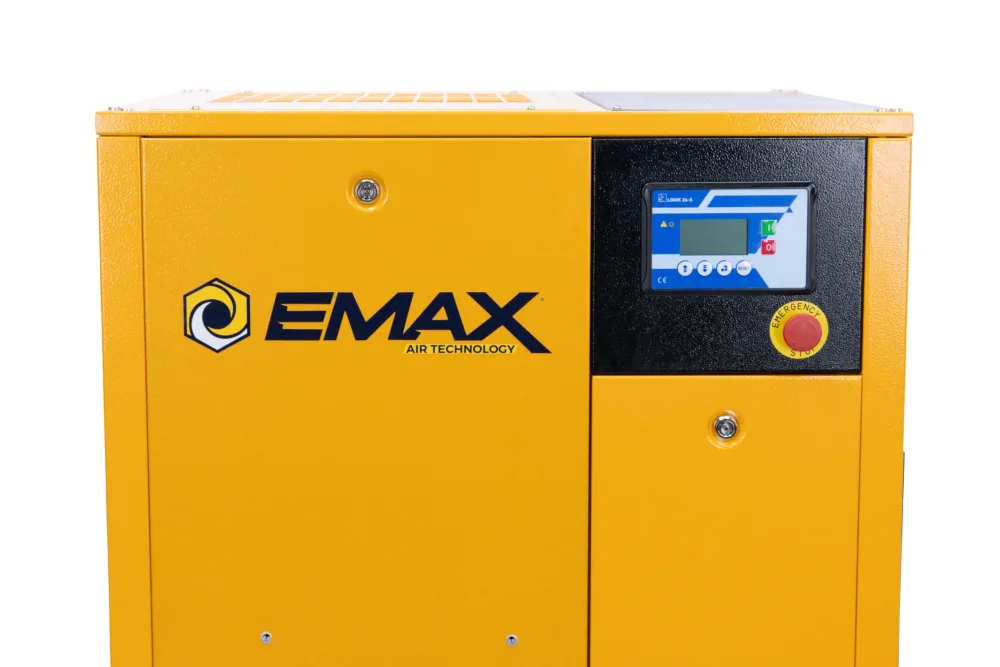

10HP 3 Phase Variable Speed Rotary Screw Air Compressor -45CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only

  • Model ERV0100003-230
  • 10 HP · 230V 3-phase
  • 45 CFM
$12,344
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 10HP three-phase delivers 45 CFM at 145 PSI.

About the Emax rotary screw line

Built for shops that need air all day. These oil-injected screw air ends run up to 100% duty cycle with life expectancy up to 150,000 hours, delivering the steady, continuous airflow piston units can't. Variable speed drive means the motor works only as hard as your demand.

Full specifications

29 specs
HP10
CFM45.00
Phase3
BrandsEMAX
Max PSI145.00
Oil U/MGallons
Motor RPM1750.00
Belt Count2
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Service KitSKIT001AWB
Crated Width48
Oil Capacity1.33
Crated Height48
Crated Length43
Crated Weight603.00
CertificationsUL/CSE
Uncrated Width24
Compressor TypeROTARY
Uncrated Height42
Uncrated Length33
Uncrated Weight660.00
Voltage +/- 10%230
Locked Rotor Amps171.00
Peak Starting Amps171.00
Recommended Breaker30.00
FLA + 1.15 Service Factor28.80
Estimated Pump Life (Hours)100000.00
