5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 20CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 20CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 25HP 3 Phase Variable Speed Rotary Screw Air Compressor - 20CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 35HP 3 Phase Variable Speed Rotary Screw Air Compressor - 20CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 45HP 3 Phase Variable Speed Rotary Screw Air Compressor - 20CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 5
Emax

5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 20CFM Industrial Air Compressor, 208V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only

  • Model ERV0050003-230
  • 5 HP · 208V 3-phase
  • 20 CFM
  • Smart Air™ PLC controls + remote monitoring
$11,256
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 5HP three-phase delivers 20 CFM at 167 PSI.

Smart Air technology

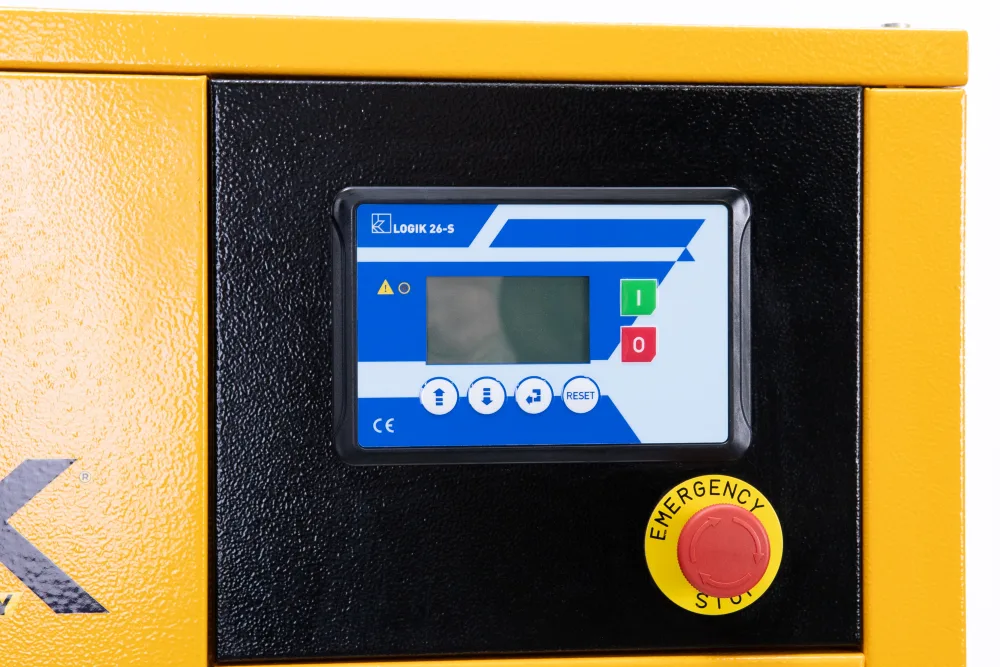

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

Full specifications

29 specs
HP5
CFM20.00
Phase3
BrandsEMAX
Max PSI167.00
Oil U/MGallons
Motor RPM1750.00
Smart AirYes
Belt Count1
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Service KitSKIT001AWB
Crated Width43
Oil Capacity1.33
Crated Height49
Crated Length48
CertificationsUL/CSE
Uncrated Width25
Compressor TypeROTARY
Uncrated Height41
Uncrated Length34
Uncrated Weight562.00
Voltage +/- 10%208
Locked Rotor Amps90.90
Peak Starting Amps90.90
Recommended Breaker15.00
FLA + 1.15 Service Factor14.40
Estimated Pump Life (Hours)100000.00
