7.5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 29 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only7.5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 29 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 27.5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 29 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 37.5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 29 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 47.5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 29 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only, view 5
Emax

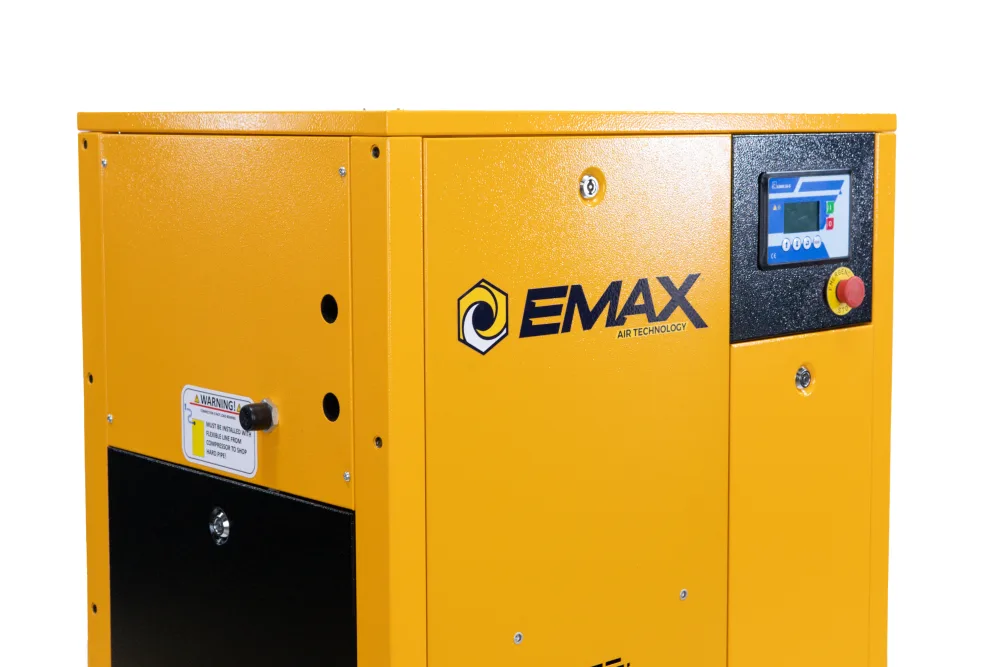

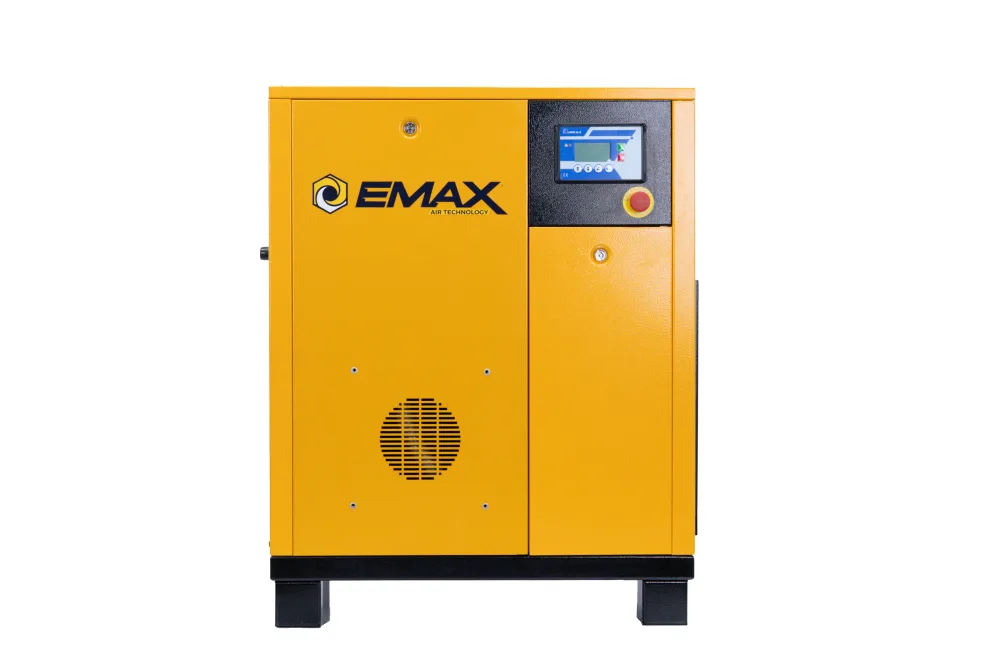

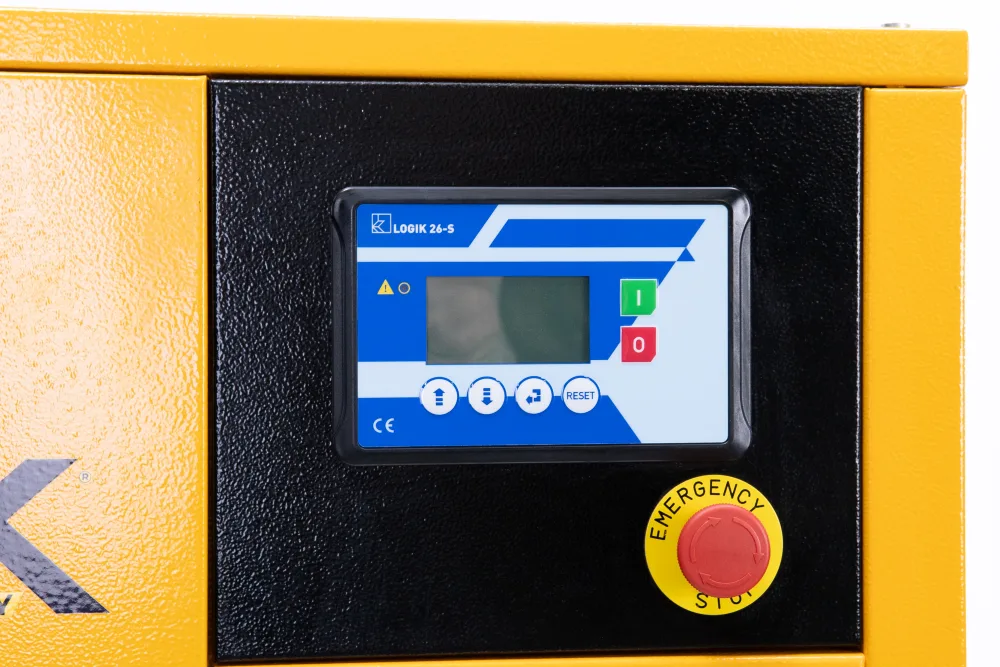

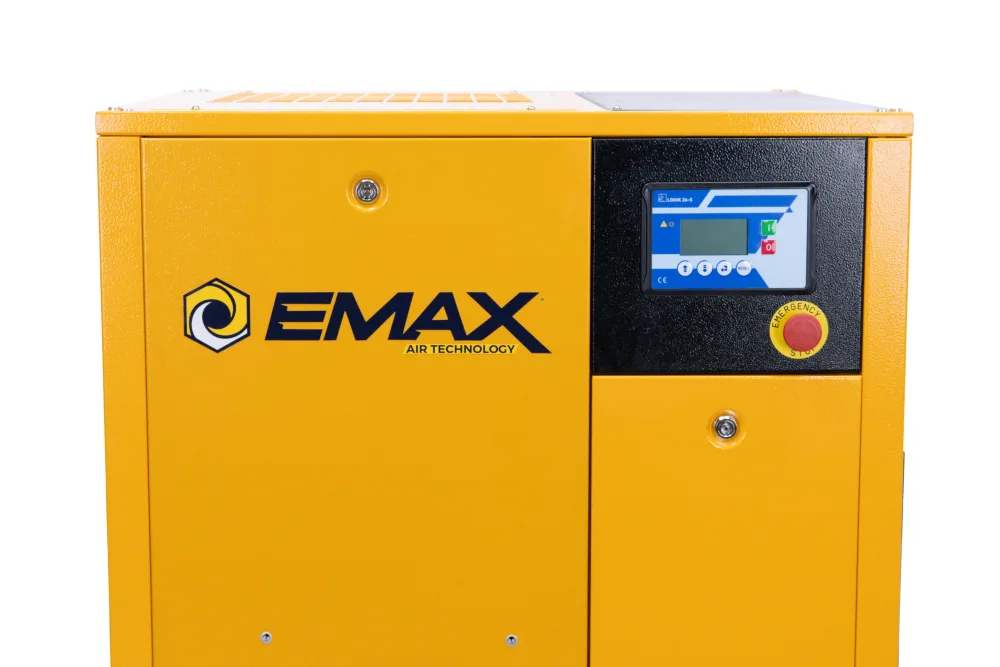

7.5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 29 CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only

  • Model ERV0070003-460
  • 7.5 HP · 460V 3-phase
  • 29 CFM
$11,914free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

About this unit

This 7.5HP three-phase delivers 29 CFM at 145 PSI.

About the Emax rotary screw line

Built for shops that need air all day. These oil-injected screw air ends run up to 100% duty cycle with life expectancy up to 150,000 hours, delivering the steady, continuous airflow piston units can't. Variable speed drive means the motor works only as hard as your demand.

Full specifications

28 specs
HP7.5
CFM29.00
Phase3
BrandsEMAX
Max PSI145.00
Oil U/MGallons
Motor RPM1750.00
Belt Count2
Drive TypeElectric
Motor TypeTEFC
Pump Stage1
Service KitSKIT001AWB
Crated Width43
Oil Capacity1.33
Crated Height49
Crated Length48
CertificationsUL/CSE
Uncrated Width24
Compressor TypeROTARY
Uncrated Height42
Uncrated Length33
Uncrated Weight660.00
Voltage +/- 10%460
Locked Rotor Amps66.20
Peak Starting Amps66.20
Recommended Breaker10.00
FLA + 1.15 Service Factor10.40
Estimated Pump Life (Hours)100000.00

Manuals
