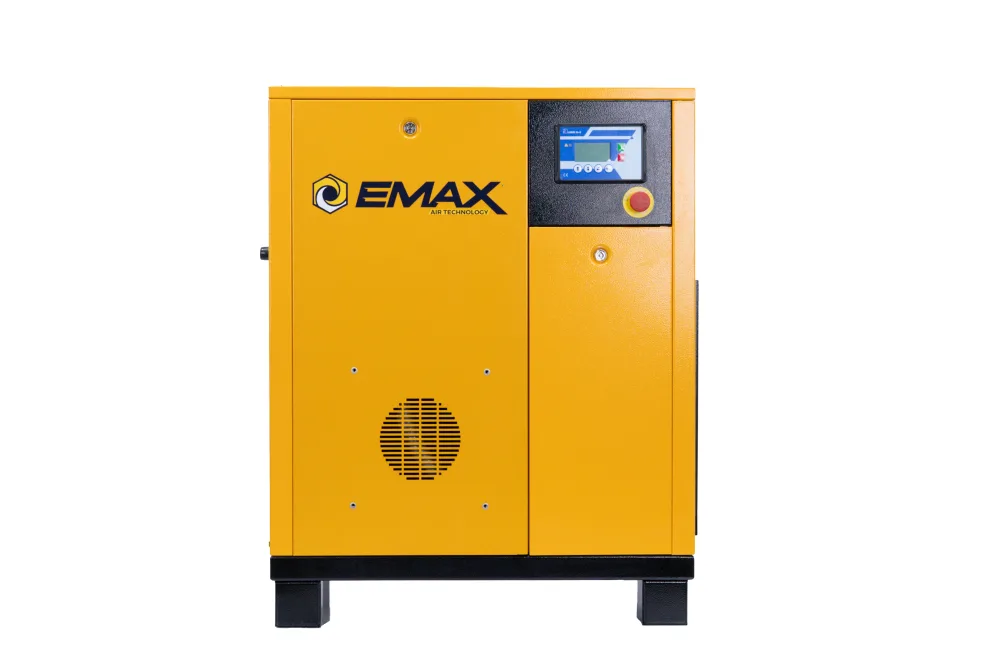

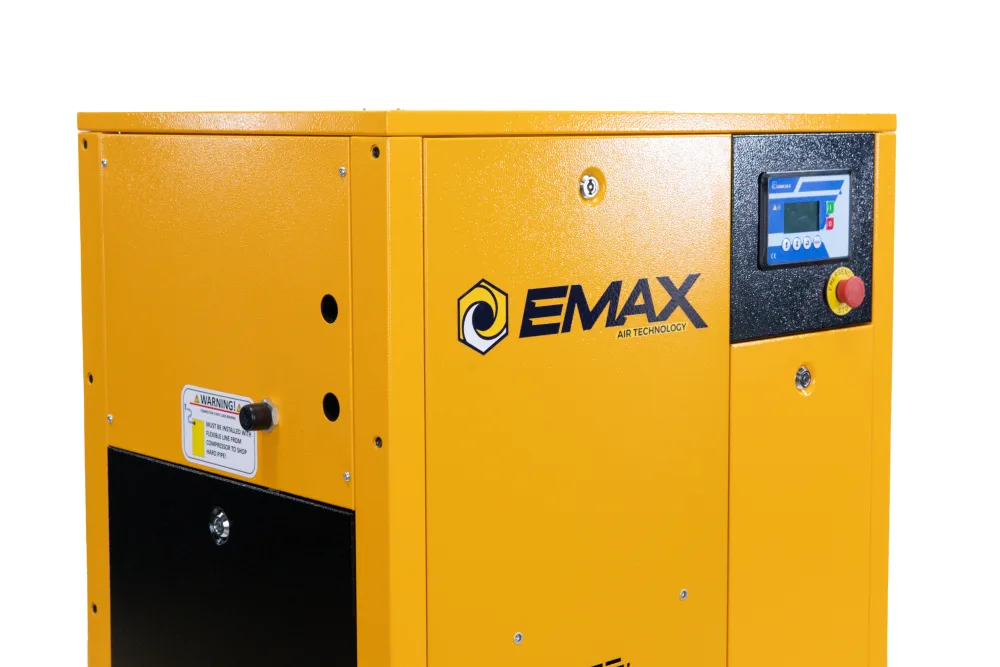

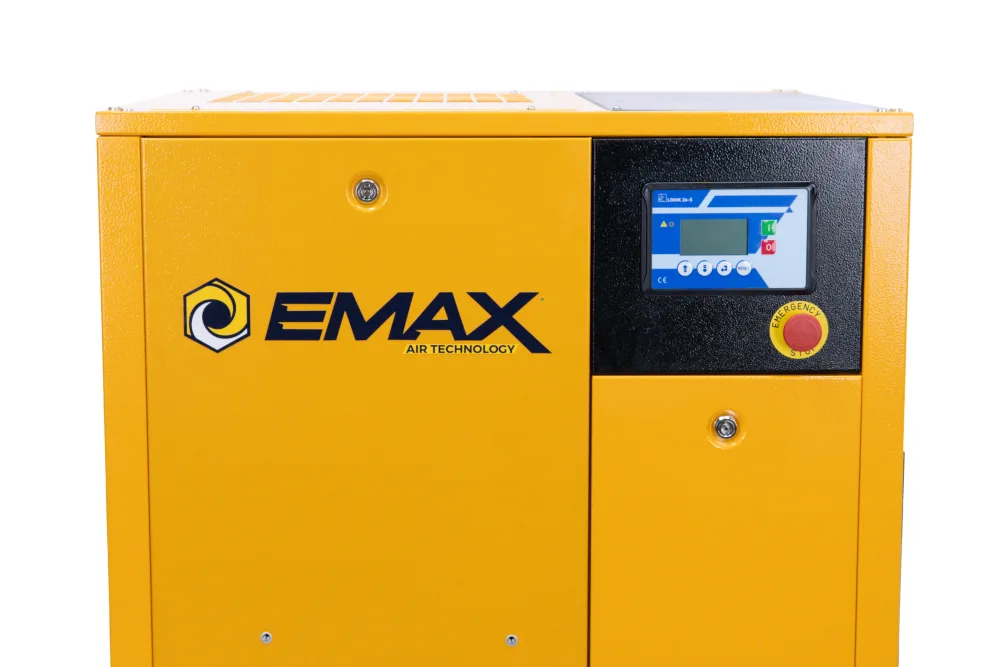

5HP 3 Phase Variable Speed Rotary Screw Air Compressor - 20CFM Industrial Air Compressor, 460V, Energy Efficient, 100,000-Hour Airend Life, Cabinet Only

$11,256free shipping

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.

CFM

145

Max PSI

5 HP · 460V 3-phase
20 CFM
Smart Air™ PLC controls + remote monitoring

About this unit

This 5HP three-phase delivers 20 CFM at 145 PSI.

Smart Air technology

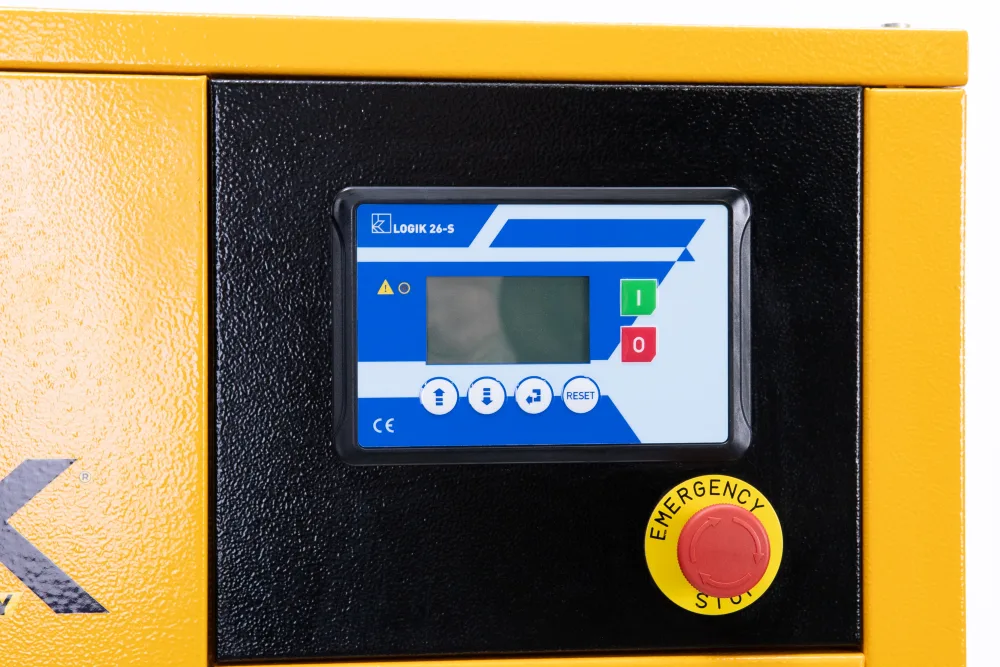

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

Full specifications

29 specs

HP	5
CFM	20.00
Phase	3
Brands	EMAX
Max PSI	145.00
Oil U/M	Gallons
Motor RPM	1750.00
Smart Air	Yes
Belt Count	1
Drive Type	Electric
Motor Type	TEFC
Pump Stage	1
Service Kit	SKIT001AWB
Crated Width	43
Oil Capacity	1.33

Crated Height	49
Crated Length	48
Certifications	UL/CSE
Uncrated Width	25
Compressor Type	ROTARY
Uncrated Height	41
Uncrated Length	34
Uncrated Weight	562.00
Voltage +/- 10%	460
Locked Rotor Amps	45.40
Peak Starting Amps	45.40
Recommended Breaker	10.00
FLA + 1.15 Service Factor	6.90
Estimated Pump Life (Hours)	100000.00
