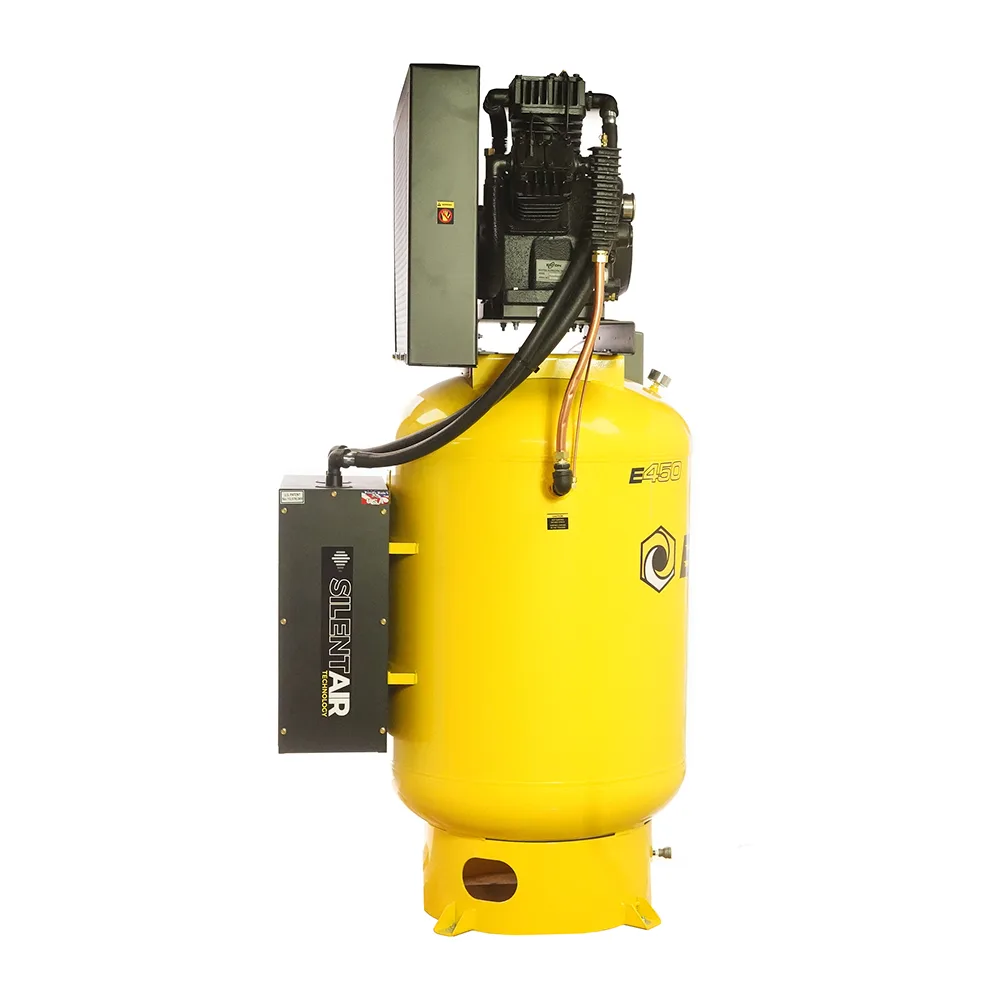

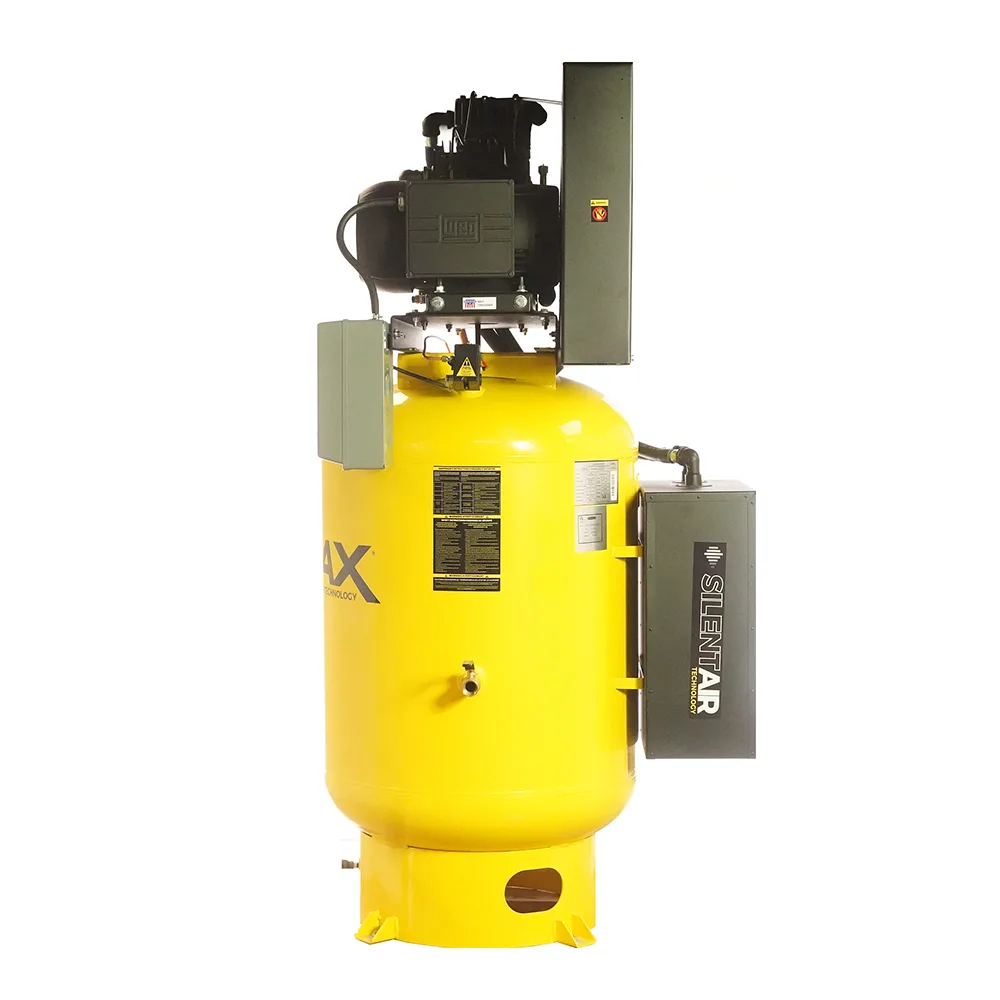

This 15HP three-phase two-stage delivers 58 CFM at 175 PSI from a 120-gallon vertical tank, on a pressure-lubricated pump.

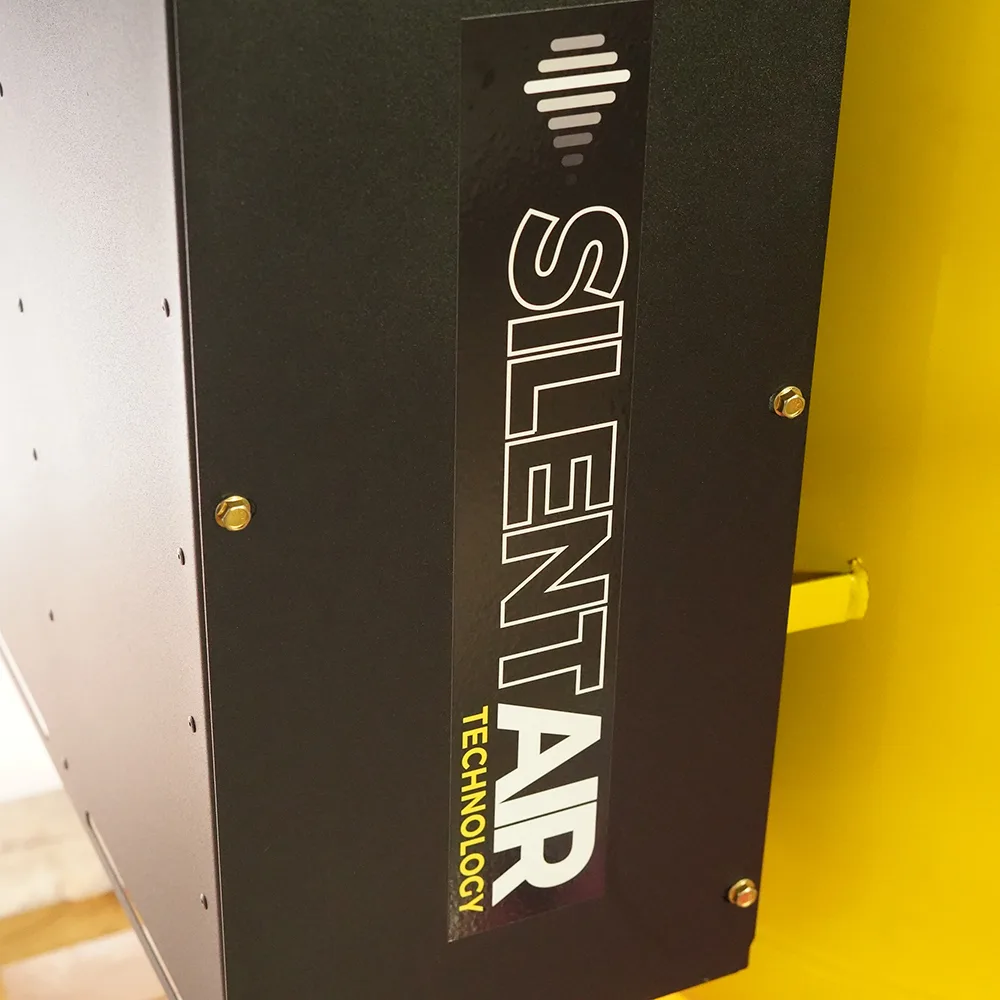

Everything the Silent Air line does, built out for constant duty. The pump rides a raised mounting plate for 360-degree airflow cooling, a dual-timer auto drain keeps moisture out of the tank on a schedule you set, and the dual-bolt belt tensioner makes belt adjustments precise without pry bars.
All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.
| HP | 15 |
|---|---|
| CFM | 58.00 |
| Phase | 3 |
| Brands | EMAX |
| Max PSI | 175.00 |
| Oil U/M | Quarts |
| Pump RPM | 815.00 |
| Motor RPM | 1740.00 |
| Pump Type | Pressure |
| Tank Size | 120 |
| Belt Count | 2 |
| Drive Type | Electric |

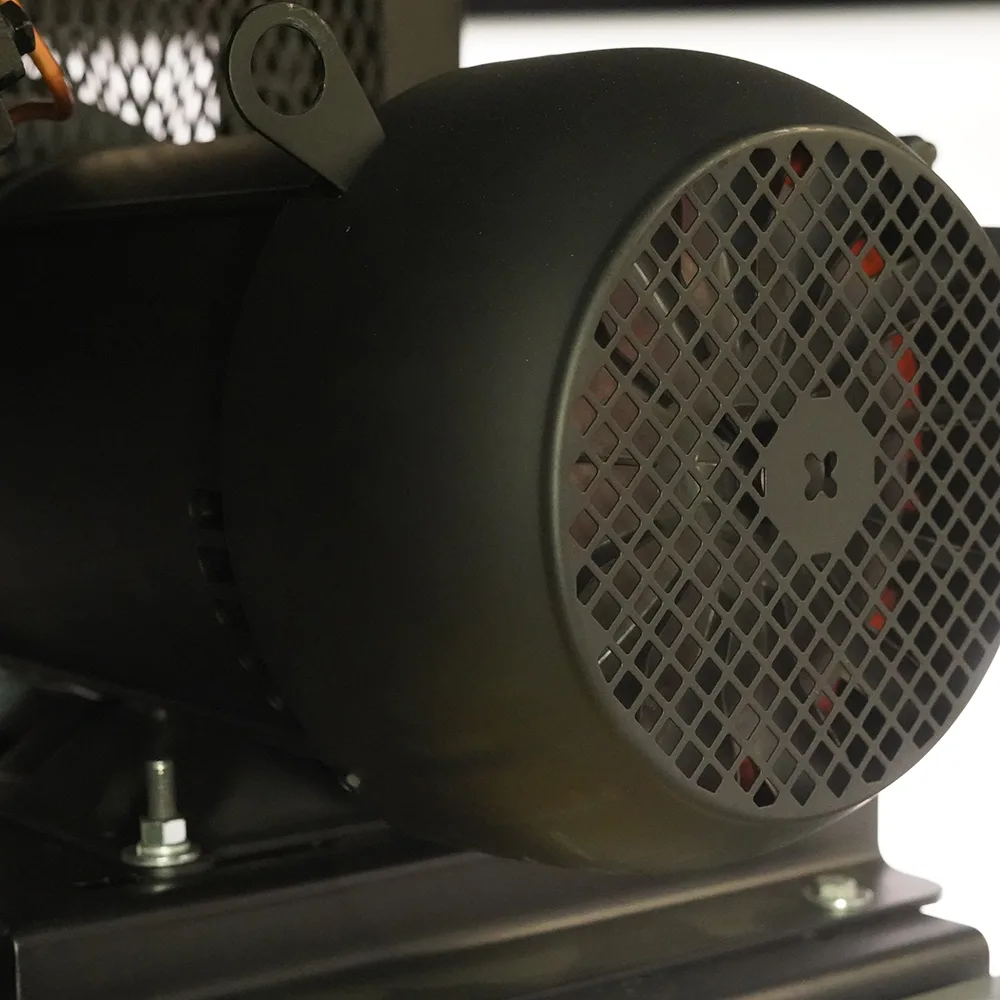

| Motor Type | TEFC |
| Pump Model | APP3Y2062TP |
| Pump Riser | Yes |
| Pump Stage | 2 |
| Silent Air | Yes |
| Start Type | FIXED |
| Tank Drain | Automatic |
| Mag Starter | Yes |
| Outlet Size | 1" |
| Service Kit | EFKIT009AWB |
| Crated Width | 46" |
| Oil Capacity | 3.00 |
| Crated Length | 48" |
| Crated Weight | 1287.00 |
| Belt Tensioner | Yes |
| Certifications | ETL,ASME,CRN |
| Compressor Type | Piston |
| Uncrated Weight | 1138.00 |
| Voltage +/- 10% | 230 |
| Tank Orientation | Vertical |
| Locked Rotor Amps | 237.00 |
| Peak Starting Amps | 237.00 |
| Recommended Breaker | 70.00 |
| FLA + 1.15 Service Factor | 41.90 |
| Estimated Pump Life (Hours) | 70000.00 |
