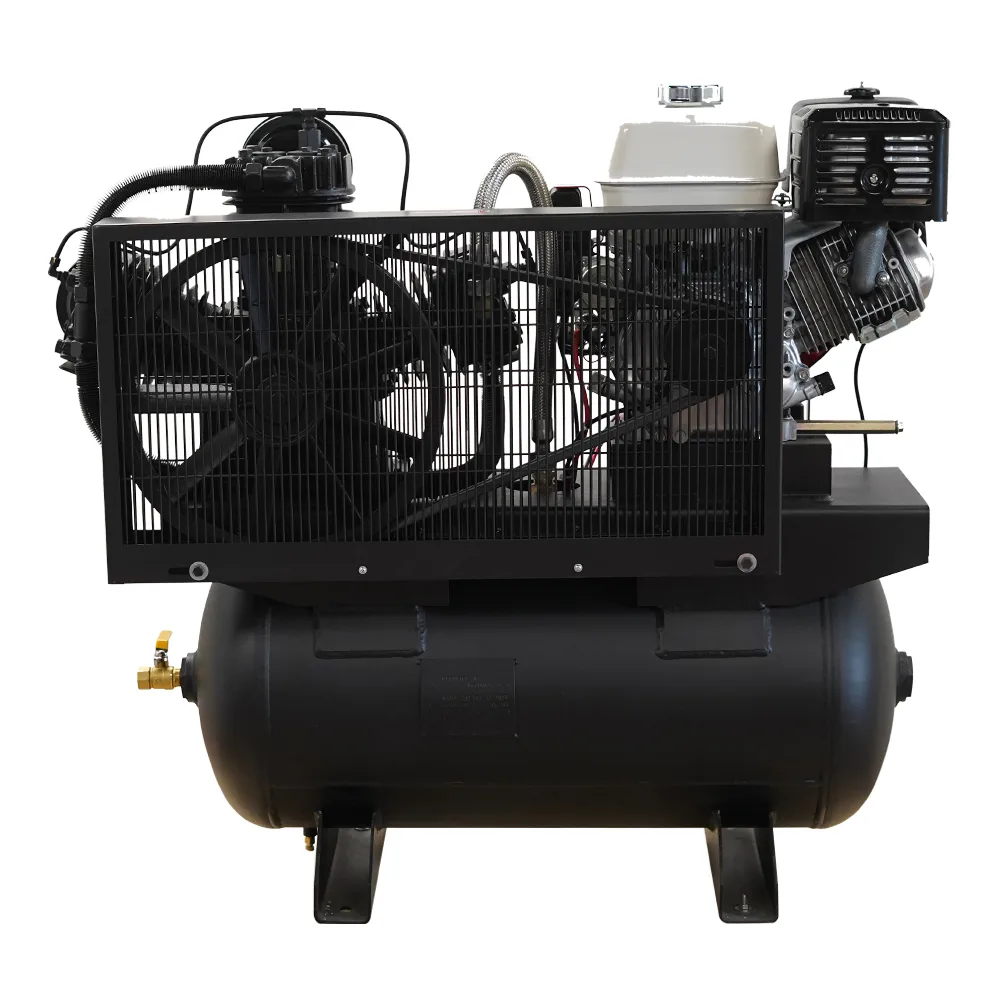

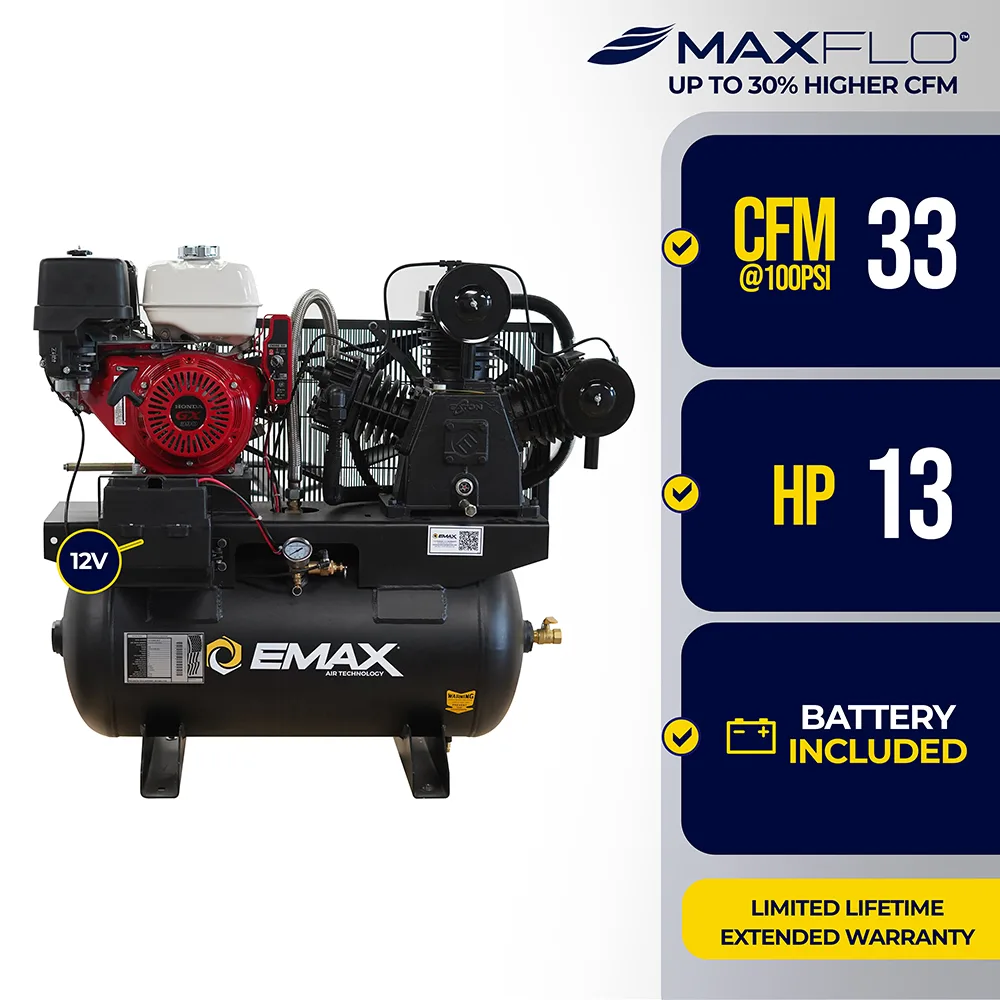

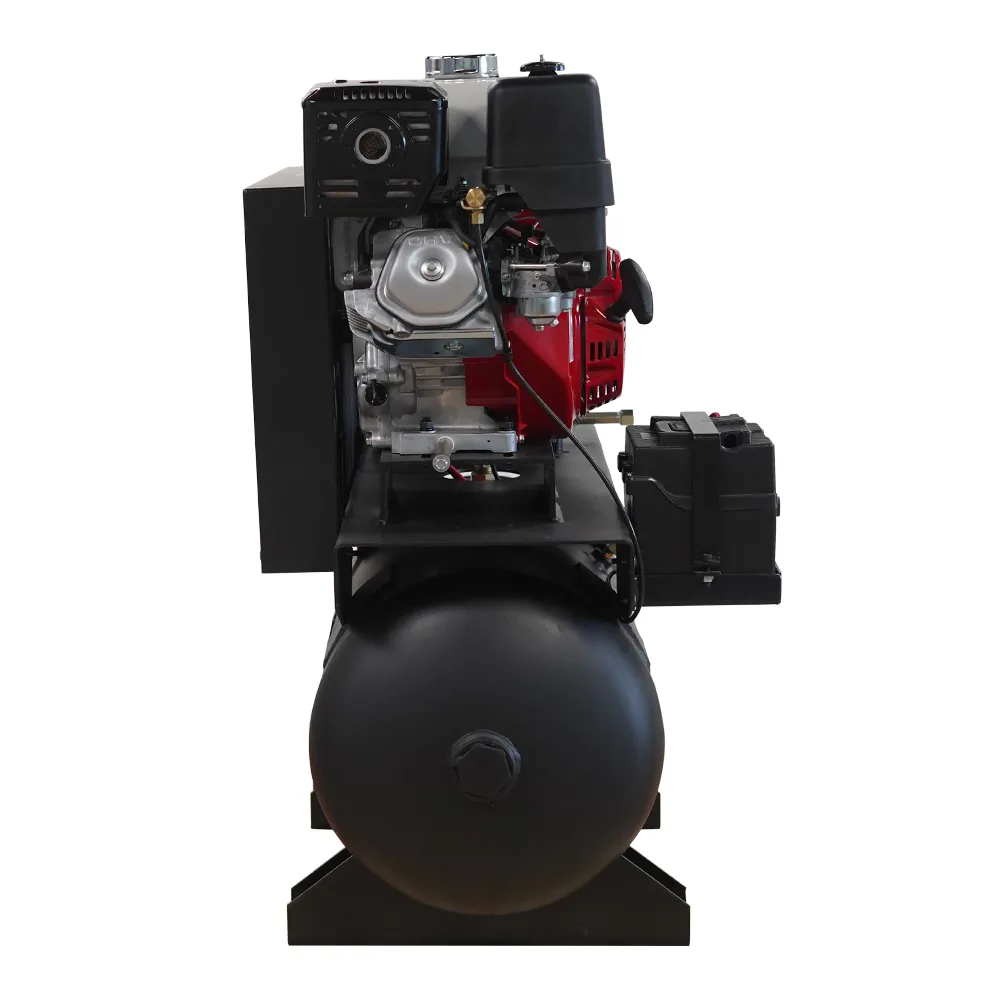

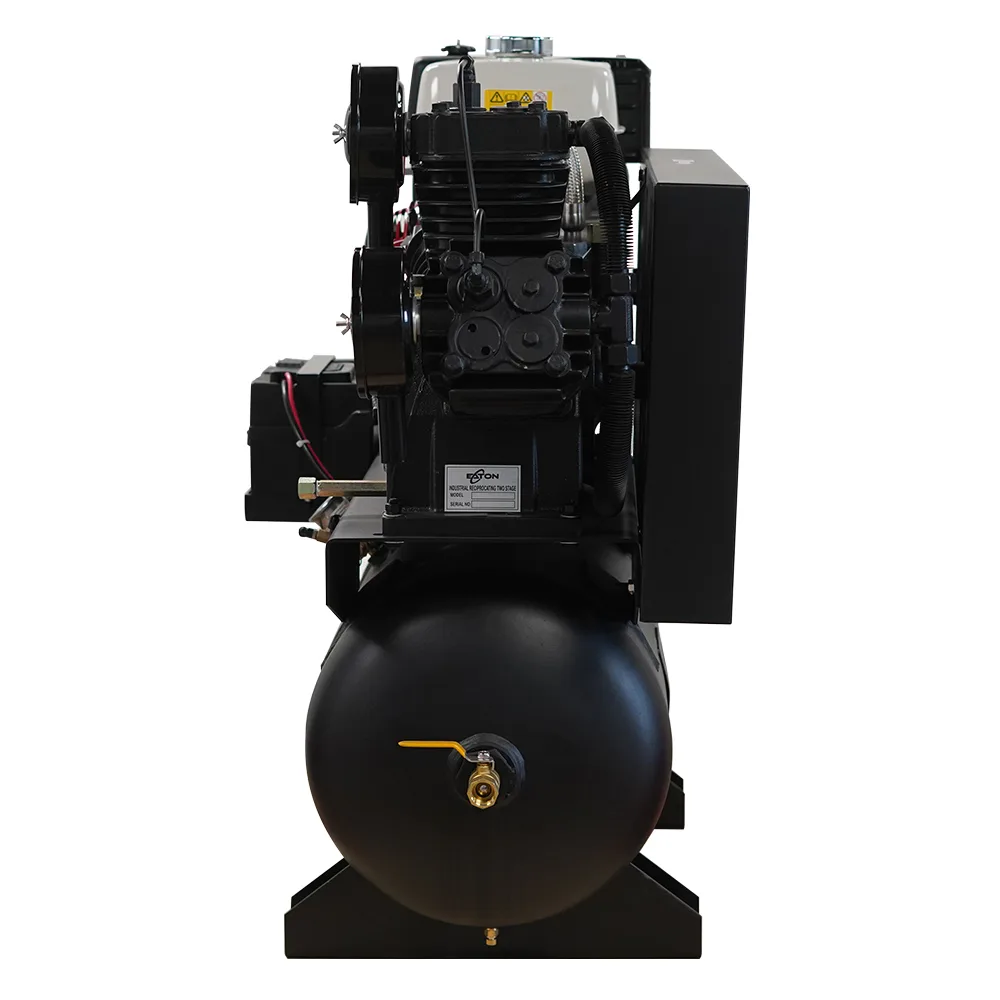

This 13HP three-phase two-stage delivers 33 CFM from a 30-gallon horizontal tank.
All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.
| HP | 13 |
|---|---|
| CFM | 33 |
| Phase | 3 |
| Brands | EMAX |
| Oil U/M | Quarts |
| Pump Type | Splash |
| Tank Size | 30 |
| Belt Count | 2 |
| Drive Type | Gas |
| Pump Riser | Yes |
| Pump Stage | 2 |
| Start Type | FIXED |
| Tank Drain | Manual |
| Outlet Size | 3/4" |
| Oil Capacity | 2.00 |
| Belt Tensioner | Yes |
| Compressor Type | Piston |
| Voltage +/- 10% | 230 |
| Tank Orientation | Horizontal |
| Peak Starting Amps | 171.00 |
| Estimated Pump Life (Hours) | 50000.00 |
