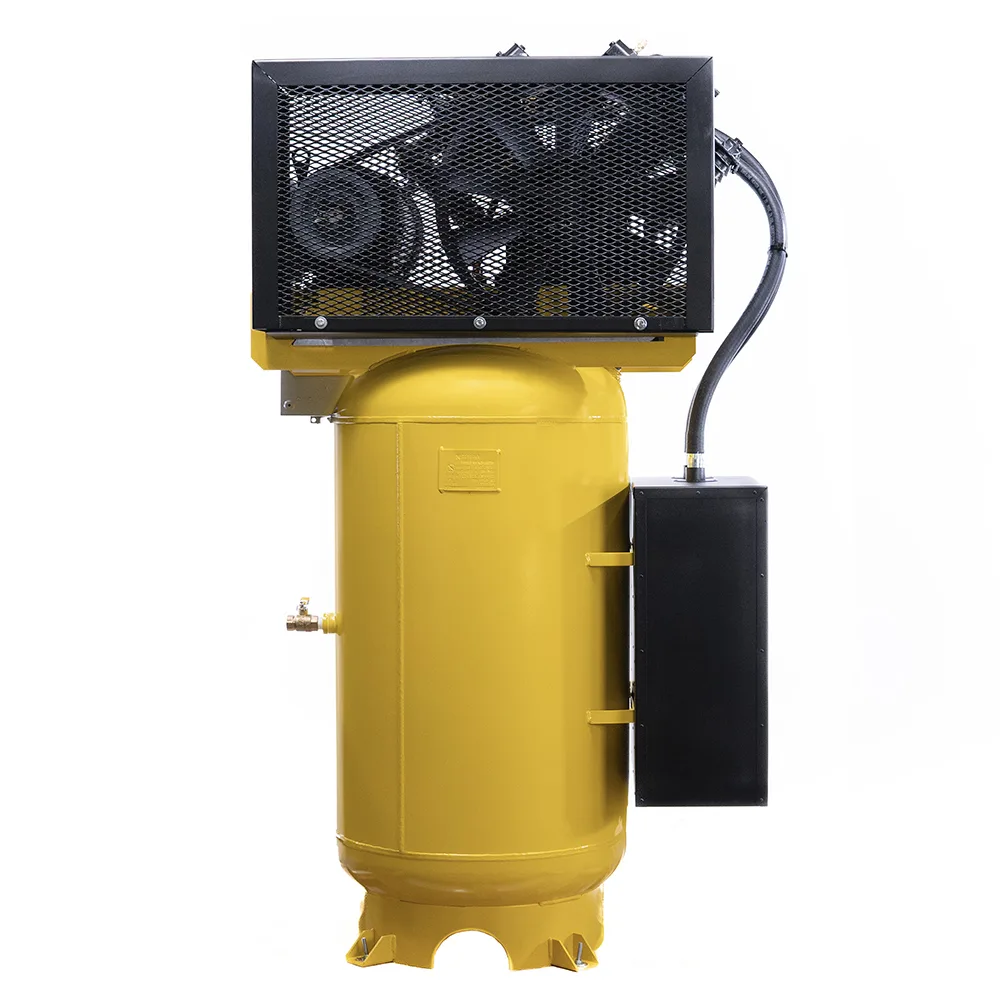

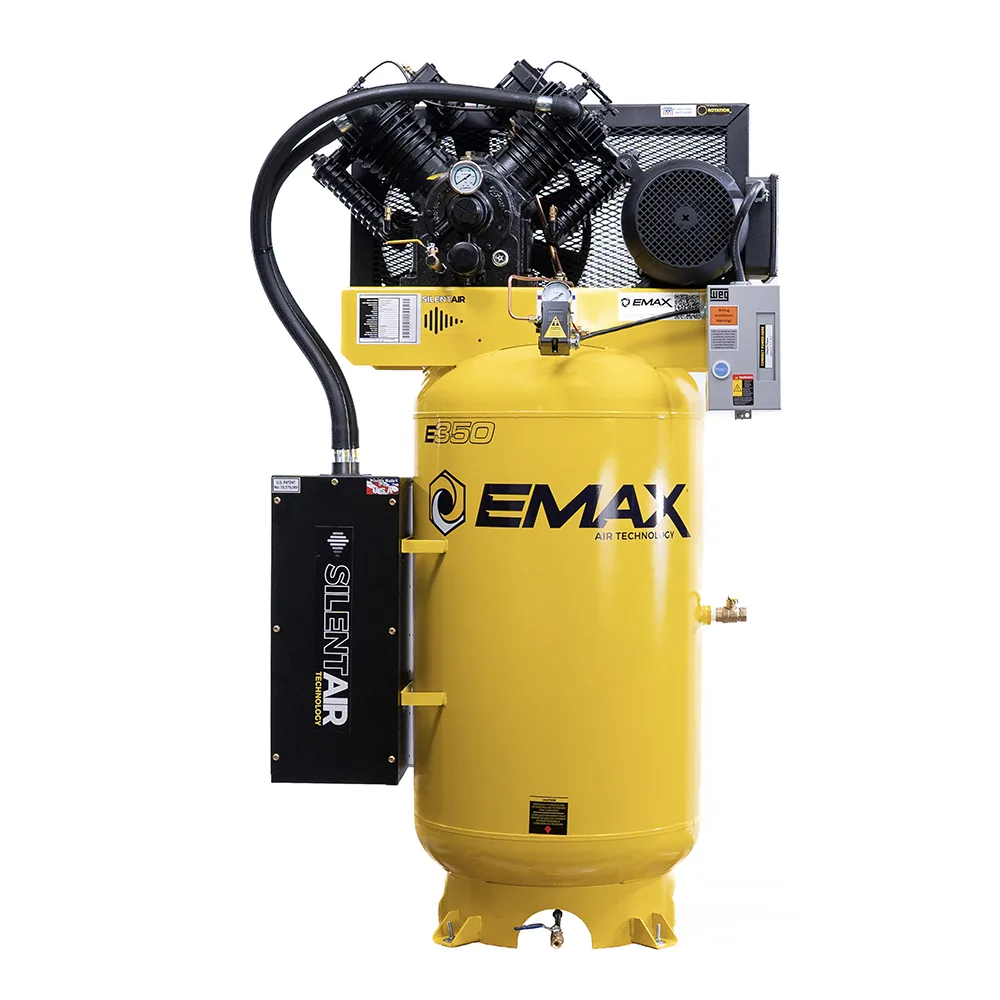

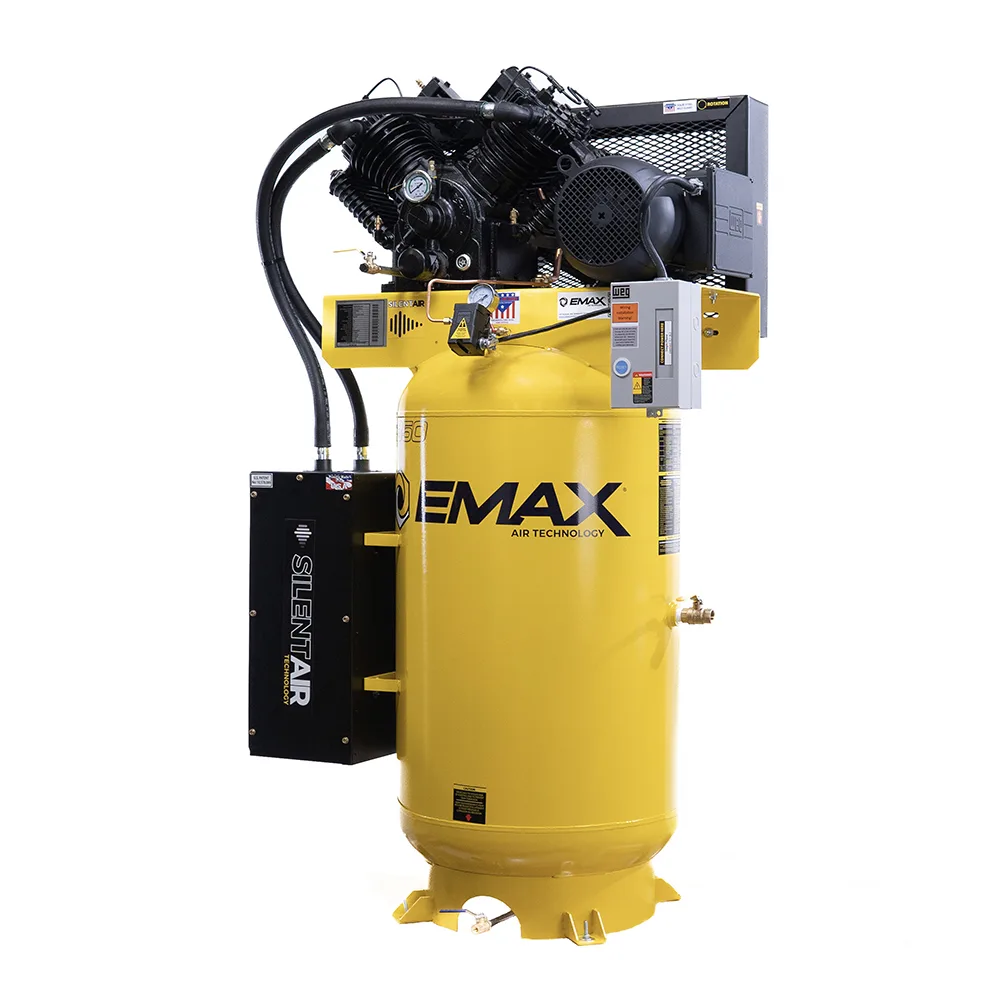

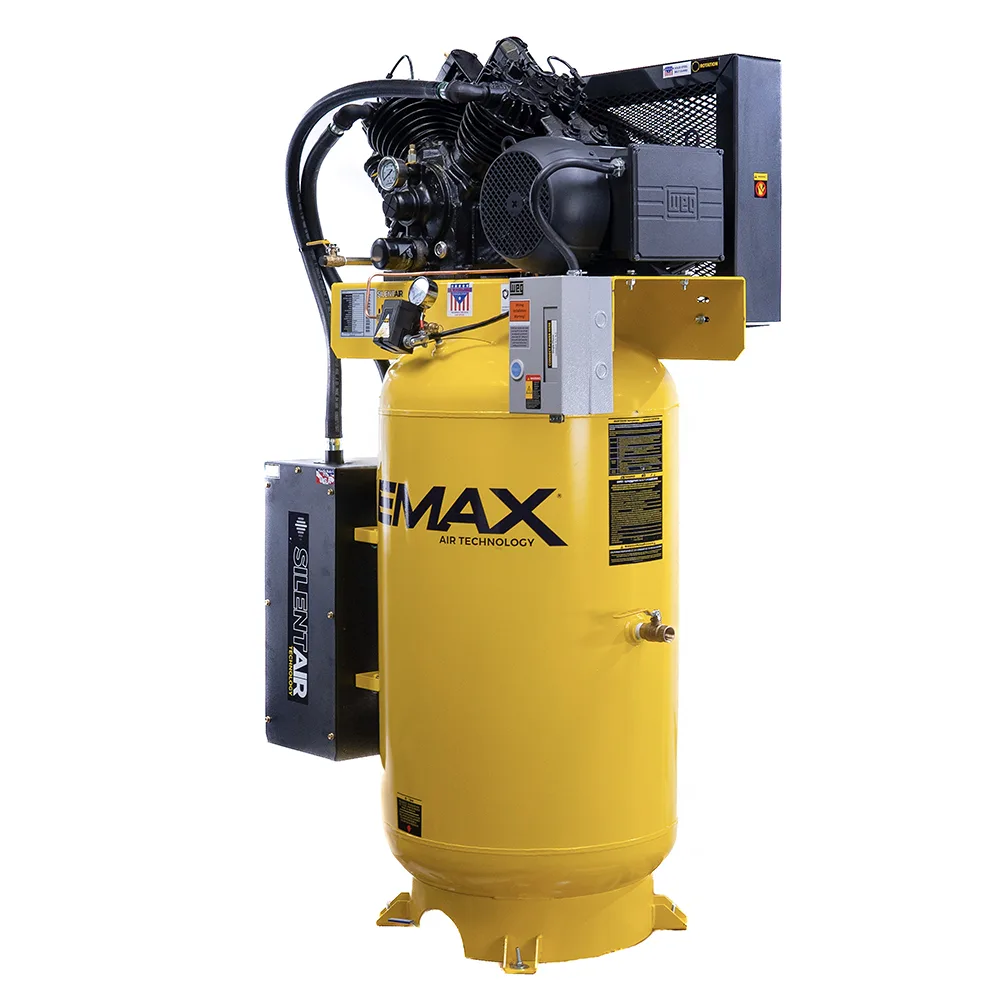

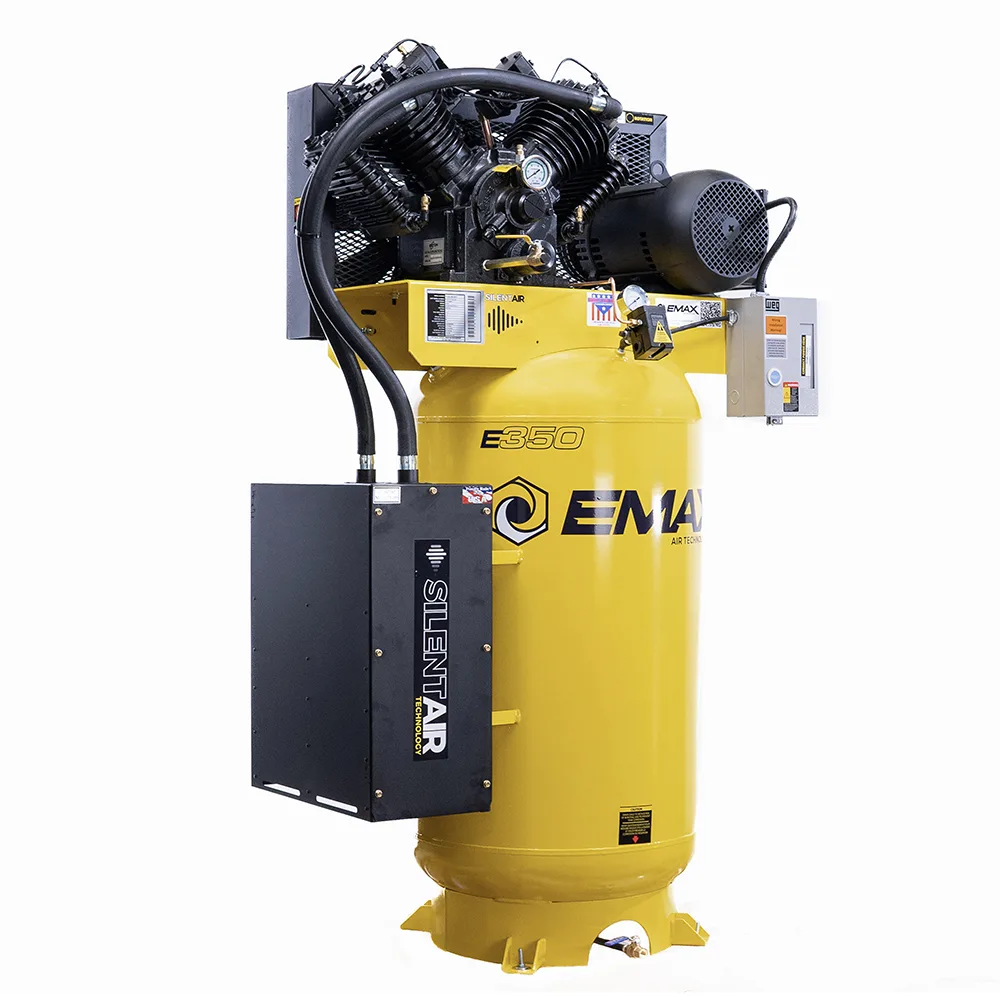

Silent Air™ 10HP 80-Gal Industrial Air Compressor, 38 CFM @ 100 PSI, 4-Cylinder Two-Stage, Pressure-Lubricated Pump, Isolator PadsSilent Air™ 10HP 80-Gal Industrial Air Compressor, 38 CFM @ 100 PSI, 4-Cylinder Two-Stage, Pressure-Lubricated Pump, Isolator Pads, view 2Silent Air™ 10HP 80-Gal Industrial Air Compressor, 38 CFM @ 100 PSI, 4-Cylinder Two-Stage, Pressure-Lubricated Pump, Isolator Pads, view 3Silent Air™ 10HP 80-Gal Industrial Air Compressor, 38 CFM @ 100 PSI, 4-Cylinder Two-Stage, Pressure-Lubricated Pump, Isolator Pads, view 4Silent Air™ 10HP 80-Gal Industrial Air Compressor, 38 CFM @ 100 PSI, 4-Cylinder Two-Stage, Pressure-Lubricated Pump, Isolator Pads, view 5Silent Air™ 10HP 80-Gal Industrial Air Compressor, 38 CFM @ 100 PSI, 4-Cylinder Two-Stage, Pressure-Lubricated Pump, Isolator Pads, view 6
Emax
ES10V080V1

Silent Air™ 10HP 80-Gal Industrial Air Compressor, 38 CFM @ 100 PSI, 4-Cylinder Two-Stage, Pressure-Lubricated Pump, Isolator Pads

$5,595free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.

10
HP
38
CFM
175
Max PSI
  • 10 HP · 230V single-phase
  • 38 CFM
  • 80-gal vertical tank
  • Silent Air™ low-noise package

About this unit

This 10HP single-phase two-stage delivers 38 CFM at 175 PSI from an 80-gallon vertical tank, on a pressure-lubricated pump.

About the Silent Air series

Emax's patented Silent Air silencer system makes these some of the quietest compressors on the market, up to 50% quieter, running at or below conversation volume. The intake system pairs noise-reducing baffle plates with up to 1000% more filtration than standard setups. And unlike enclosed cabinet designs, there's no cabinet in the way when it's time to service it.

The Emax piston pump

All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.

Full specifications

39 specs
HP10
CFM38.00
Phase1
BrandsEMAX
Max PSI175.00
Oil U/MQuarts
Pump RPM800.00
Motor RPM1740.00
Pump TypePressure
Tank Size80
Belt Count2
Drive TypeElectric
Motor TypeODP
Pump ModelAPP4V1043TP
Pump Stage2
Silent AirYes
Start TypeFIXED
Tank DrainManual
Mag StarterYes
Outlet Size3/4"
Service KitEFKIT008AWBS
Crated Width46"
Oil Capacity2.00
Crated Height87"
Crated Length48"
Crated Weight898.00
CertificationsETL,ASME,CRN
Uncrated Width25
Compressor TypePiston
Uncrated Height75
Uncrated Length39
Uncrated Weight749.00
Voltage +/- 10%230
Tank OrientationVertical
Locked Rotor Amps270.00
Peak Starting Amps270.00
Recommended Breaker60.00
FLA + 1.15 Service Factor52.90
Estimated Pump Life (Hours)70000.00
