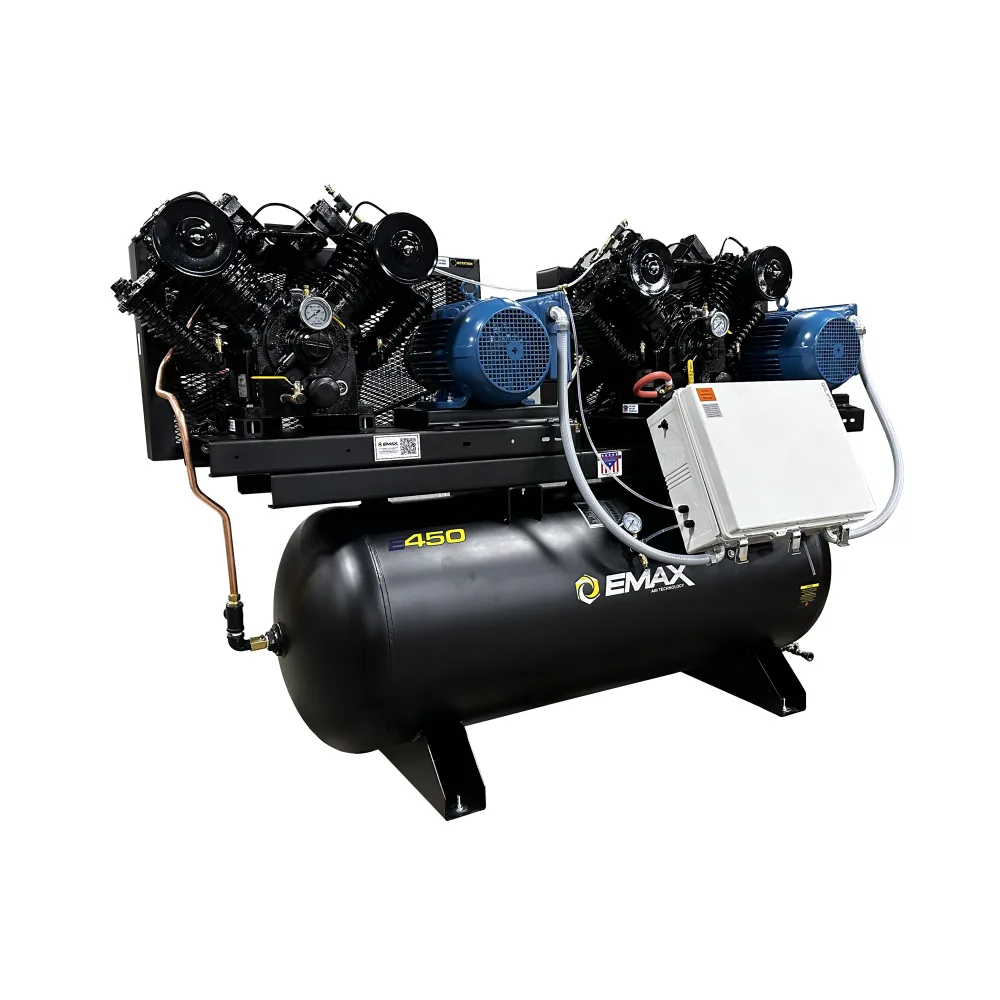

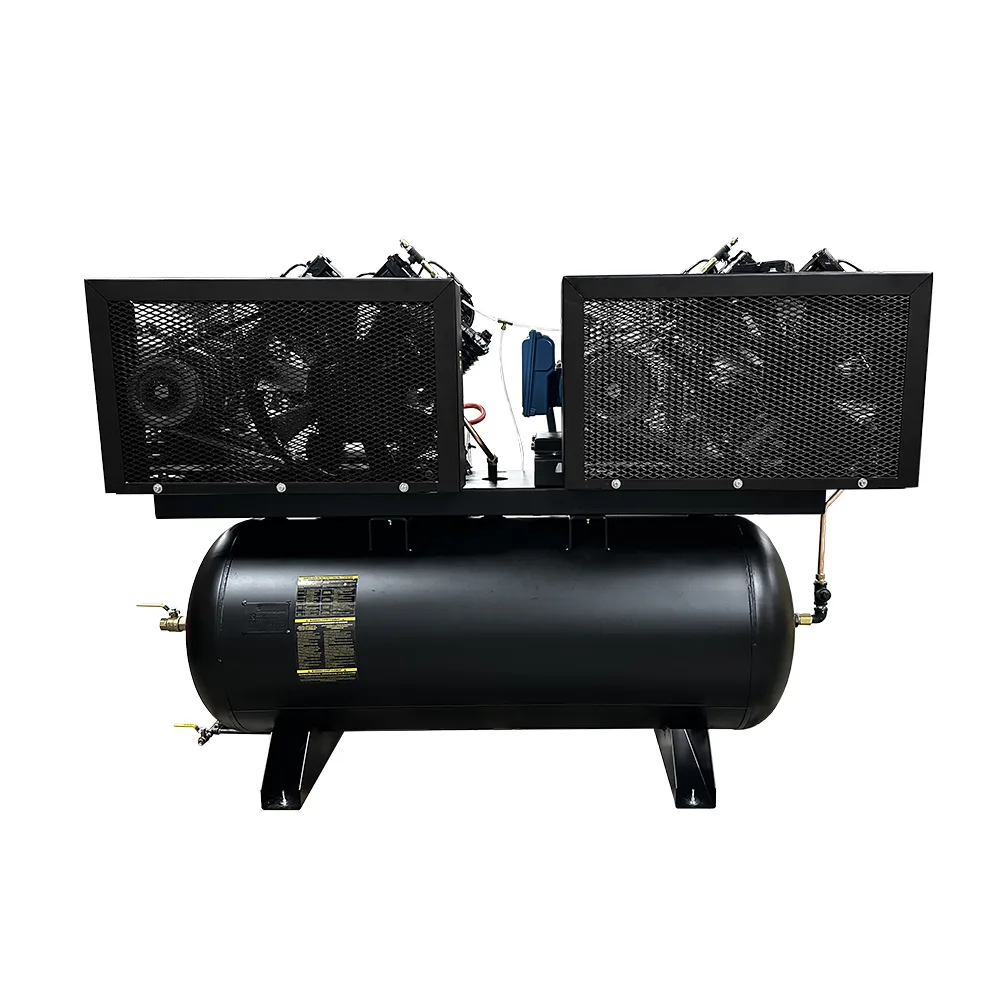

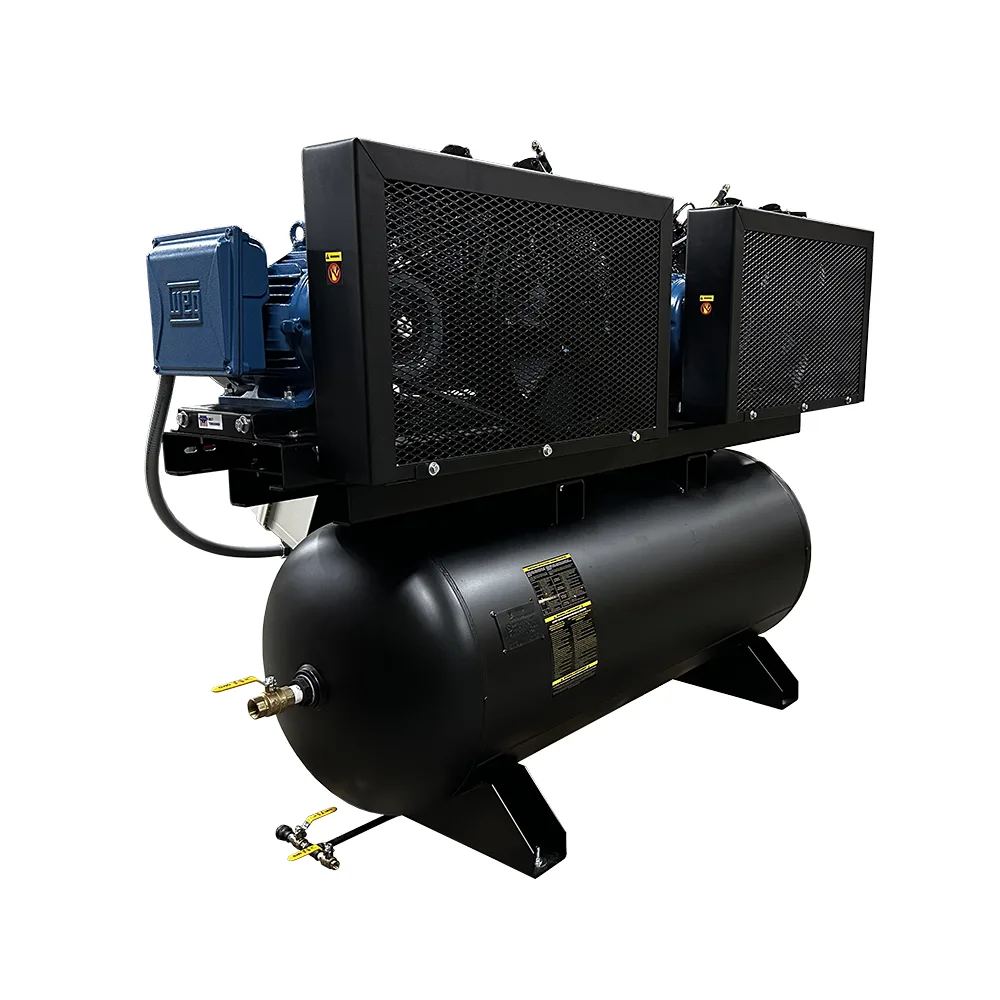

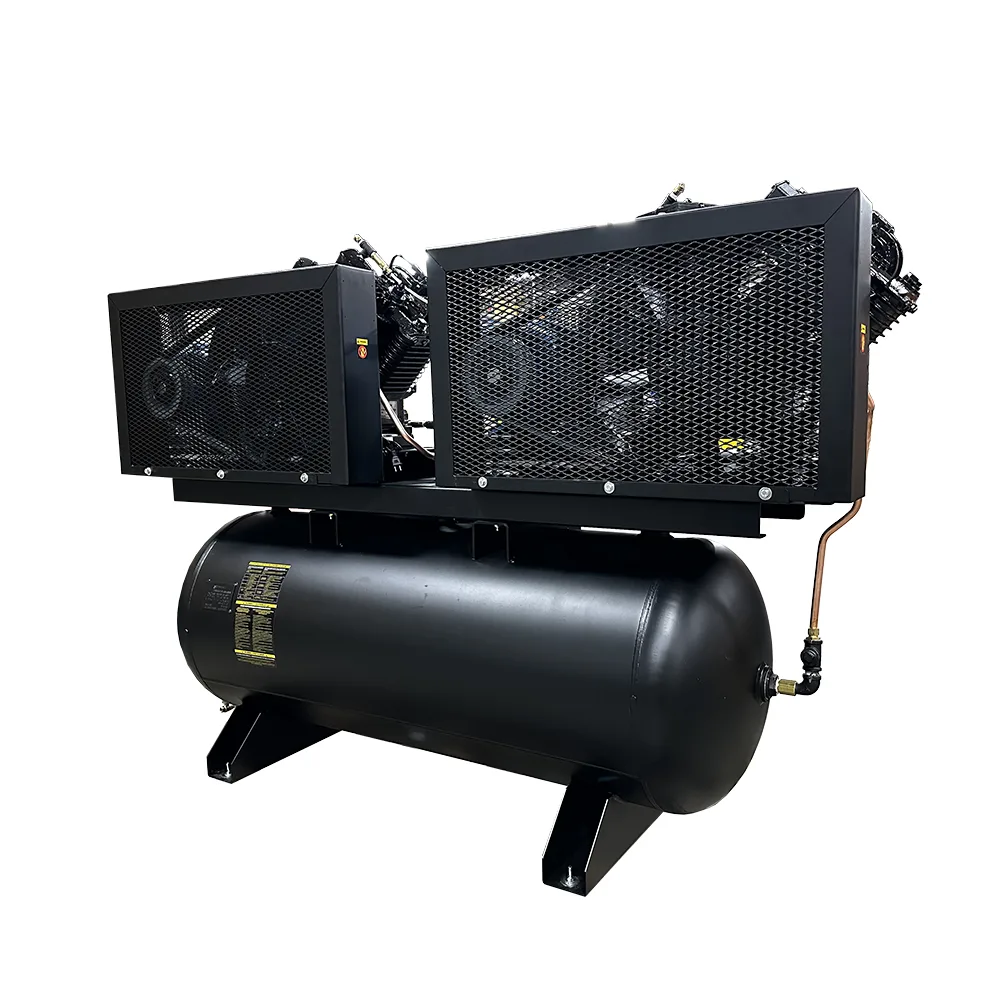

NEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 230V 1-Phase, 120-Gal Horizontal Tank with Alternating SwitchNEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 230V 1-Phase, 120-Gal Horizontal Tank with Alternating Switch, view 2NEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 230V 1-Phase, 120-Gal Horizontal Tank with Alternating Switch, view 3NEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 230V 1-Phase, 120-Gal Horizontal Tank with Alternating Switch, view 4NEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 230V 1-Phase, 120-Gal Horizontal Tank with Alternating Switch, view 5
Emax
EP07DW120V1

NEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 230V 1-Phase, 120-Gal Horizontal Tank with Alternating Switch

$11,995
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.

7.5
HP
62
CFM
175
Max PSI
  • 7.5 HP · 230V single-phase
  • 62 CFM
  • 120-gal horizontal tank

About this unit

This 7.5HP single-phase two-stage delivers 62 CFM at 175 PSI from a 120-gallon horizontal tank, on a pressure-lubricated pump.

The Emax piston pump

All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.

Full specifications

35 specs
HP7.5
CFM62.00
Phase1
BrandsEMAX
Max PSI175.00
Oil U/MQuarts
Pump RPM590.00
Motor RPM1740.00
Pump TypePressure
Tank Size120
Belt Count2
Drive TypeElectric
Motor TypeODP
Pump ModelAPP4V1043TP
Pump RiserYes
Pump Stage2
Start TypeFIXED
Tank DrainAutomatic
Mag StarterYes
Outlet Size1"
Service KitEFKIT008WBS
Crated Width46"
Oil Capacity2.00
Crated Height87"
Crated Length48"
Belt TensionerYes
CertificationsASME, CRN
Compressor TypePiston
Voltage +/- 10%230
Tank OrientationHorizontal
Locked Rotor Amps210.00
Peak Starting Amps210.00
Recommended Breaker50.00
FLA + 1.15 Service Factor38.90
Estimated Pump Life (Hours)70000.00
