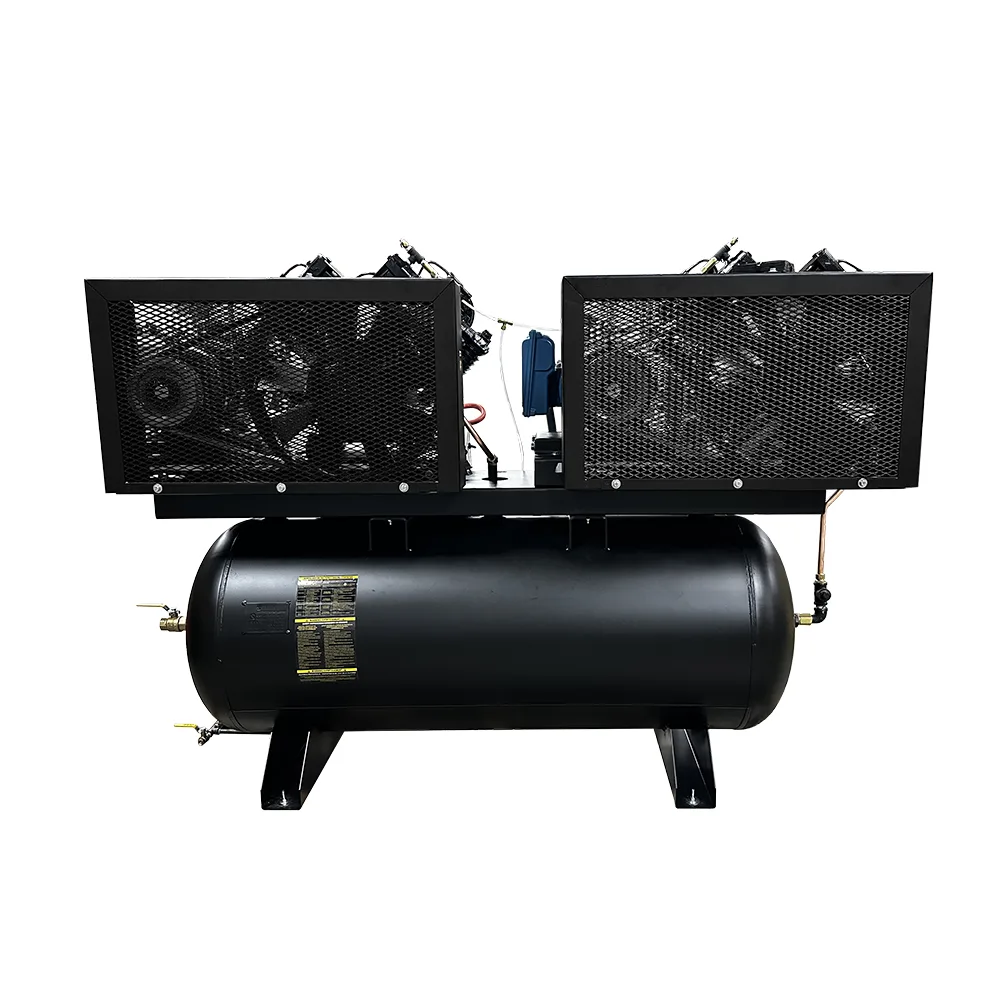

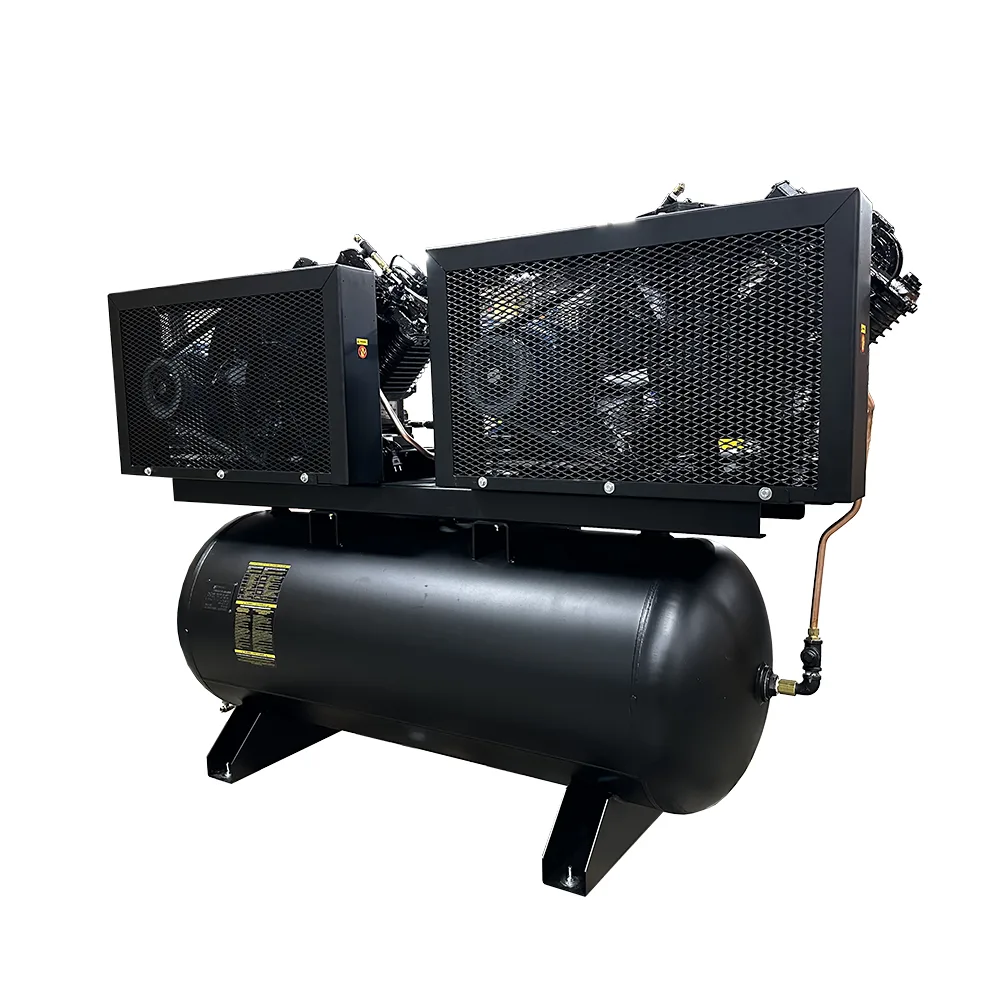

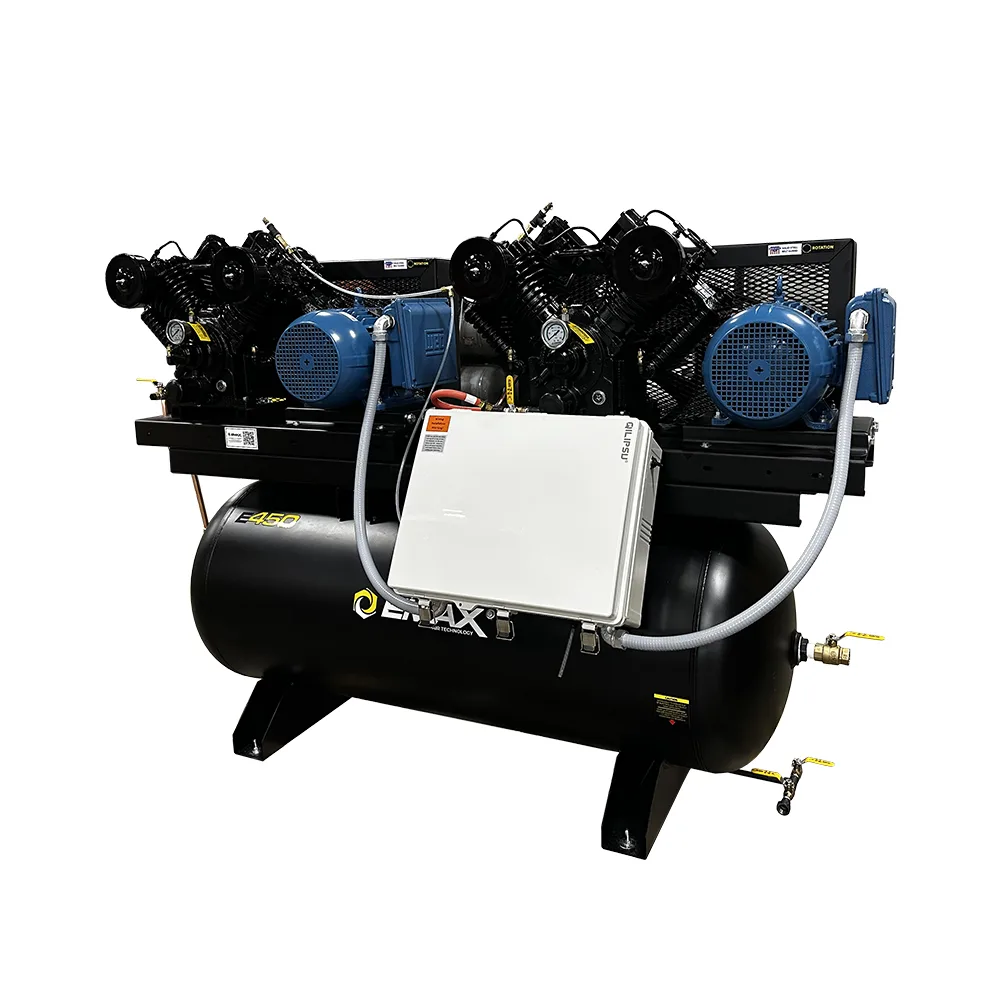

NEMA4 Compliant Weather-Resistant Duplex 15HP Air Compressor, 62 CFM, 208V 3-Phase, 120-Gal Horizontal Tank with Alternating Switch
Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.
Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.
- 7.5 HP · 230V 3-phase
- 0.62 CFM
- 120-gal horizontal tank
About this unit
This 7.5HP three-phase two-stage delivers 0.62 CFM from a 120-gallon horizontal tank, on a pressure-lubricated pump.
The Emax piston pump
All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.
Full specifications
18 specs
| HP | 7.5 |
|---|---|
| CFM | 0.62 |
| Phase | 3 |
| Brands | EMAX |
| Pump Type | Pressure |
| Tank Size | 120 |
| Belt Count | 4 |
| Drive Type | Electric |
| Motor Type | TEFC |
| Pump Riser | Yes |
|---|---|
| Pump Stage | 2 |
| Tank Drain | Automatic |
| Mag Starter | Yes |
| Outlet Size | 1" |
| Belt Tensioner | Yes |
| Compressor Type | Piston |
| Voltage +/- 10% | 230 |
| Tank Orientation | Horizontal |
Manuals
