Hydro SMART AIR® 10HP Silent Air Compressor - 38 CFM, 3 Phase 208V, 80 Gallon, 2-Stage Pressure Lubricated Pump, Water-Cooled, 100% Duty Cycle, WiFi PLC ControlsHydro SMART AIR® 10HP Silent Air Compressor - 38 CFM, 3 Phase 208V, 80 Gallon, 2-Stage Pressure Lubricated Pump, Water-Cooled, 100% Duty Cycle, WiFi PLC Controls, view 2Hydro SMART AIR® 10HP Silent Air Compressor - 38 CFM, 3 Phase 208V, 80 Gallon, 2-Stage Pressure Lubricated Pump, Water-Cooled, 100% Duty Cycle, WiFi PLC Controls, view 3Hydro SMART AIR® 10HP Silent Air Compressor - 38 CFM, 3 Phase 208V, 80 Gallon, 2-Stage Pressure Lubricated Pump, Water-Cooled, 100% Duty Cycle, WiFi PLC Controls, view 4Hydro SMART AIR® 10HP Silent Air Compressor - 38 CFM, 3 Phase 208V, 80 Gallon, 2-Stage Pressure Lubricated Pump, Water-Cooled, 100% Duty Cycle, WiFi PLC Controls, view 5Hydro SMART AIR® 10HP Silent Air Compressor - 38 CFM, 3 Phase 208V, 80 Gallon, 2-Stage Pressure Lubricated Pump, Water-Cooled, 100% Duty Cycle, WiFi PLC Controls, view 6Hydro SMART AIR® 10HP Silent Air Compressor - 38 CFM, 3 Phase 208V, 80 Gallon, 2-Stage Pressure Lubricated Pump, Water-Cooled, 100% Duty Cycle, WiFi PLC Controls, view 7
Emax
EVW10V080V3-230

Hydro SMART AIR® 10HP Silent Air Compressor - 38 CFM, 3 Phase 208V, 80 Gallon, 2-Stage Pressure Lubricated Pump, Water-Cooled, 100% Duty Cycle, WiFi PLC Controls

$18,478free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.

10
HP
38
CFM
175
Max PSI
  • 10 HP · 230V 3-phase
  • 38 CFM
  • 80-gal vertical tank
  • Silent Air™ low-noise package

About this unit

This 10HP three-phase two-stage delivers 38 CFM at 175 PSI from an 80-gallon vertical tank, on a pressure-lubricated pump.

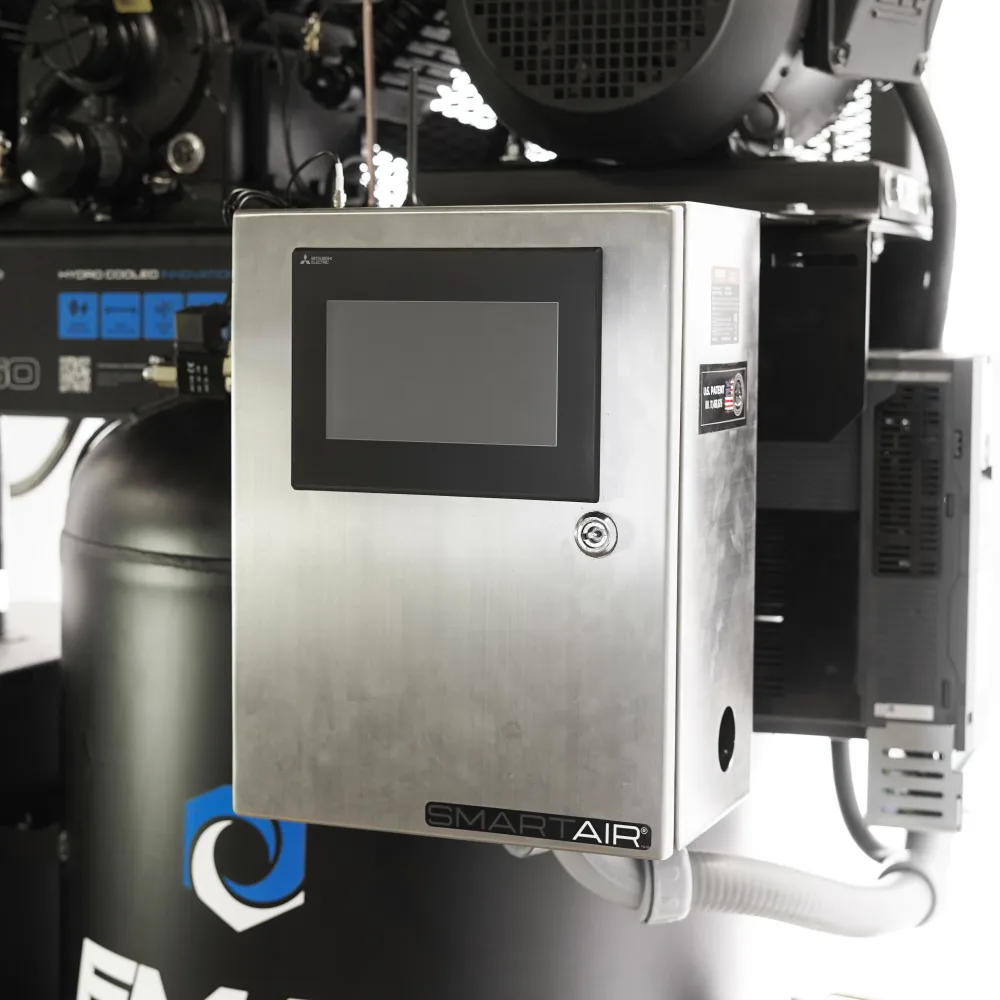

Smart Air technology

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

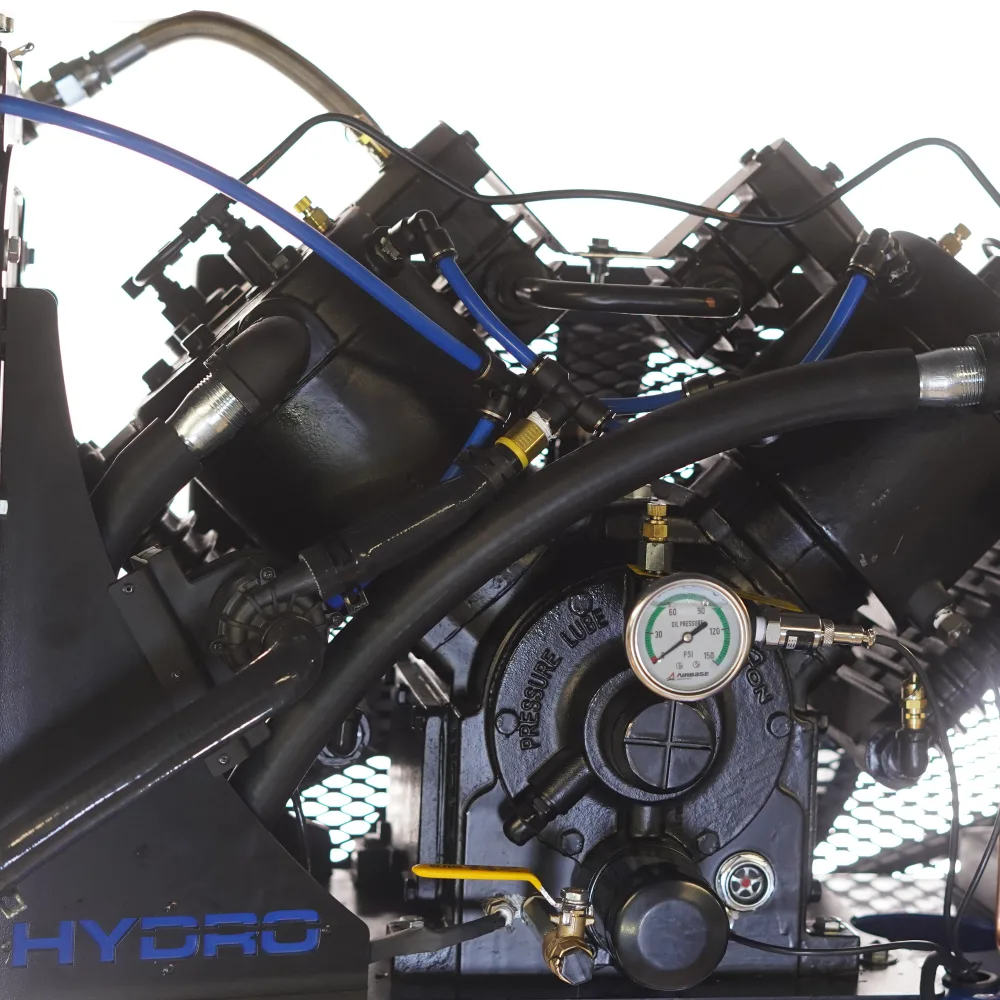

The Emax piston pump

All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.

Full specifications

39 specs
HP10
CFM38.00
Phase3
BrandsEMAX
Max PSI175.00
Oil U/MQuarts
Pump RPM730.00
Motor RPM1740.00
Pump TypePressure
Smart AirYes
Tank Size80
Belt Count2
Drive TypeElectric
Motor TypeTEFC
Pump ModelAPP4V1043WC
Pump RiserYes
Pump Stage2
Silent AirYes
Start TypeVARIABLE
Tank DrainAutomatic
Outlet Size3/4"
Service KitEFKIT008AWBS
Crated Width46"
Oil Capacity2.00
Crated Height87"
Crated Length48"
Belt TensionerYes
CertificationsASME, CRN
Uncrated Width25
Compressor TypePiston
Uncrated Height75
Uncrated Length39
Voltage +/- 10%230
Tank OrientationVertical
Locked Rotor Amps171.00
Peak Starting Amps171.00
Recommended Breaker50.00
FLA + 1.15 Service Factor27.90
Estimated Pump Life (Hours)80000.00
