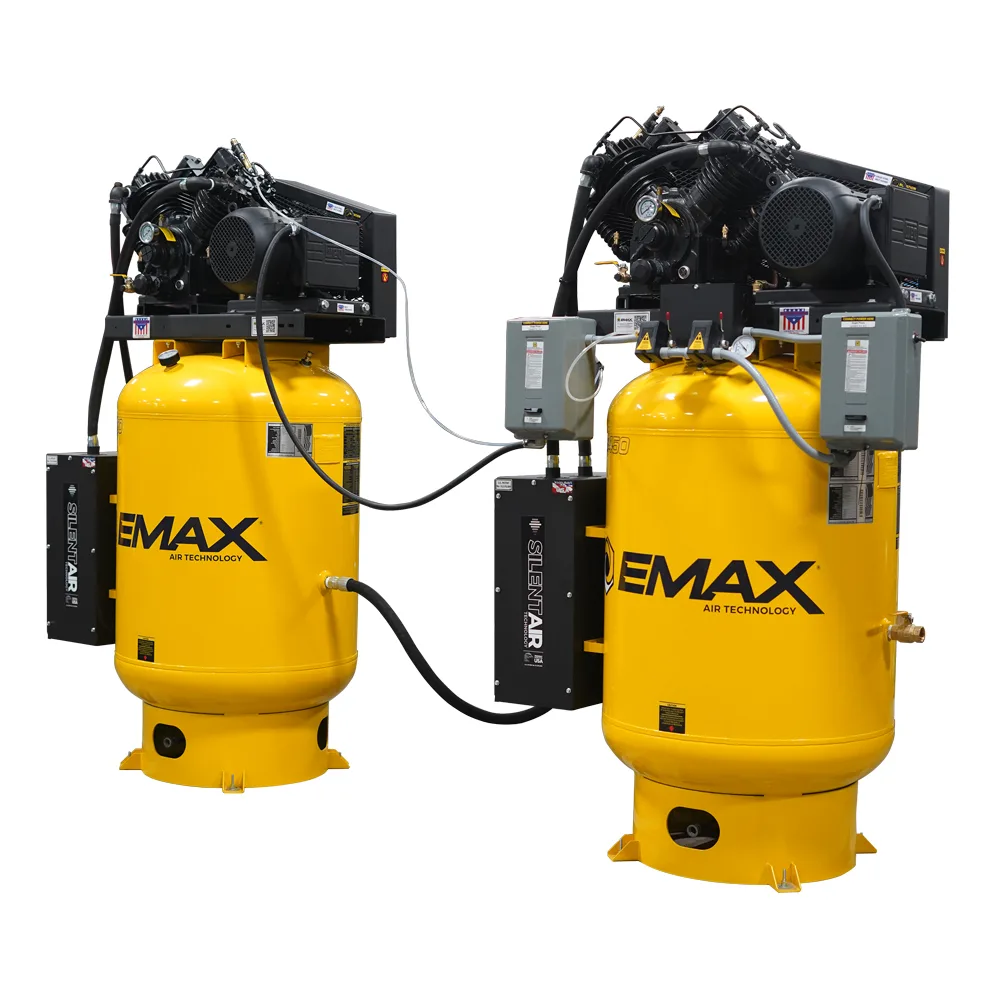

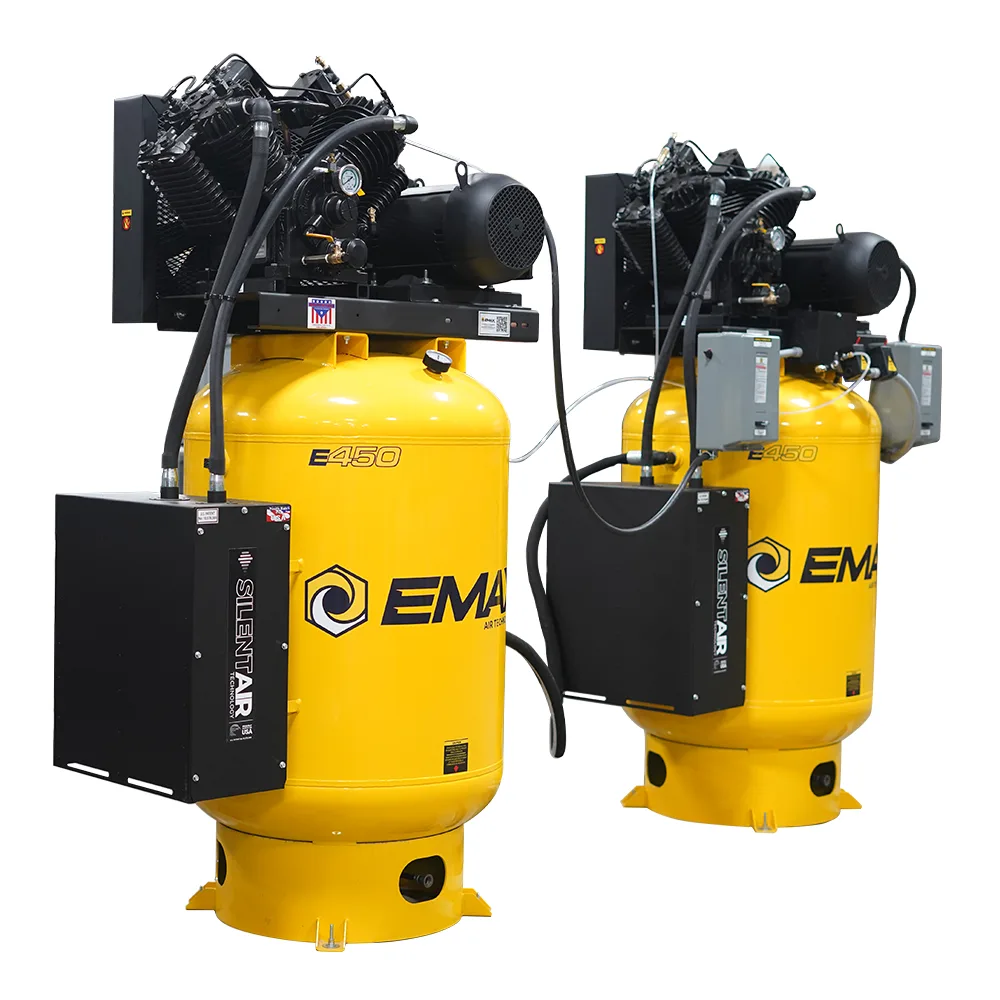

(2) SOLO Alternating Silent Air™ Compressors - 10HP V4, 76 CFM, 120-Gal Vertical, 1-Phase, 230V, Radiator Aftercoolers
Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.
Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.
- 10 HP · 230V single-phase
- 76 CFM
- 120-gal vertical tank
- Silent Air™ low-noise package
About this unit
This 10HP single-phase two-stage delivers 76 CFM from a 120-gallon vertical tank, on a pressure-lubricated four-cylinder pump.
About the Silent Air series
Emax's patented Silent Air silencer system makes these some of the quietest compressors on the market, up to 50% quieter, running at or below conversation volume. The intake system pairs noise-reducing baffle plates with up to 1000% more filtration than standard setups. And unlike enclosed cabinet designs, there's no cabinet in the way when it's time to service it.
The Emax piston pump
All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.
Full specifications
22 specs
| HP | 10 |
|---|---|
| CFM | 76.00 |
| Phase | 1 |
| Brands | EMAX |
| Radiator | Yes |
| Pump Type | Pressure |
| Tank Size | 120 |
| Belt Count | 4 |
| Drive Type | Electric |
| Motor Type | ODP |
| Pump Model | APP4V1043TP |
| Pump Riser | Yes |
|---|---|
| Pump Stage | 2 |
| Silent Air | Yes |
| Tank Drain | Automatic |
| Mag Starter | Yes |
| Outlet Size | 1" |
| Belt Tensioner | Yes |
| Compressor Type | Piston |
| Voltage +/- 10% | 230 |
| Tank Orientation | Vertical |
| Estimated Pump Life (Hours) | 60000.00 |
