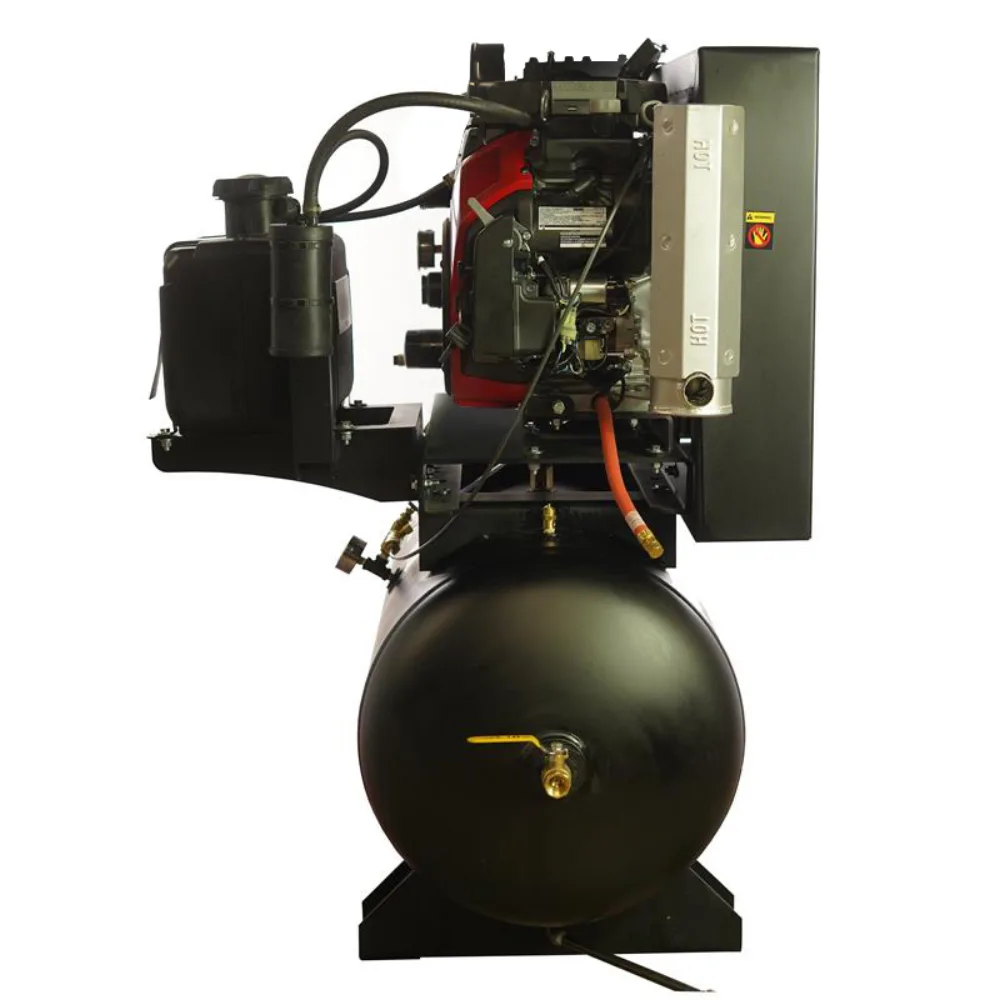

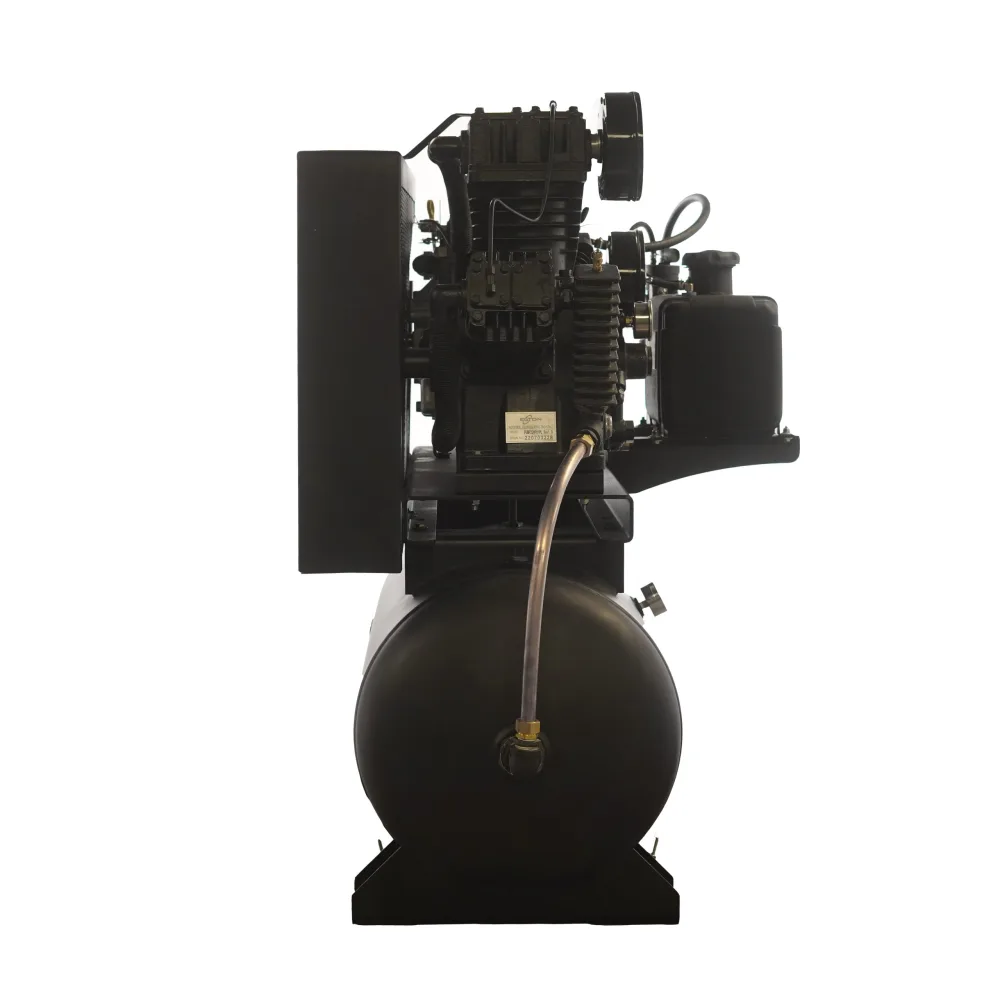

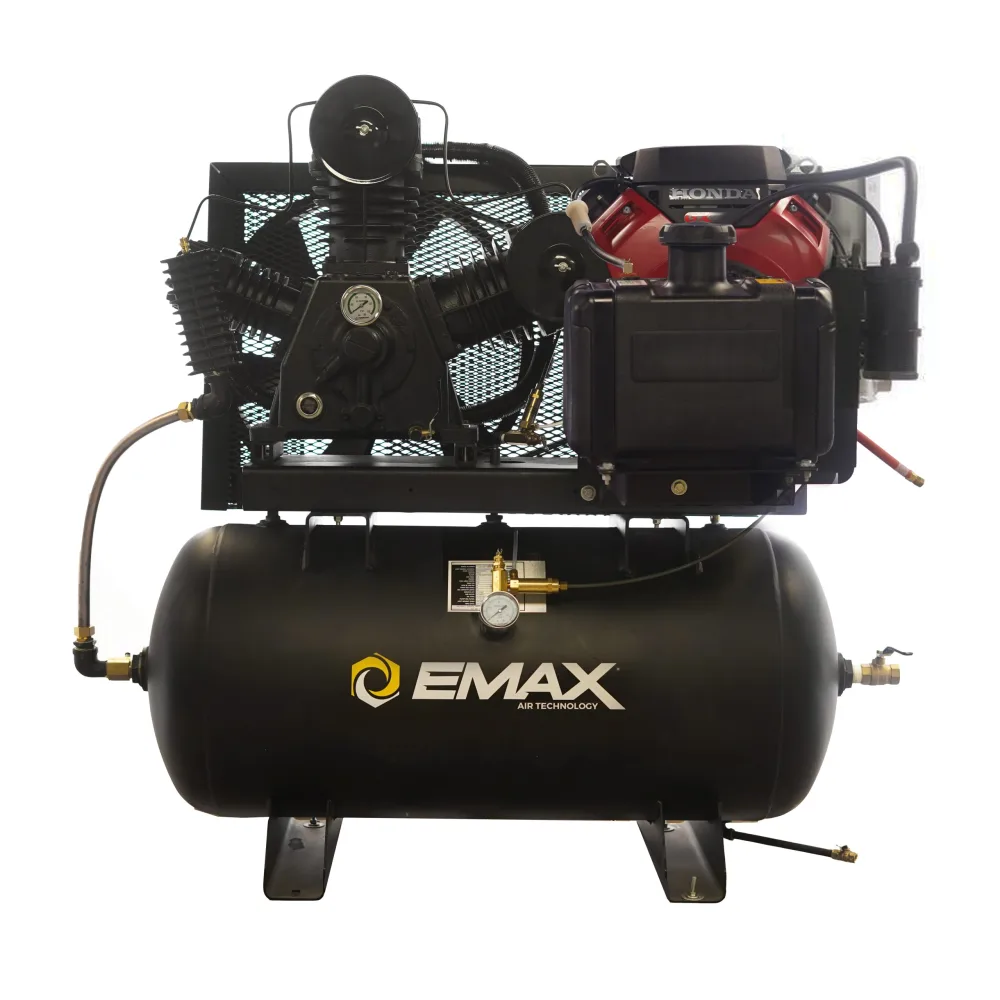

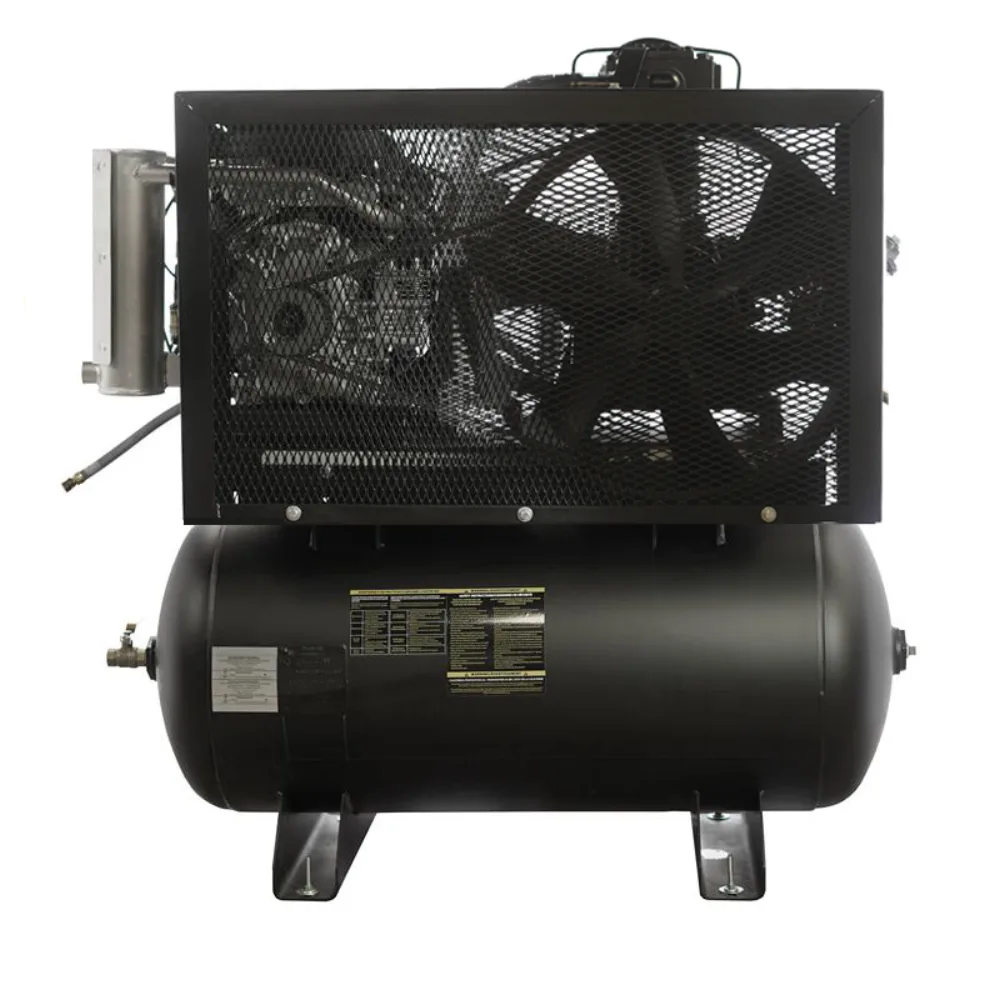

This 24HP two-stage delivers 58 CFM at 175 PSI from a 60-gallon horizontal tank, on a pressure-lubricated pump.
All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.
| HP | 24 |
|---|---|
| CFM | 58.00 |
| Brands | EMAX |
| Max PSI | 175.00 |
| Oil U/M | Quarts |
| Pump RPM | 820.00 |
| Motor RPM | 3600.00 |
| Pump Type | Pressure |
| Tank Size | 60 |
| Belt Count | 2 |
| Drive Type | Gas |
| Pump Model | APP3Y2062TP |
| Pump Riser | Yes |
| Pump Stage | 2 |
| Start Type | FIXED |
| Tank Drain | Manual |
| Outlet Size | 3/4" |
| Service Kit | EFKIT032 |
| Crated Width | 48 |
| Oil Capacity | 3.00 |
| Crated Height | 62 |
| Crated Length | 85 |
| Crated Weight | 906.00 |
| Belt Tensioner | Yes |
| Certifications | ASME,CRN,EPA |
| Compressor Type | Piston |
| Tank Orientation | Horizontal |
| Estimated Pump Life (Hours) | 70000.00 |
