Silent Air Industrial Plus 15HP 3CYL 57CFM 3- Phase 208V 2-Stage 120 Gal. Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto DrainSilent Air Industrial Plus 15HP 3CYL 57CFM 3- Phase 208V 2-Stage 120 Gal. Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto Drain, view 2Silent Air Industrial Plus 15HP 3CYL 57CFM 3- Phase 208V 2-Stage 120 Gal. Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto Drain, view 3Silent Air Industrial Plus 15HP 3CYL 57CFM 3- Phase 208V 2-Stage 120 Gal. Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto Drain, view 4Silent Air Industrial Plus 15HP 3CYL 57CFM 3- Phase 208V 2-Stage 120 Gal. Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto Drain, view 5
Emax
ESP15V120Y3-208

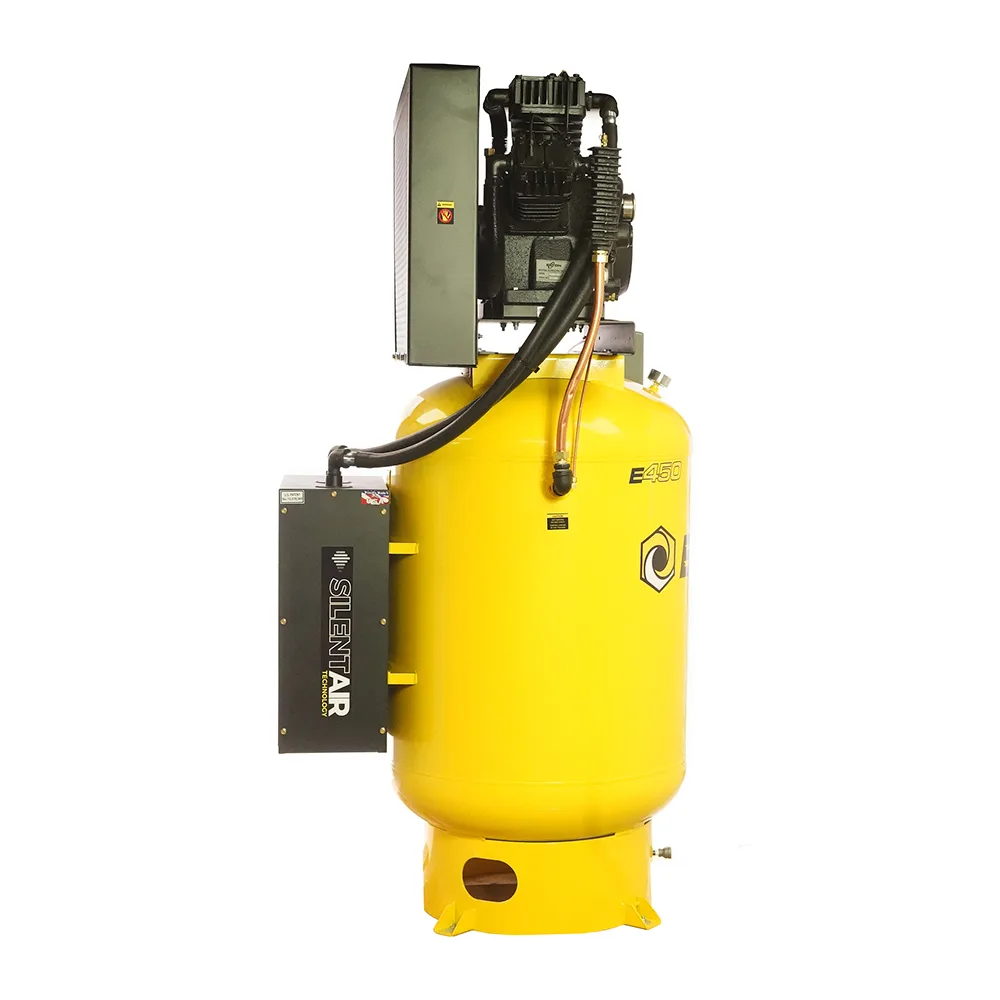

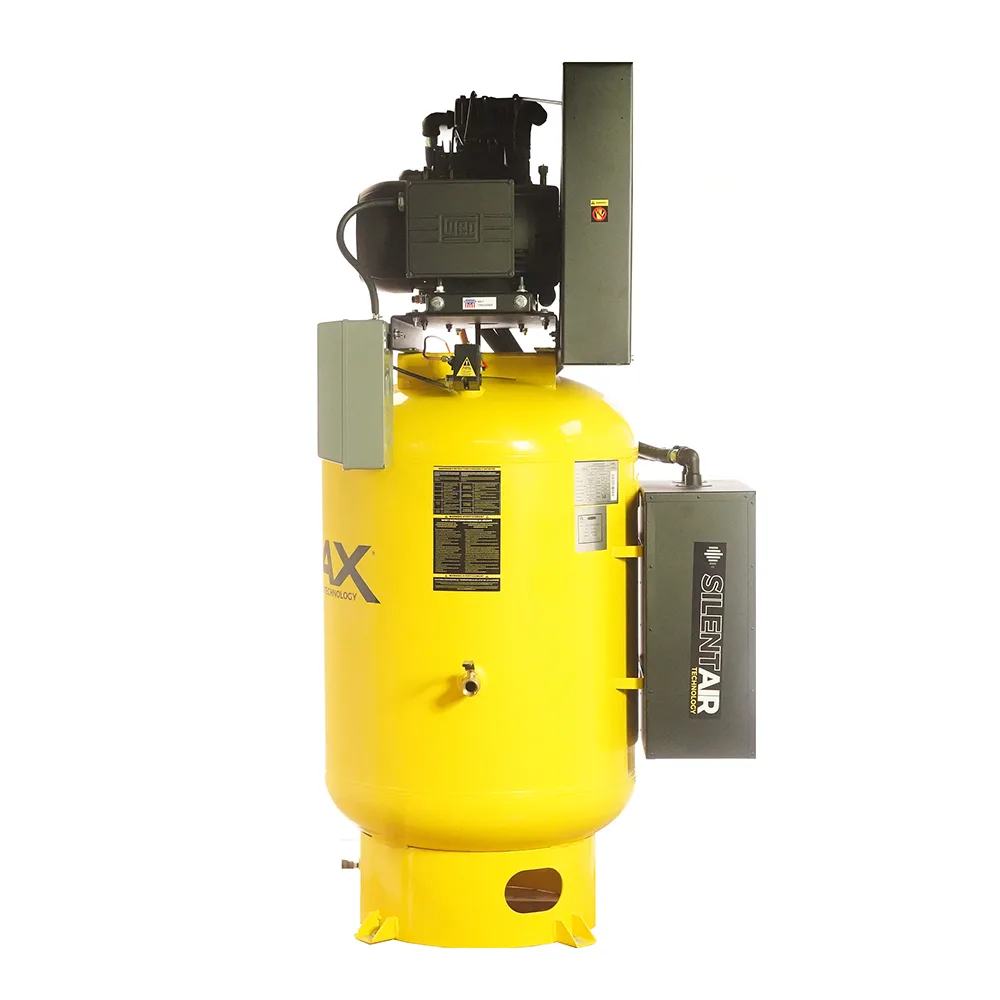

Silent Air Industrial Plus 15HP 3CYL 57CFM 3- Phase 208V 2-Stage 120 Gal. Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto Drain

$8,702free shipping
Call to order: 803-981-3651

Straight answers on sizing, phase, and freight: five minutes on the phone, no runaround.

Covered by the manufacturer's written warranty, not a warranty of ours. For a free copy before you buy, call 803-981-3651.

15
HP
57
CFM
175
Max PSI
  • 15 HP · 230V 3-phase
  • 57 CFM
  • 120-gal vertical tank

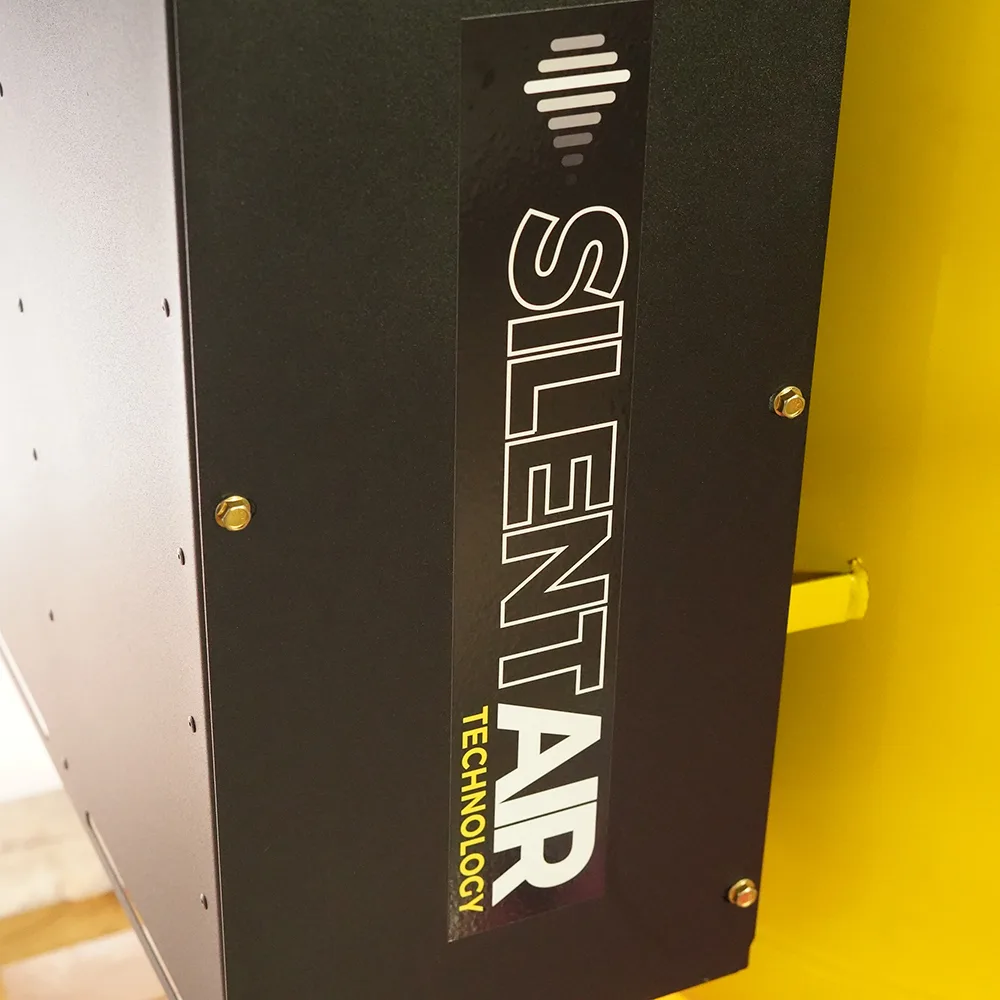

  • Silent Air™ low-noise package

About this unit

This 15HP three-phase two-stage delivers 57 CFM at 175 PSI from a 120-gallon vertical tank, on a pressure-lubricated pump.

About the Silent Air Industrial Plus series

Everything the Silent Air line does, built out for constant duty. The pump rides a raised mounting plate for 360-degree airflow cooling, a dual-timer auto drain keeps moisture out of the tank on a schedule you set, and the dual-bolt belt tensioner makes belt adjustments precise without pry bars.

The Emax piston pump

All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.

Full specifications

37 specs
HP15
CFM57
Phase3
BrandsEMAX
Max PSI175.00
Oil U/MQuarts
Pump RPM815.00
Motor RPM1740.00
Pump TypePressure
Tank Size120
Belt Count2
Drive TypeElectric

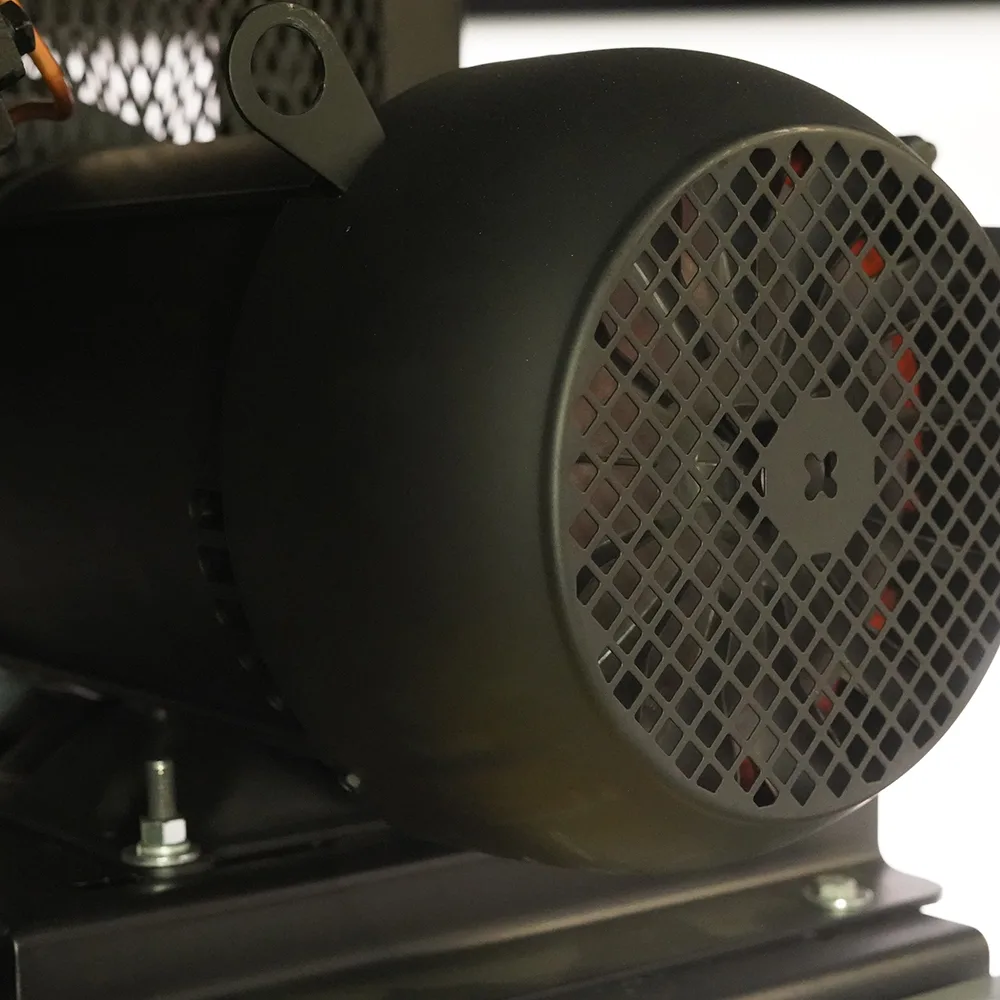

Motor TypeTEFC
Pump ModelAPP3Y2062TP
Pump RiserYes
Pump Stage2
Silent AirYes
Start TypeFIXED
Tank DrainAutomatic
Mag StarterYes
Outlet Size1"
Service KitEFKIT009AWB
Crated Width46"
Oil Capacity3.00
Crated Length48"
Crated Weight1287.00
Belt TensionerYes
CertificationsETL,ASME,CRN
Compressor TypePiston
Uncrated Weight1138.00
Voltage +/- 10%230
Tank OrientationVertical
Locked Rotor Amps237.00
Peak Starting Amps237.00
Recommended Breaker70.00
FLA + 1.15 Service Factor41.90
Estimated Pump Life (Hours)70000.00
