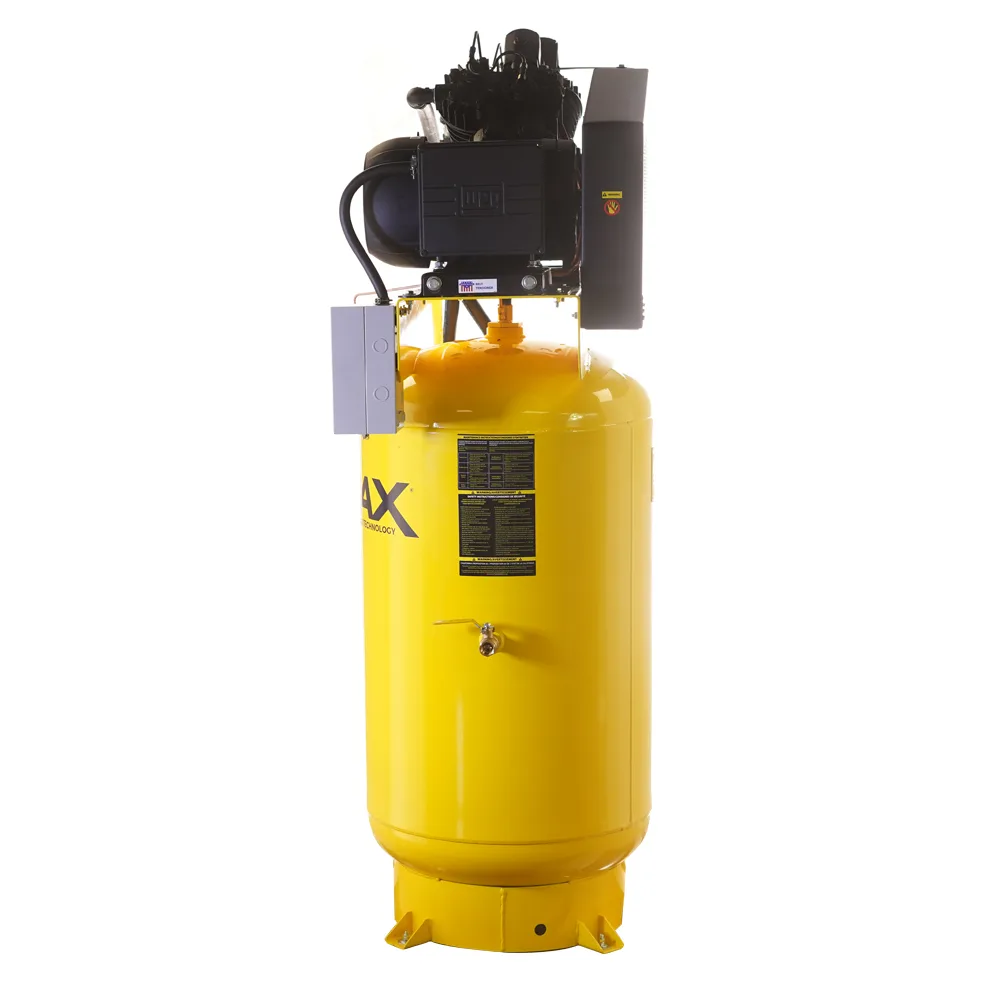

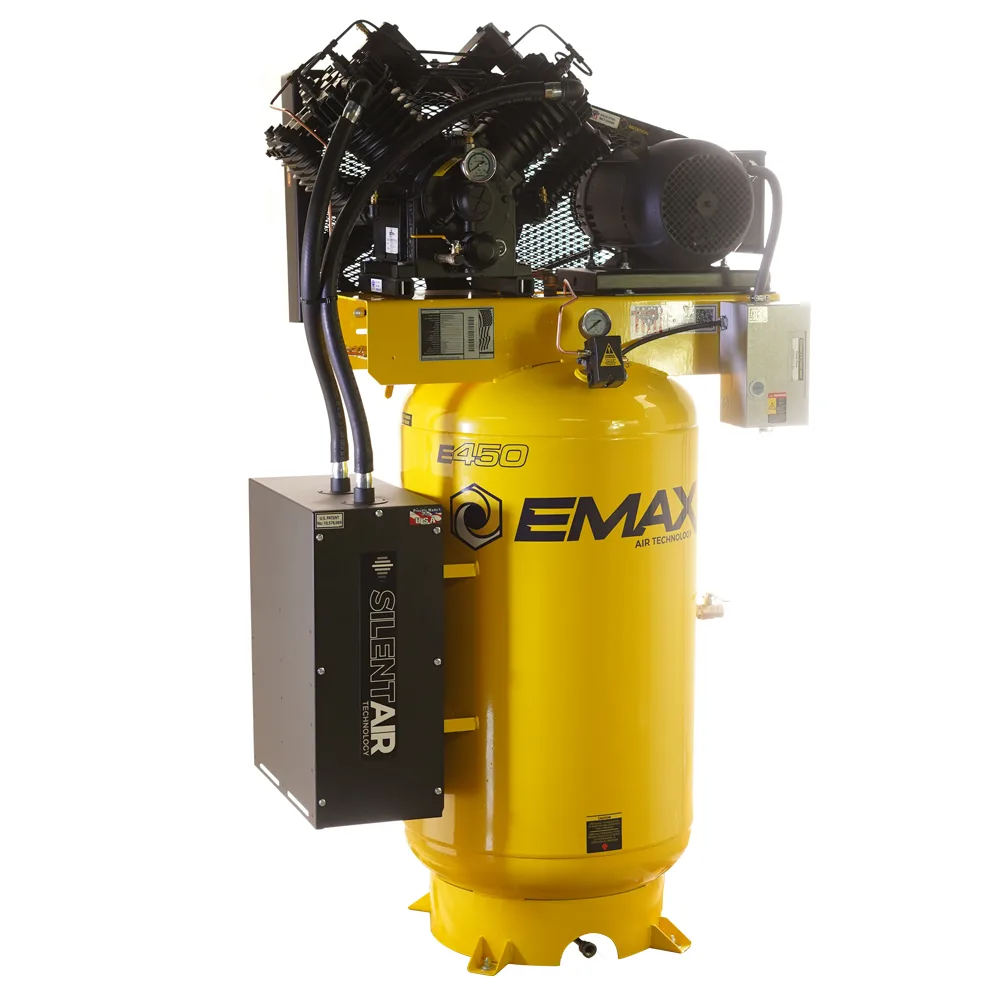

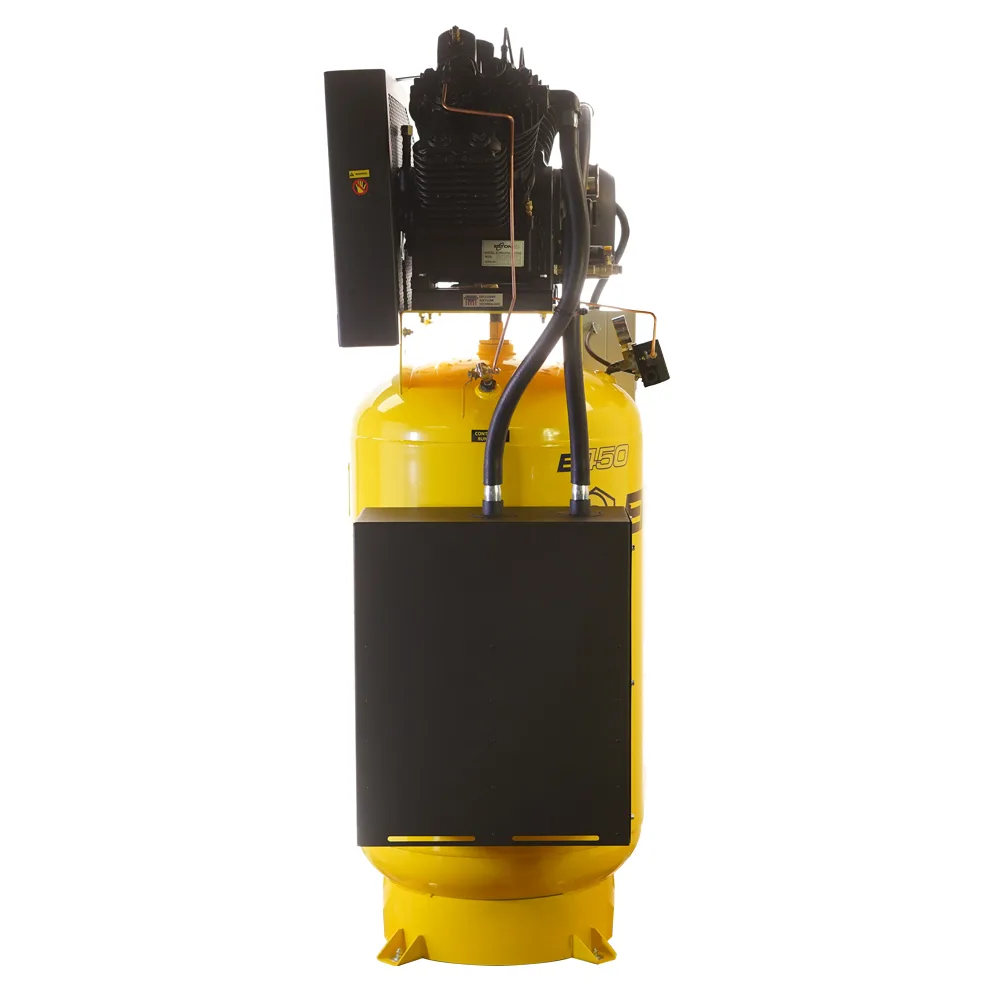

This 10HP three-phase two-stage delivers 38 CFM at 175 PSI from a 120-gallon vertical tank, on a pressure-lubricated pump.

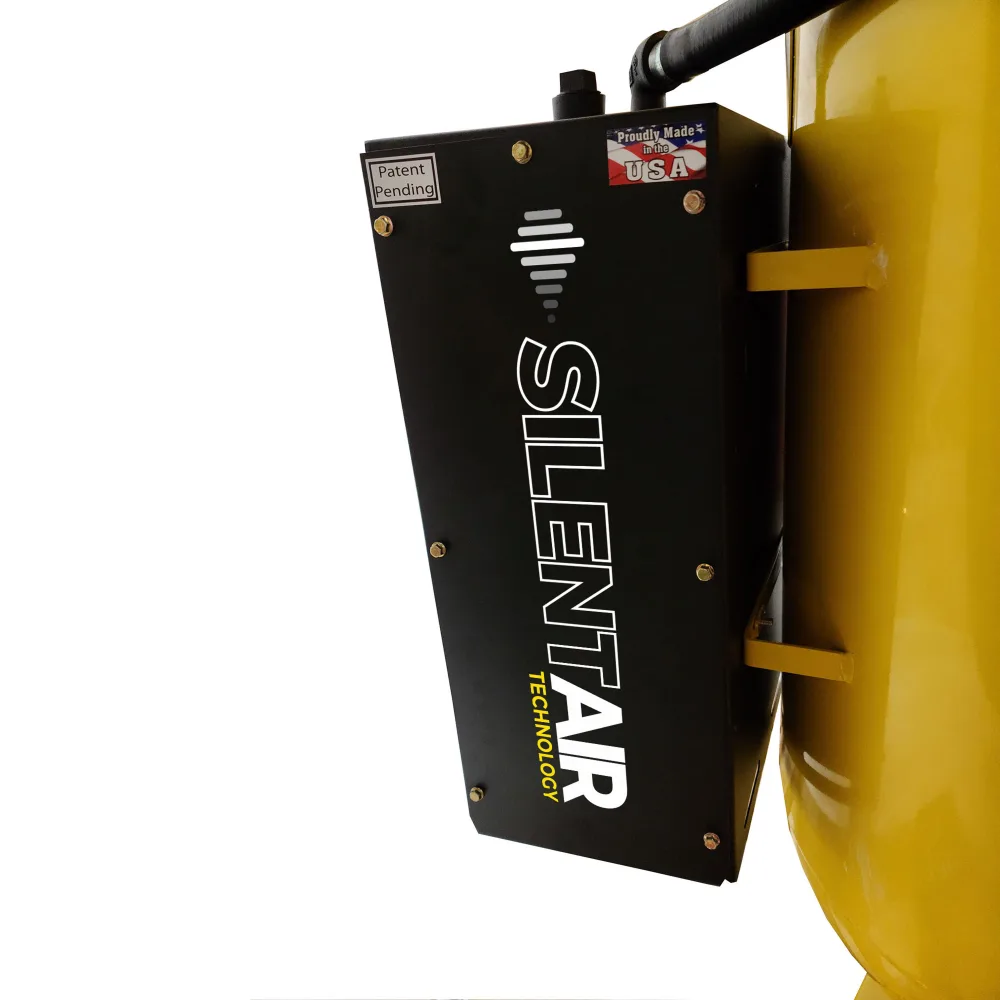

Emax's patented Silent Air silencer system makes these some of the quietest compressors on the market, up to 50% quieter, running at or below conversation volume. The intake system pairs noise-reducing baffle plates with up to 1000% more filtration than standard setups. And unlike enclosed cabinet designs, there's no cabinet in the way when it's time to service it.
All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.
| HP | 10 |
|---|---|
| CFM | 38.00 |
| Phase | 3 |
| Brands | EMAX |
| Max PSI | 175.00 |
| Oil U/M | Quarts |
| Pump RPM | 730.00 |
| Radiator | Yes |
| Motor RPM | 1740.00 |
| Pump Type | Pressure |
| Tank Size | 120 |
| Belt Count | 2 |
| Drive Type | Electric |
| Motor Type | TEFC |
| Pump Model | APP4V1043TP |
| Pump Riser | Yes |
| Pump Stage | 2 |
| Silent Air | Yes |
| Start Type | FIXED |
| Tank Drain | Automatic |
| Mag Starter | Yes |
| Outlet Size | 1" |
| Service Kit | EFKIT008AWBS |
| Oil Capacity | 0.02 |

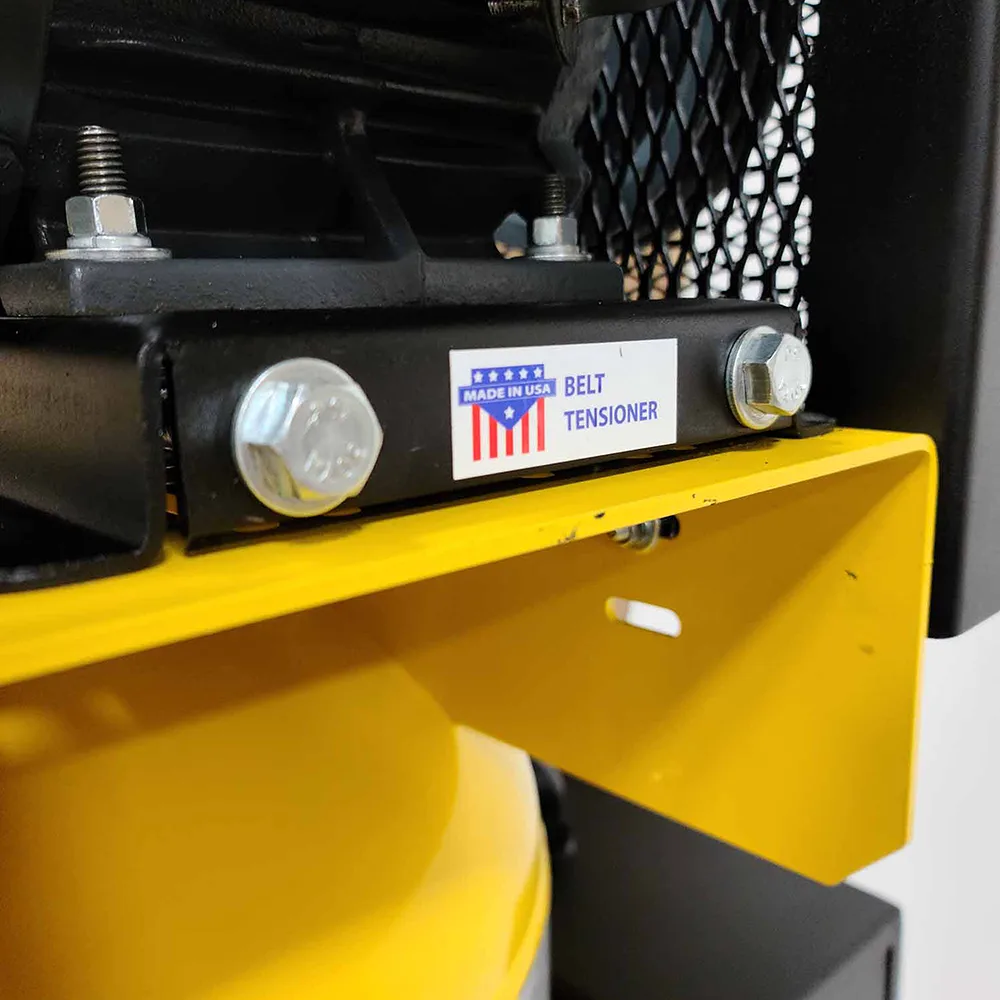

| Belt Tensioner | Yes |
| Certifications | ETL,ASME,CRN |
| Compressor Type | Piston |
| Uncrated Weight | 913.00 |
| Voltage +/- 10% | 460 |
| Tank Orientation | Vertical |
| Locked Rotor Amps | 85.40 |
| Peak Starting Amps | 85.40 |
| Recommended Breaker | 25.00 |
| FLA + 1.15 Service Factor | 14.10 |
| Estimated Pump Life (Hours) | 70000.00 |
