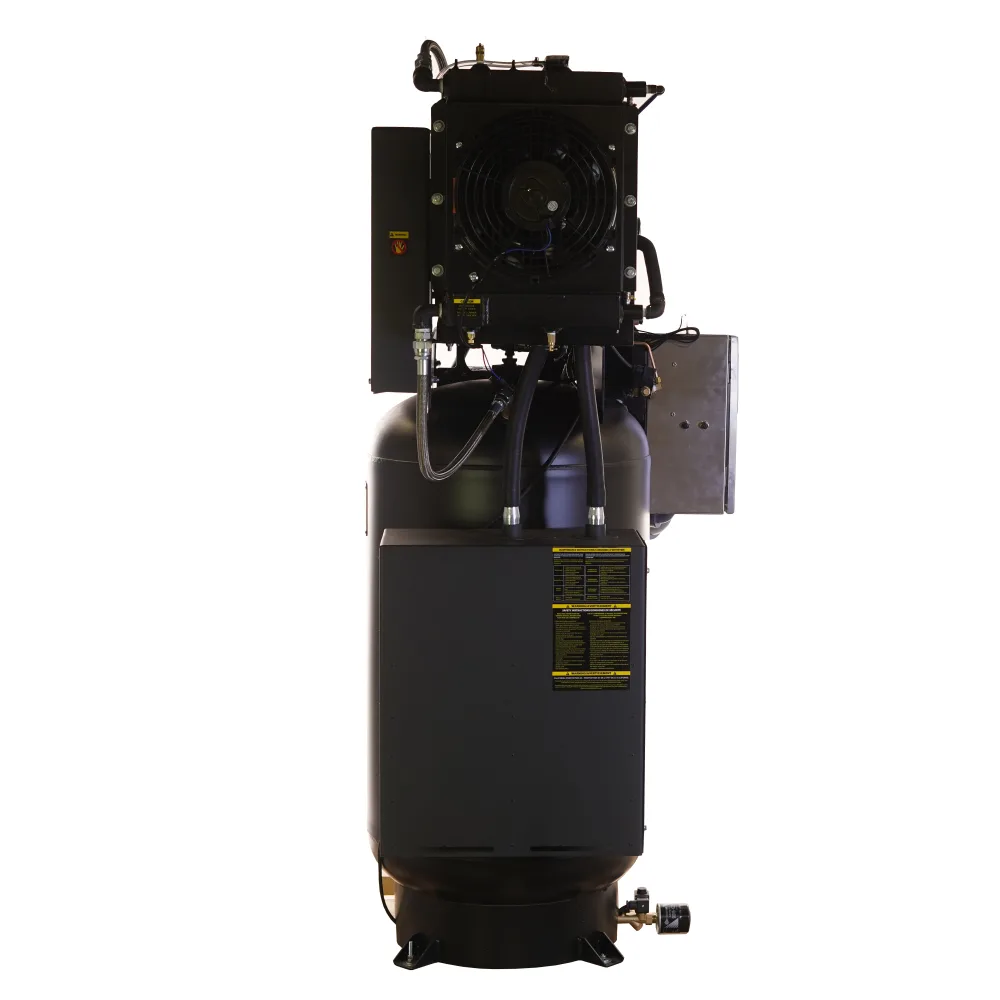

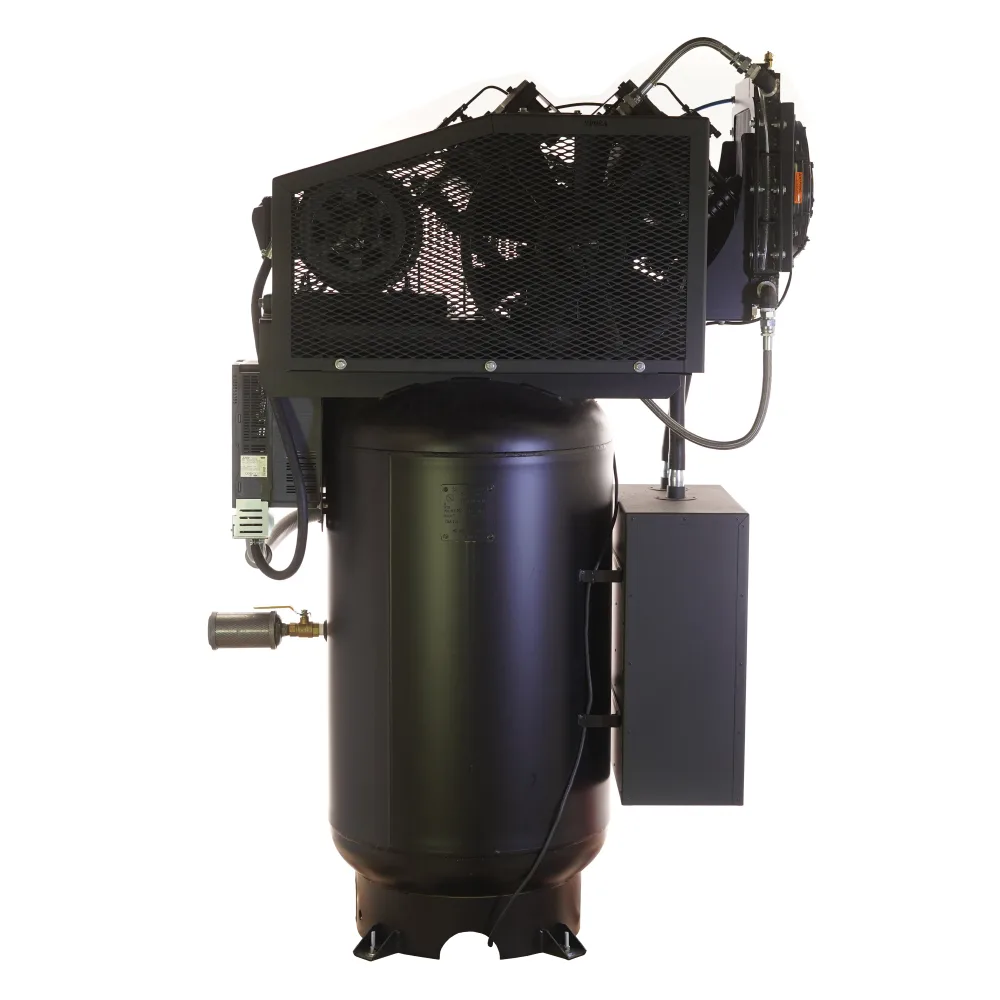

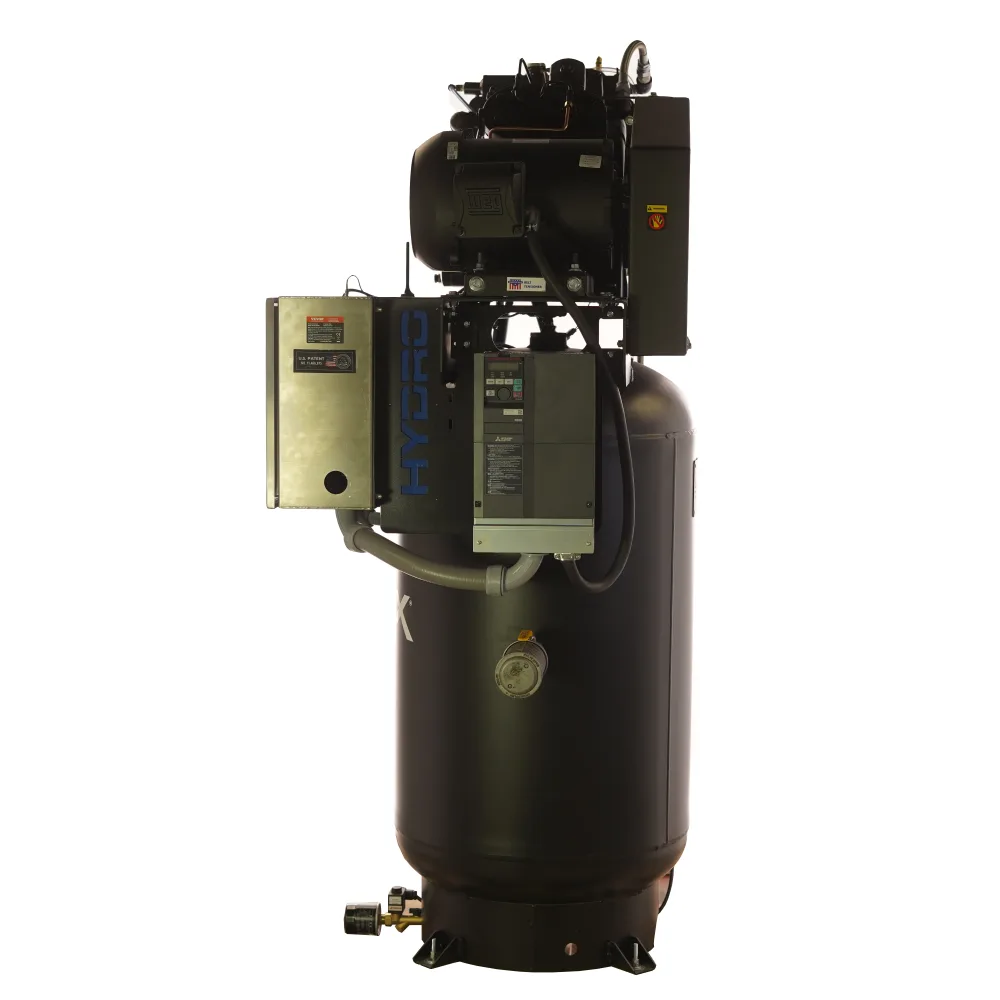

This 10HP three-phase two-stage delivers 38 CFM at 175 PSI from an 80-gallon vertical tank, on a pressure-lubricated pump.

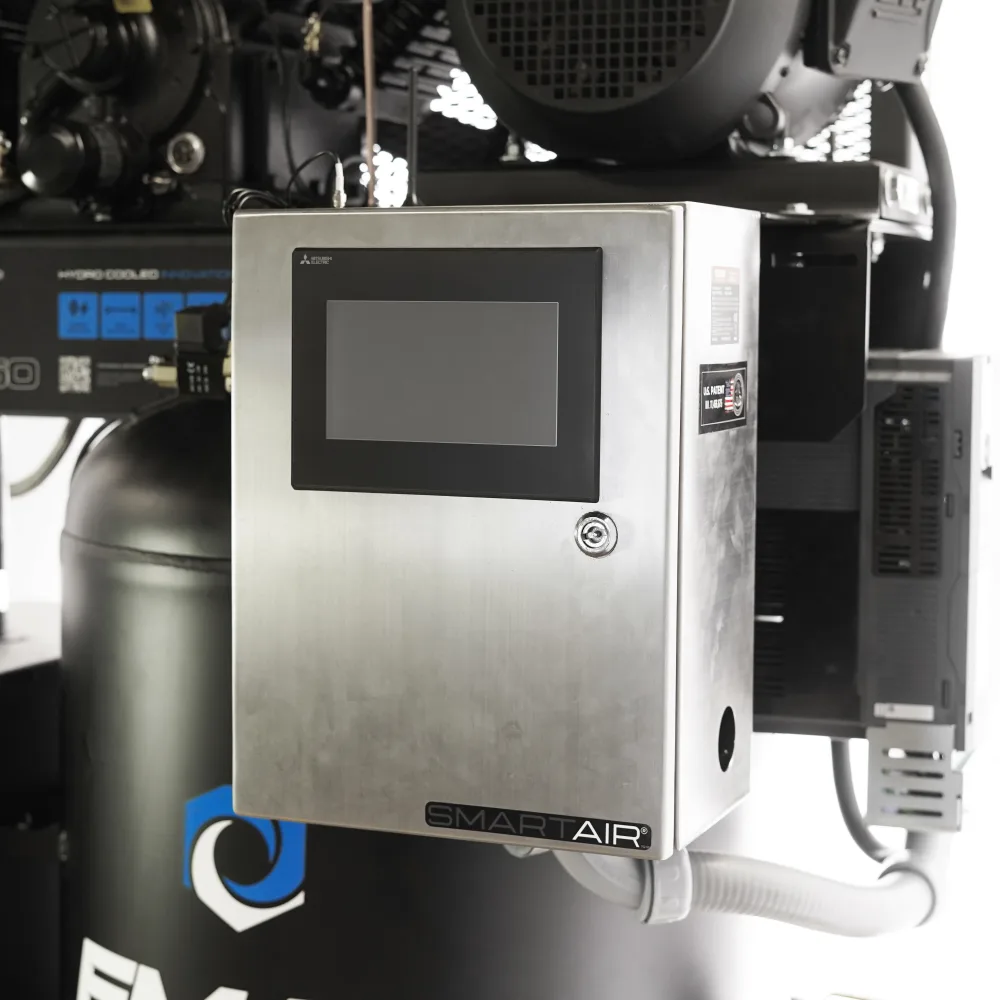

The digital PLC gives you pressure adjustment from 70 to 175 PSI, maintenance alarms for filters and oil, and programmable start/stop for every day of the week, all controllable over WiFi or ethernet from your phone. It even tracks your duty cycle so you can see the energy savings in dollars.

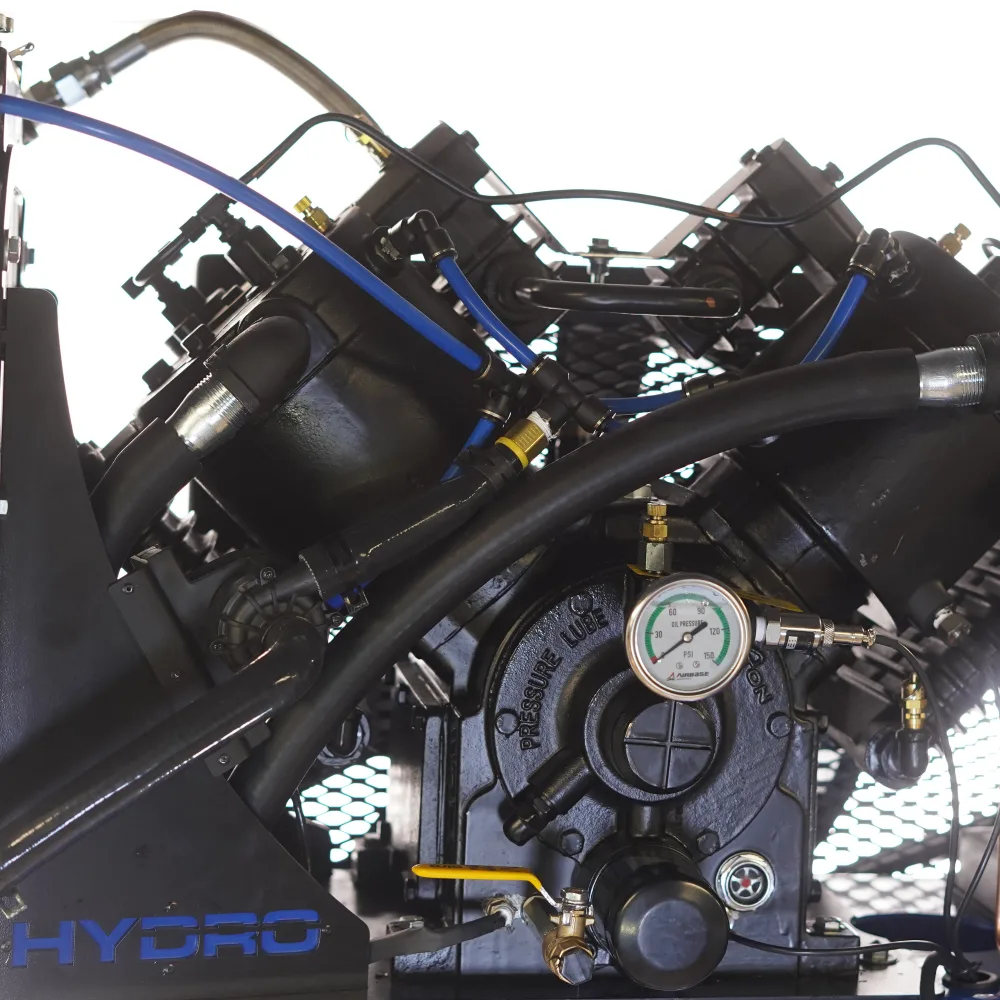

All cast iron where it counts: crankcase, cylinders, heads, crankshaft, rods, and high-pressure pistons. Pressure lubrication feeds oil straight to the bearings through rifle-drilled cranks and rods with a spin-on automotive-style filter, the four-ring piston design seals tighter and carries less oil, and CNC-machined disc valves outlast the reed valves most competitors run.
| HP | 10 |
|---|---|
| CFM | 38.00 |
| Phase | 3 |
| Brands | EMAX |
| Max PSI | 175.00 |
| Oil U/M | Quarts |
| Pump RPM | 730.00 |
| Motor RPM | 1740.00 |
| Pump Type | Pressure |
| Smart Air | Yes |
| Tank Size | 80 |
| Belt Count | 2 |
| Drive Type | Electric |
| Motor Type | TEFC |
| Pump Model | APP4V1043TP |
| Pump Riser | Yes |
| Pump Stage | 2 |
| Silent Air | Yes |
| Start Type | VARIABLE |
| Tank Drain | Automatic |
| Outlet Size | 3/4" |
| Service Kit | EFKIT008AWBS |
| Crated Width | 46" |
| Oil Capacity | 2.00 |
| Crated Height | 87" |
| Crated Length | 48" |
| Belt Tensioner | Yes |
| Certifications | ASME, CRN |
| Uncrated Width | 25 |
| Compressor Type | Piston |
| Uncrated Height | 75 |
| Uncrated Length | 39 |
| Voltage +/- 10% | 230 |
| Tank Orientation | Vertical |
| Locked Rotor Amps | 171.00 |
| Peak Starting Amps | 171.00 |
| Recommended Breaker | 50.00 |
| FLA + 1.15 Service Factor | 27.90 |
| Estimated Pump Life (Hours) | 80000.00 |
